点击放大查看

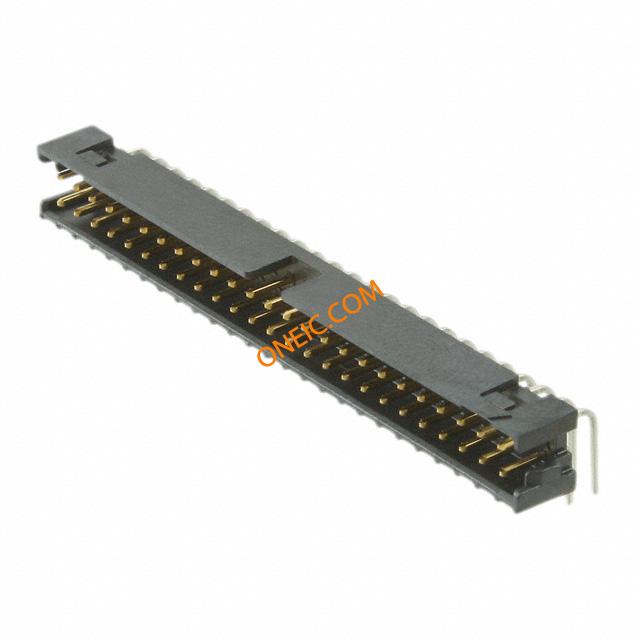

159150-5002
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 50POS R/A GOLD IDC Header 2mm 50w conn RATH centre bump HEADER, 2MM, R/A, THT, 50WAY CONNHEADER2MM50POSR/AGOLD |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 159 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 2 mm |
| Weight | 0.025 | Packaging | Tray |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced Liquid Crystal Polymer | Primary Material | Rectangular |
| Number of Contacts | 50 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 50 | Contact Length - Mating | 0.153" (3.89mm) |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Right Angle |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 159 | Manufacturer | 159Series |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
