158150-1100
| Manufacturer | |
| Description | 2MM WMS50PADHCBTRAY30AU CABLE RIBBON SKT 2MM 50POS GOLD IDC Socket 2mm 50 way conn centre bump Headers & Wire Housings 158150-1100=2MM WMS 50P\ADH\CB\TRAY\30AU SOCKET, 2MM, IDC, 50WAY IDCSocket2mm50wayconncentrebump 3M 158 系列 2行 50路 2mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Part # Aliases | 05111196817 80001251364 | Standard Package | 252 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 158 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 0.079" (2.00mm) |
| Weight | 0.025 | Packaging | Tray |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Socket | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced PET | Cable Termination | IDC |
| Number of Contacts | 50 | Contact Termination | :IDC / IDT |
| Number of Positions | 50 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Gender | Female | Series | 158 |
| Features | Feed Through | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

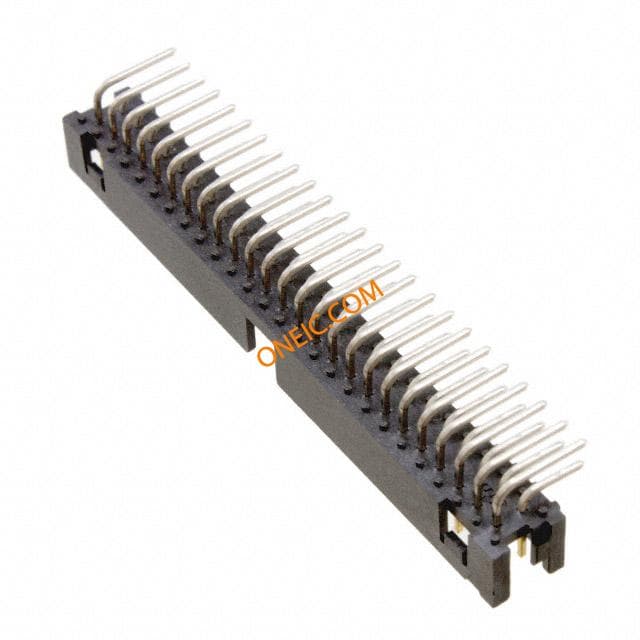

159250-5002
3m interconnect solutions
2MMHDR15AU50POSRATHCB.112TL CONN HEADER 2MM 50POS R/A GOLD Headers & Wire Housings 2MMHDR/15AU/50POS RATH/CB/.112TL

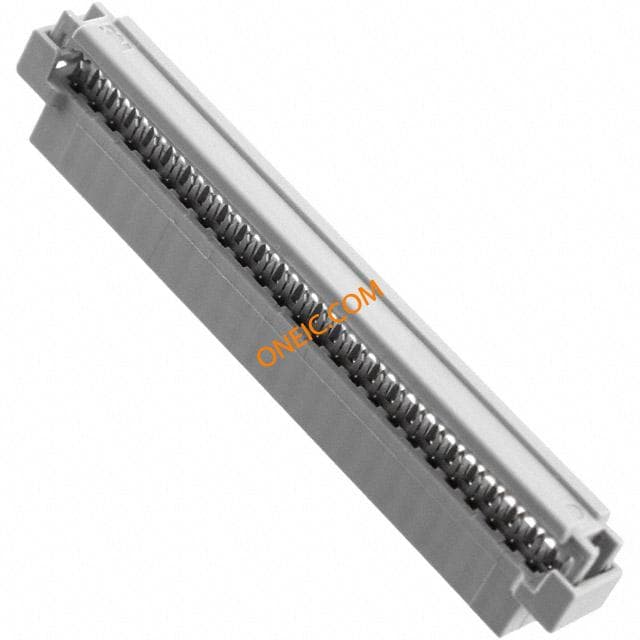

158250-0120
3m interconnect solutions
Conn IDC Connector SKT 50 POS 2mm IDT RA Cable Mount Sword CABLE RIBBON SKT 2MM 50POS GOLD IDC Socket 2mm 50 way conn centre bump Headers & Wire Housings 50P IDC SOCKET RIBBON CABLE MNT Au SOCKET, 2MM, IDC, 50WAY CABLERIBBONSKT2MM50POSGOLD 3M 158 系列 2行 50路 2mm节距 直角 母 IDC 连接器 , 电缆安装

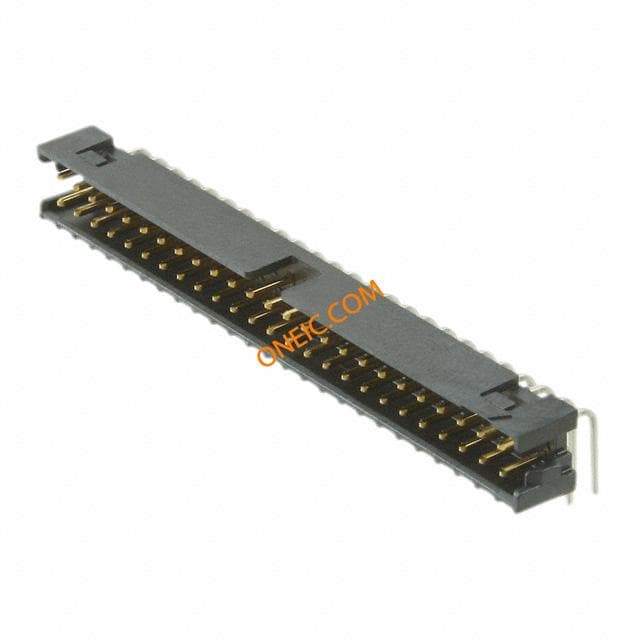

159150-5002
3m interconnect solutions
Conn Shrouded Header HDR 50 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 50POS R/A GOLD IDC Header 2mm 50w conn RATH centre bump HEADER, 2MM, R/A, THT, 50WAY CONNHEADER2MM50POSR/AGOLD
159150-2002
3m interconnect solutions
Conn Shrouded Header HDR 50 POS 2mm Solder ST SMD CONN HEADER 2MM 50POS VRT AU SMD IDC Header 2mm 50w conn VSMT centre bump HEADER, 2MM, VERT, SMT, 50WAY CONNHEADER2MM50POSVERTAUSMD
159150-6002
3m interconnect solutions
Conn Shrouded Header HDR 50 POS 2mm Solder ST Thru-Hole Headers & Wire Housings 50P VERTICAL HEADER THRU-HOLE, Au CONN HEADER 2MM 50POS VERT GOLD IDC Header 2mm 50w conn VTH centre bump HEADER, 2MM, VERT, THT, 50WAY CONNHEADER2MM50POSVERTGOLD
3448-15850
3m interconnect solutions
STRRLF2MM158SRS50POS CABLE STRAIN RELIEF 2MM 50POS Headers & Wire Housings STRAIN RELIEF FOR 50P CNCTR 3M(TM)RIBBONCABLESOCKET,158SERIES,STRAINRELIEF,50POSITION
159250-2002
3m interconnect solutions
2MMHDR15AU50POSVSMTCB.112TL CONN HEADER 2MM 50POS VRT AU SMD Headers & Wire Housings 2MMHDR/15AU/50POS VSMT/CB/.112TL

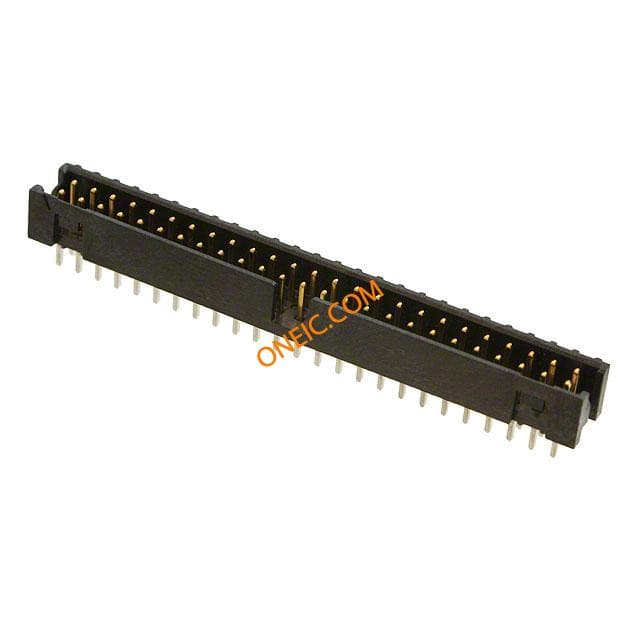

159250-6002
