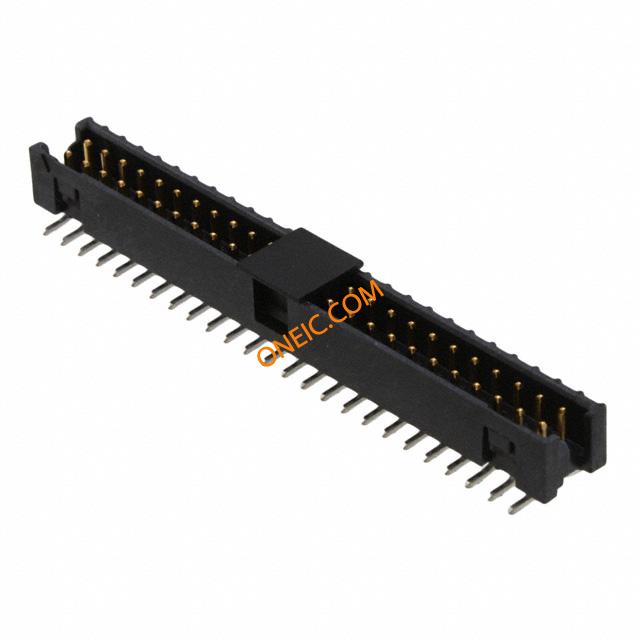

159150-2002
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2mm Solder ST SMD CONN HEADER 2MM 50POS VRT AU SMD IDC Header 2mm 50w conn VSMT centre bump HEADER, 2MM, VERT, SMT, 50WAY CONNHEADER2MM50POSVERTAUSMD |
| Category |
Business
| Other Names | 3M9706CT | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 159 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 2 mm |
| Weight | 0.025 | Packaging | Tape & Reel (TR) |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced Liquid Crystal Polymer | Primary Material | Rectangular |
| Number of Contacts | 50 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 50 | Contact Length - Mating | 0.153" (3.89mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 159 | Manufacturer | 159Series |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

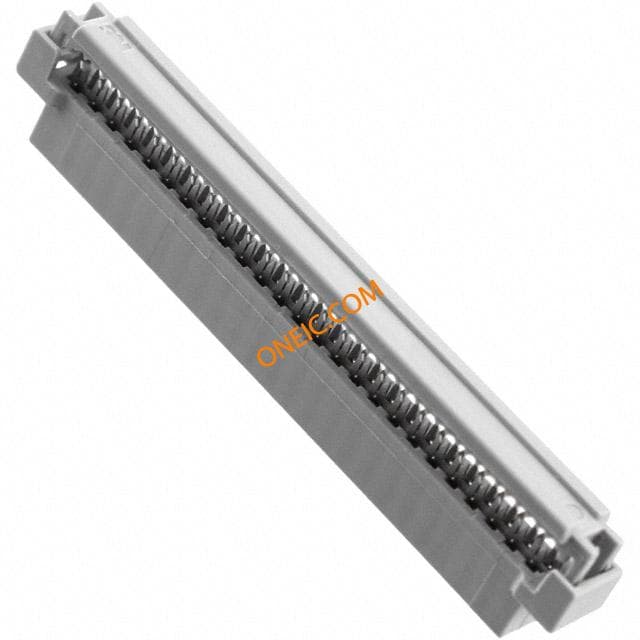

158250-0120
3m interconnect solutions
Conn IDC Connector SKT 50 POS 2mm IDT RA Cable Mount Sword CABLE RIBBON SKT 2MM 50POS GOLD IDC Socket 2mm 50 way conn centre bump Headers & Wire Housings 50P IDC SOCKET RIBBON CABLE MNT Au SOCKET, 2MM, IDC, 50WAY CABLERIBBONSKT2MM50POSGOLD 3M 158 系列 2行 50路 2mm节距 直角 母 IDC 连接器 , 电缆安装

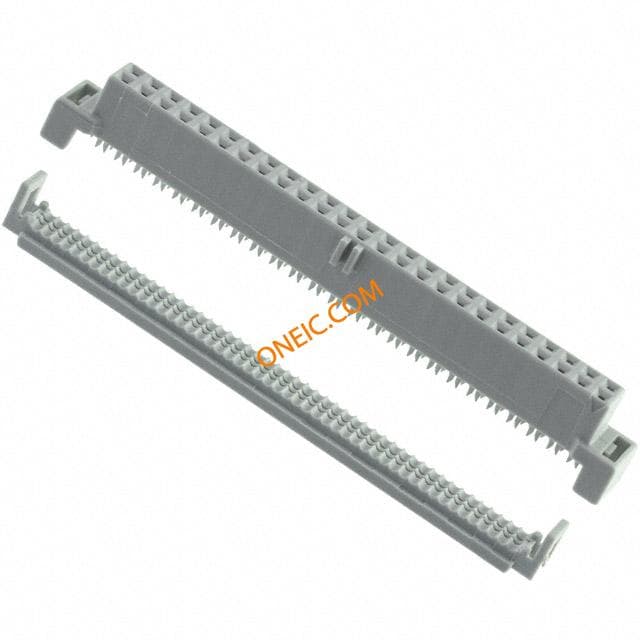

158250-012015
3m interconnect solutions
2MM WMS50PPRASMBLCBSWRD15AU CABLE RIBBON SKT 2MM 50POS GOLD Headers & Wire Housings 2MM WMS/50P/PRASMBL/ CB/SWRD/15AU

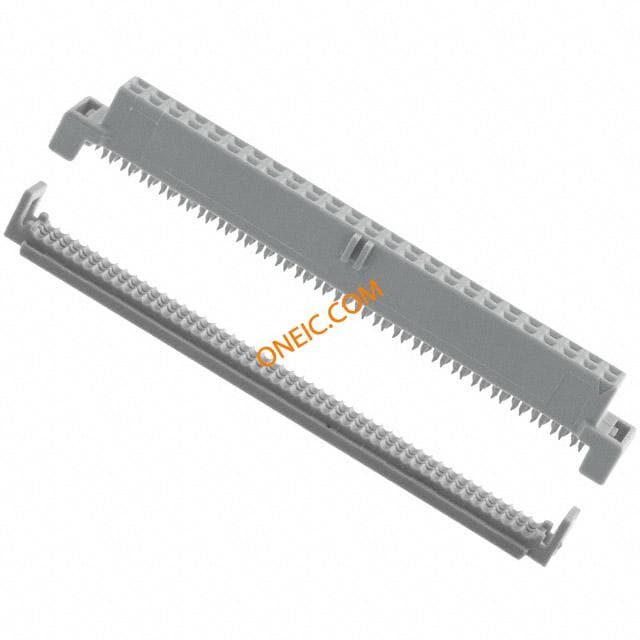

158350-211015
