switchcraft- Industrial Circular Connectors

Founded in 1946, Switchcraft, Inc. is headquartered in Chicago, Illinois, USA. The company is a leading manufacturer of high-performance electronic connectors, switches, jacks, and cable assemblies. Its products serve critical industries including audio/video, telecommunications, medical, military, transportation, and instrumentation. Switchcraft offers over 5,000 standard products while specializing in quick-turn, low-volume custom-engineered solutions. The company operates a 185,000 sq ft Chicago facility for electrical and electromechanical components and a 35,000 sq ft Conxall facility for custom cable assemblies. Key product lines include XLR connectors, phono jacks, sealed connectors, toggle switches, pushbutton switches, and harsh-environment circular connectors. Switchcraft is ISO 9001 certified, with products meeting UL, CSA, VDE, and military specifications. The brand is renowned in professional audio and broadcast markets for rugged, reliable connectivity. Acquired by HEICO Corporation in 2011, Switchcraft benefits from expanded engineering and global resources. For over 75 years, Switchcraft has set industry standards for durable connectivity components in demanding app

Industrial Circular Connectors - 型号列表

32 parts in total

Mfr Part #	Quantity Available	Price	Product Category	Standard Package	RoHS	EU RoHS	Voltage - Supply	Current Rating (Max)	Packaging	Orientation	Termination	Mounting Type	Connector Type	Contact Finish	Fastening Type	Mounting Style	Number of Contacts	Number of Positions	Shell Size - Insert	Shell Material, Finish	Type	Gender	Factory Pack Quantity	Voltage Rating	Length - Overall	Termination Style	Series	Product Type	Number of Ports	Shell Plating	Lead Time	Subcategory	Diameter	Features	Contact Material	Other Names	Color	Housing Material	Depth	Operating Temperature	Height	Voltage - Input (Min)	Cable Exit	Contact Type	Angle of Throw	Material Flammability Rating	Panel Thickness	Primary Material	Dielectric Material	Manufacturer	Application Specifics	Tradename	Rad Hardened	Contact Form	1st Contact Gender	Main Purpose	Output Configuration
TB6M Switchcraft	135	1: $135.728	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Mini (Tiny) XLR	1.5A	Bulk	Keyed	Solder Cup	Panel Mount	Receptacle, Male Pins	Electro-Tin	Latch Lock	Chassis (Panel)	6	6	Mini XLR	Copper, Nickel Plated	Mini XLR Connector	M	100	125VAC	17.9	Solder	TB	Connectors	1	Nickel	44 Days	Connector Audio and Video	11.9	Mounting Hardware	Copper Alloy	-	Black	Copper Alloy	-	-55°C ~ 85°C	-	125VAC	Internal	Pin	Straight	UL94-V0	0.25"	XLR	Thermoplastic	TB	Commercial	-	-	-	-	-	-
AAA3FBAUZ Switchcraft	43	1: $130.424	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Cable Mount	Plug, Female Sockets	Gold	Latch Lock	Cable	3	3	XLR	Zinc Die Cast, Black Chrome Plated	XLR Connector	F	100	125VAC	73.13	Solder	AAA	Connectors	1	-	-	-	19.69	Strain Relief	Copper Alloy	-	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 C4F Switchcraft	80	1: $247.18	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	10A	Bulk	Keyed	Solder	Panel Mount	Plug, Female Sockets	Silver	Latch Lock	Chassis (Panel)	4	4	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	F	25	125VAC	36.91	Solder	C	Connectors	1	Nickel	20 Days	Connector Audio and Video	36.53	-	-	-	Satin Nickel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A5FL Switchcraft	27	1: $236.232	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	7.5A	Bulk	Keyed	Solder	Cable Mount	Plug, Female Sockets	Silver	Latch Lock	Cable	5	5	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	F	-	125VAC	82.55	Solder	A	Connectors	1	Nickel	44 Days	Connector Audio and Video	-	Cable Clamp, Strain Relief	Brass	-	-	Zinc Die Cast	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SL413MX Switchcraft	10	1: $122.419	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	5A	Bulk	2	Solder Lug	Cable Mount	Plug, Male Pins	Silver	Threaded	Cable	3	3	SL-3M	Copper, Nickel Plated	Audio	M	100	-	-	Solder	Slim-Line	Connectors	1	Nickel	-	-	-	Cable Clamp, Strain Relief	Copper Alloy	-	-	Copper Alloy	-	-	-	-	-	-	-	-	-	-	-	-	-	Slim-Line	-	-	-	-	-
3 B3M Switchcraft	10	25: $115.532	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder Cup	Panel Mount	Receptacle, Male Pins	Silver	Push-Pull	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	M	25	125VAC	27.78	Solder	B	Connectors	1	Nickel	30 Days	Connector Audio and Video	28.18	-	-	SC1006	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 C5M Switchcraft	10	100: $137.156	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	7.5A	Bulk	Keyed	Solder Cup	Panel Mount	Receptacle, Male Pins	Silver	Push-Pull	Chassis (Panel)	5	5	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	M	25	125VAC	27.79	Solder	-	Connectors	1	Nickel	44 Days	Connector Audio and Video	36.32	-	-	SC1026	Satin Nickel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

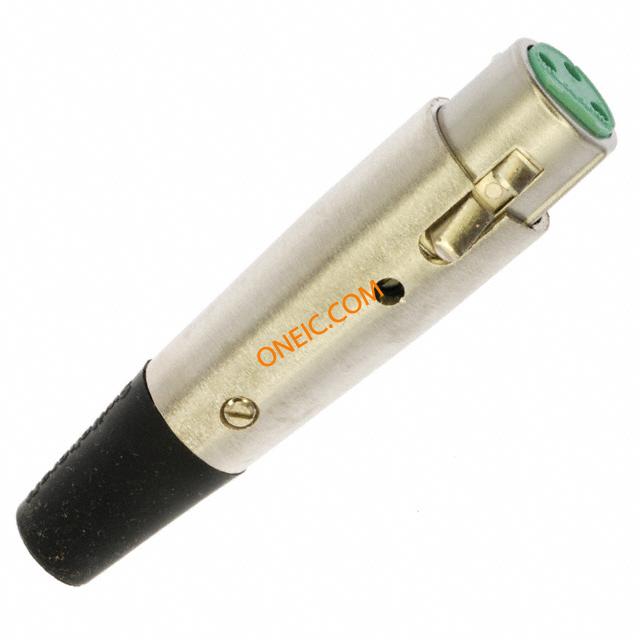

3 A3F Switchcraft	32	1: $59.568	XLR Connectors	100	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Cable Mount	Plug, Female Sockets	Silver	Latch Lock	Cable	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	F	100	125VAC	82.55	Solder	A	Connectors	1	Nickel	44 Days	Connector Audio and Video	-	Cable Clamp, Strain Relief	Brass	SC1001	-	Zinc Die Cast	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 D3M Switchcraft	10	25: $47.26	XLR Connectors	25	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder Cup	Panel Mount	Receptacle, Male Pins	Gold	Push-Pull	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	M	25	125VAC	27	Solder	D	Connectors	1	Nickel	44 Days	Connector Audio and Video	-	-	-	SC1010	-	-	36.9	-	36.32	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E3MSC Switchcraft	50	50: $51.3386	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder Cup	Panel Mount	Receptacle, Male Pins	Silver	Push-Pull	Chassis (Panel)	3	3	XLR	Die Cast, Nickel Plated	Audio	M	50	125 V	26	Solder	E	Connectors	1	Nickel	-	-	-	Shielded	Copper Alloy	-	-	Thermoplastic	32	-55°C ~ 85°C	31	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
09GM4MX Switchcraft	48	1: $73.236	DIN Connectors	1	Lead free / RoHS Compliant	Compliant	DIN	3A	Bulk	3	Solder	Cable Mount	Plug, Male Pins	Tin	Push-Pull	Cable	4	4	DIN (210 Degree)	Zinc Die Cast, Nickel Plated	Circular DIN	PL	70	34VDC	63.3 mm	Crimp	DIN	-	-	Nickel	-	-	17 mm	Cable Clamp, Shielded	-	-	Gray	-	-	-	-	-	Yes	4Signal	210	-	-	-	-	-	-	-	No	4Signal	M	Cable Clamp, Shielded	Free Hanging (In-Line)
4 A3M Switchcraft	1750	10: $76.9522	XLR Connectors	100	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Cable Mount	Receptacle, Male Pins	Silver	Latch Holder	Cable	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	M	100	125VAC	70.61	Solder	A	Connectors	1	Nickel	44 Days	Connector Audio and Video	18.8	Cable Clamp, Strain Relief	Brass	SC1003	-	Zinc Die Cast	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 B3F Switchcraft	14	1: $531.4581	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Panel Mount	Plug, Female Sockets	Silver	Latch Lock	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	F	50	125VAC	36.9	Solder	B	Connectors	1	Nickel	44 Days	Connector Audio and Video	36.51	-	-	SC1005	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 D3F Switchcraft	646	1: $62.288	XLR Connectors	25	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Panel Mount	Plug, Female Sockets	Gold	Latch Lock	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	F	25	125VAC	27	Solder	D	Connectors	1	Nickel	44 Days	Connector Audio and Video	-	-	-	SC1009	-	-	36.9	-	36.32	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TA4MLX Switchcraft	763	1: $93.568	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Mini (Tiny) XLR	5A	Bulk	Keyed	Solder	Cable Mount	Receptacle, Male Pins	Silver	Latch Lock	Cable	4	4	Mini XLR	Copper, Nickel Plated	Mini XLR Connector	M	100	125VAC	51.4	Solder	TA	Connectors	1	Nickel	-	-	10.5	Strain Relief	Copper Alloy	-	-	Copper Alloy	-	-55°C ~ 85°C	-	125VAC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E3FSCB Switchcraft	30	1: $65.416	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder Cup	Panel Mount	Plug, Female Sockets	Silver	Latch Lock	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Black Plated	Audio	F	50	125 V	26	Solder	E	Connectors	1	-	-	-	-	Shielded	Copper Alloy	-	Black	Thermoplastic	35.3	-55°C ~ 85°C	31	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 A3MB Switchcraft	16	1: $76.092	XLR Connectors	100	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Cable Mount	Receptacle, Male Pins	Silver	Latch Holder	Cable	3	3	XLR	Zinc Die Cast, Black Plated	XLR Connector	M	100	125VAC	70.61	Solder	A	Connectors	1	-	20 Days	Connector Audio and Video	18.8	Cable Clamp, Strain Relief	Brass	SC1004	Black	Zinc Die Cast	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 C3F Switchcraft	216	1: $175.712	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Panel Mount	Plug, Female Sockets	Silver	Latch Lock	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	F	25	125VAC	36.91	Solder	C	Connectors	1	Nickel	20 Days	Connector Audio and Video	36.53	-	-	SC1007	Satin Nickel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 C3M Switchcraft	500	5: $150.7968	XLR Connectors	25	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder Cup	Panel Mount	Receptacle, Male Pins	Silver	Push-Pull	Chassis (Panel)	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	M	25	125VAC	27.79	Solder	C	Connectors	1	Nickel	44 Days	Connector Audio and Video	36.32	-	-	SC1008	Satin Nickel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 R3MZ Switchcraft	10	1: $90.168	XLR Connectors	1	Lead free / RoHS Compliant	Compliant	Standard XLR	15A	Bulk	Keyed	Solder	Cable Mount	Receptacle, Male Pins	Silver	Latch Holder	Cable	3	3	XLR	Zinc Die Cast, Nickel Plated	XLR Connector	M	50	125VAC	40.25	-	R	Connectors	1	Nickel	-	-	-	Strain Relief	Copper Alloy	-	-	-	27.5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
