TB6M
| Manufacturer | |
| Description | XLR Connectors 6 PIN PANEL RECPT Conn Mini XLR Connector M 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port CONN RCPT 6POS PNL MNT PIN MINI Receptacle;PanelMount;Solder |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Subcategory | Connector Audio and Video |
| Product Category | XLR Connectors | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Mini (Tiny) XLR |
| Current Rating (Max) | 1.5A | Voltage - Input (Min) | 125VAC |
Mechanical
| Color | Black | Diameter | 11.9 |
| Packaging | Bulk | Cable Exit | Internal |
| Orientation | Keyed | Termination | Solder Cup |
| Contact Type | Pin | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Electro-Tin |
| Fastening Type | Latch Lock | Mounting Style | Chassis (Panel) |
| Panel Thickness | 0.25" | Contact Material | Copper Alloy |
| Housing Material | Copper Alloy | Length - Overall | 17.9 |
| Primary Material | XLR | Termination Style | Solder |
| Number of Contacts | 6 | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | Mini XLR |
| Shell Material, Finish | Copper, Nickel Plated | ||
Product Info
| Type | Mini XLR Connector | Gender | M |
| Series | TB | Features | Mounting Hardware |
| Manufacturer | TB | Product Type | Connectors |
| Number of Ports | 1 | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
PDF Document
Online Document
Online Document
Similar Parts

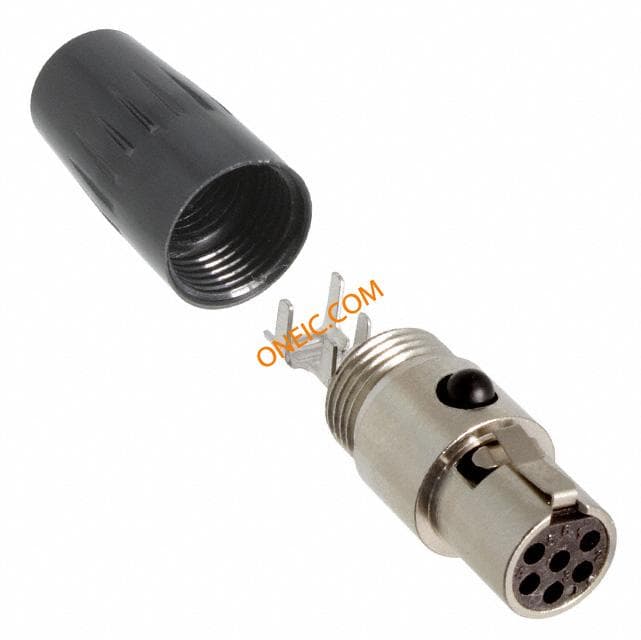

TA6FLX
