B3F
| Manufacturer | |
| Description | XLR Connectors 3 PIN FEMALE RECEPT Conn XLR Connector F 3 POS ST Panel Mount 3 Terminal 1 Port CONN AUDIO 3POS FEMALE PANEL MNT XLR Receptacle; Female; 1.109 in.; 1.43 in. XLRReceptacle;Female;1.109in.;1.43in. |
| Category |
Business
| Lead Time | 44 Days | Other Names | SC1005 |
| Subcategory | Connector Audio and Video | Product Category | XLR Connectors |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Standard XLR |
| Current Rating (Max) | 15A | ||
Mechanical
| Diameter | 36.51 | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Latch Lock | Mounting Style | Chassis (Panel) |
| Length - Overall | 36.9 | Termination Style | Solder |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | XLR | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
Product Info
| Type | XLR Connector | Gender | F |
| Series | B | Product Type | Connectors |
| Number of Ports | 1 | ||
Documents & Media
Similar Parts

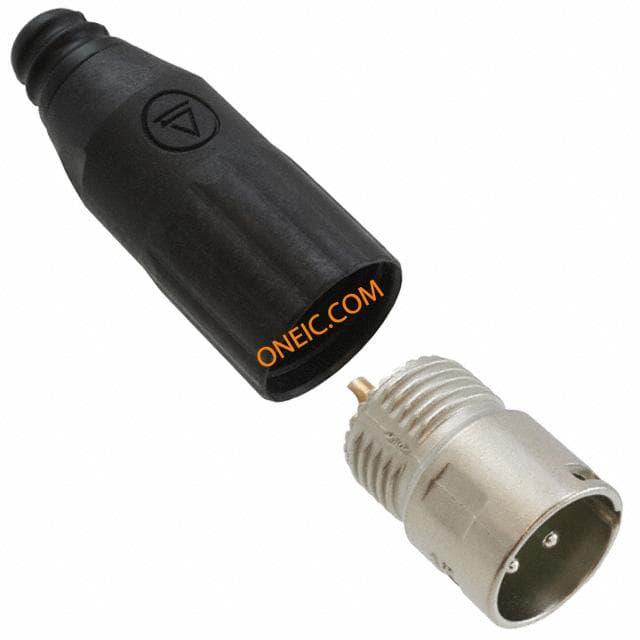

AAA3MPZ
Switchcraft
XLR Connectors 3 PIN MALE SILVER PLSTIC HANDLE NICKEL Conn XLR Connector M 3 POS ST Cable Mount 3 Terminal 1 Port CONN RCPT MALE PLAS 3PIN SILVER XLR Male receptacle; 3-pin silver contact; plastic housing CONNECTOR, XLR, PLUG, 3POS XLRMalereceptacle,3-pinsilvercontact,plastichousing
AAA3MZ
Switchcraft
XLR Connectors 3 PIN MALE SILVER METAL HANDLE NICKEL Conn XLR Connector M 3 POS ST Cable Mount 3 Terminal 1 Port CONN RCPT MALE 3PIN SILVER XLR Male receptacle; 3-pin silver contact; metal housing PLUG, XLR, FREE, METAL, 3POLE XLRMalereceptacle,3-pinsilvercontact,metalhousing

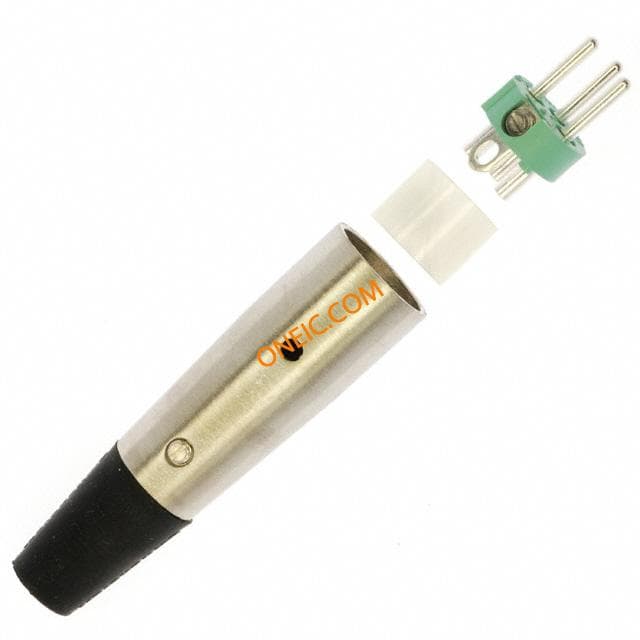

A3M
Switchcraft
XLR Connectors 3 PIN MALE PLUG Conn XLR Connector M 3 POS ST Cable Mount 3 Terminal 1 Port CONN RCPT AUDIO 3POS MALE XLR Plug; Straight Male Cord; 3; Zinc; Nickel Plated; Brass; Silver Plated XLRPlug;StraightMaleCord;3;Zinc,NickelPlated;Brass,SilverPlated

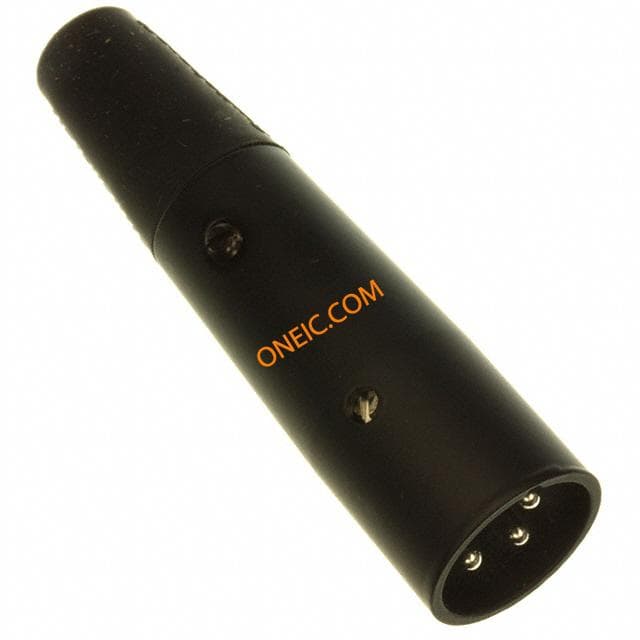

A3MB
Switchcraft
XLR Connectors 3 PIN MALE PLUG Conn XLR Connector M 3 POS ST Cable Mount 3 Terminal 1 Port CONN RCPT AUDIO 3POS MALE BLACK XLR Plug; Straight Male Cord; 3; Zinc; Nickel Plated; Brass; Silver Plated XLRPlug;StraightMaleCord;3;Zinc,NickelPlated;Brass,SilverPlated

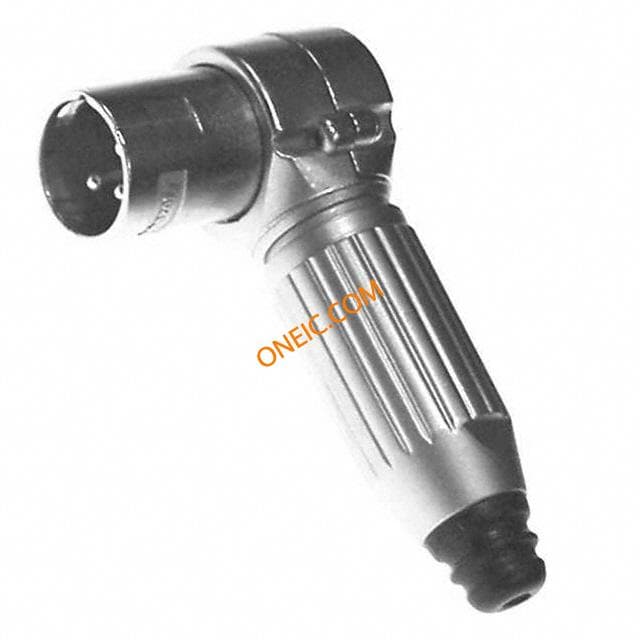

R3MZ
