7447745100
| Manufacturer | |
| Description | 固定インダクタ WE-PD2 Inductor 10uH 100kHz 1.70A INDUCTOR POWER 10UH 1.7A SMD Inductor SMD WE-PD2 5820 10uH 1,6A Fixed Inductors WE-PD2 Inductor 10uH 100kHz 1.70A CHOKE, SMD, 10UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 1.7A Idc |
| Category |
Business
| Product | SMD Power Inductors | Other Names | 732-1320-2 |
| Standard Package | 2,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Unshielded | Tolerance | ±20% |
| Inductance | 10µH | Range deg/s | :WURTH ELEKTRONIK - WE-PD2 Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 130 mOhm Max | Current Rating (Max) | 1.7A |
| DC Resistance (DCR) (Max) | :0.13ohm | Frequency - Self Resonant | 28MHz |
| Current - Saturation (Isat) | :1.6A | Current Saturation - Series | 1.6A |
| Resistance - Initial (Ri) (Min) | 130mΩ | Current - On State (It (RMS)) (Max) | :1.7A |
Mechanical
| Depth | 5.8mm | Width | 5.2 mm |
| Height | 2mm | Length | 5.2mm |
| Weight | 0.0002 | Packaging | Tape & Reel (TR) |
| Shielding | Unshielded | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | Non Standard | Material - Core | Ferrite |
| Size / Dimension | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Termination Style | SMD/SMT |
| Dimensions - Overall | :5.8mm x 5.2mm x 2mm | Height - Seated (Max) | 0.091" (2.30mm) |
Product Info
| Type | Wirewound | Series | WE-PD2 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
LT3598EUF#PBF
Analog Devices, Inc.
LED DRVR 60Segment 3.3V/5V/9V/12V/15V/18V/24V 24-Pin QFN EP IC LED DRIVR WHITE BCKLGT 24-QFN LT3598EUF#PBF, LCD Display Driver 60-Segments, 3.2 to 30V, 24-Pin QFN24 IC, LED DRIVER, 6CH, 30MA, 24QFN IC, LED DRIVER, BOOST, QFN-24 60段 LCD 显示驱动器, 3.2 → 30 V, 24引脚 QFN封装
LT3580EMS8E#PBF
Analog Devices, Inc.
Conv DC-DC Single Inv/Step Up 2.5V to 32V 8-Pin MSOP EP IC REG BOOST INV SEPIC 2A 8MSOP LT3580EMS8E#PBF, Boost Converter, Inverting, Step Up 2.8A Adjustable, 42V, 2200kHz, 8-Pin MSOP EP IC BOOST/INVERTING DC/DC CONVERTER MSOP8 SW REG, 2A, BOOST/ INVERT, 8MSOP Linear Technology 反相、升压 转换器, 2.8A, 可调输出, -0.4 → 42 V, 2200 kHz, 8针 MSOP封装

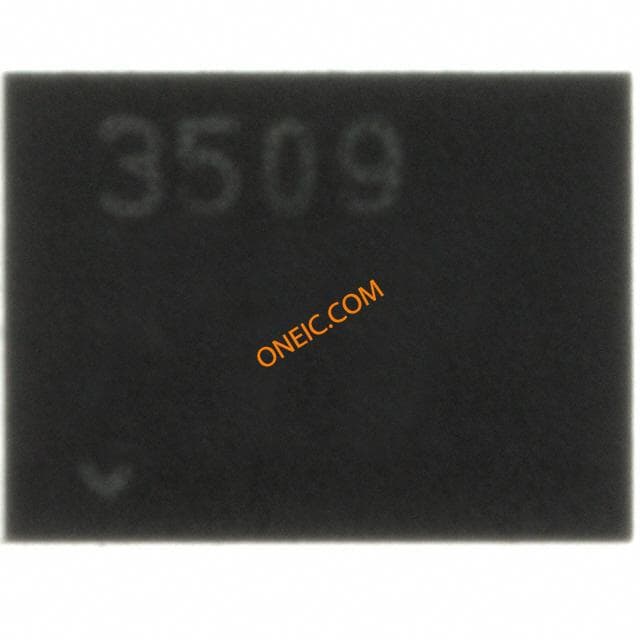

LT3509EDE#PBF
