LT3598EUF#PBF
| Manufacturer | |
| Description | LED DRVR 60Segment 3.3V/5V/9V/12V/15V/18V/24V 24-Pin QFN EP IC LED DRIVR WHITE BCKLGT 24-QFN LT3598EUF#PBF, LCD Display Driver 60-Segments, 3.2 to 30V, 24-Pin QFN24 IC, LED DRIVER, 6CH, 30MA, 24QFN IC, LED DRIVER, BOOST, QFN-24 60段 LCD 显示驱动器, 3.2 → 30 V, 24引脚 QFN封装 |
| Category |
Business
| Other Names | LT3598EUFPBF | Standard Package | 91 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Dimming | :PWM | Frequency | 200kHz ~ 2.5MHz |
| Efficiency | :90% | Display Type | :LED |
| Voltage Rating | 3.2 → 30 V | Current - Output | :30mA |
| Current - Supply | 5 mA | Voltage - Supply | 3 V ~ 30 V |
| Number of Outputs | 6 | Frequency - Switching | :2.5MHz |
| Voltage - Input (Min) | 44V | Voltage - Supply (Min) | 3.2 V |
| Resistor Matching Ratio | ±1.5% | Current - Output High, Low | 2000 mA |
| Constant Current Load - Max | Yes | Voltage - Continuous Operating (Max) (MCOV) | :30V |
Mechanical
| Width | 4mm | Height | 0.7mm |
| Length | 4mm | Weight | 0.0002 |
| Packaging | Tube | Case Color | :QFN |
| Lead Style | No Lead | Termination | :SMD |
| Mounting Type | Surface Mount | Number of Pins | :24 |
| Package / Case | 24-WFQFN Exposed Pad | Package Cooled | QFN24 |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | QFN EP |
| Size / Dimension | 4 x 4 x 0.7mm | Number of Positions | 24 |
| Supplier Device Package | 24-QFN Exposed Pad (4x4) | ||
Product Info
| Type | White LED | Topology | PWM, Step-Up (Boost) |
| Base Unit | :3598 | Number of Segments | 60 |
| Internal Connection | Yes | Application Specifics | :Automotive, Display |
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
7447745100
Wurth Electronics

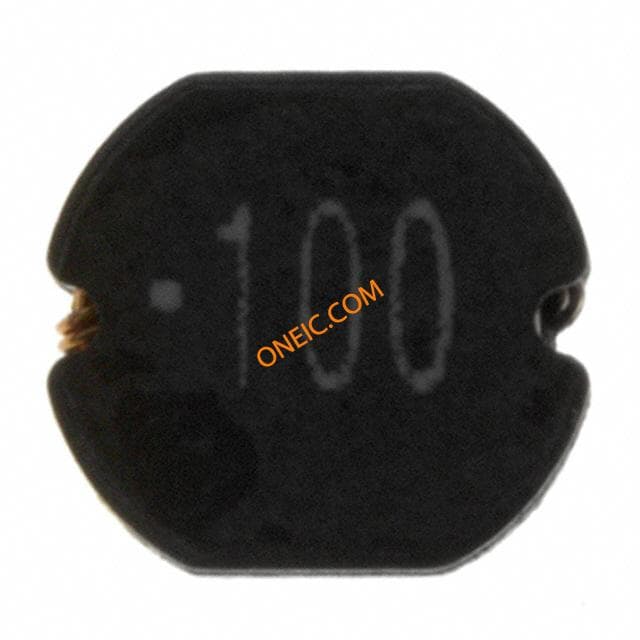

固定インダクタ WE-PD2 Inductor 10uH 100kHz 1.70A INDUCTOR POWER 10UH 1.7A SMD Inductor SMD WE-PD2 5820 10uH 1,6A Fixed Inductors WE-PD2 Inductor 10uH 100kHz 1.70A CHOKE, SMD, 10UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 1.7A Idc
LT3598EUF#PBF
Analog Devices, Inc.
LED DRVR 60Segment 3.3V/5V/9V/12V/15V/18V/24V 24-Pin QFN EP IC LED DRIVR WHITE BCKLGT 24-QFN LT3598EUF#PBF, LCD Display Driver 60-Segments, 3.2 to 30V, 24-Pin QFN24 IC, LED DRIVER, 6CH, 30MA, 24QFN IC, LED DRIVER, BOOST, QFN-24 60段 LCD 显示驱动器, 3.2 → 30 V, 24引脚 QFN封装
74454068
Wurth Electronics Inc

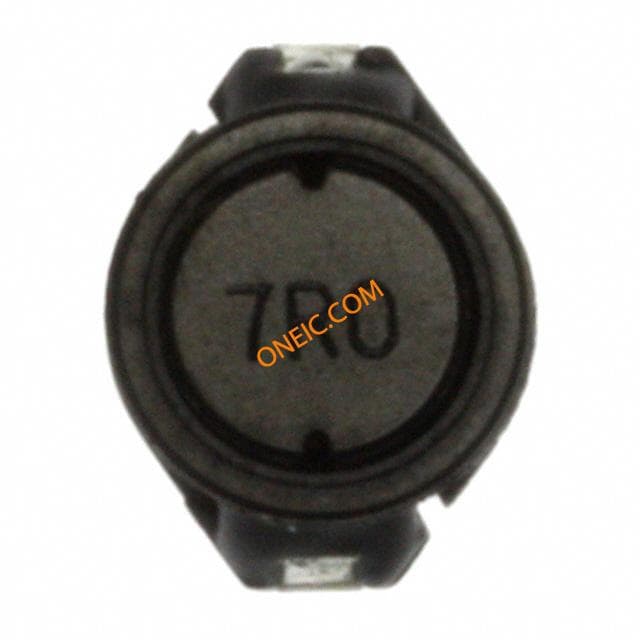

INDUCTOR POWER 6.8UH 2.2A SMD CHOKE, SMD, 6.8UH
74454010
Wurth Elektronik

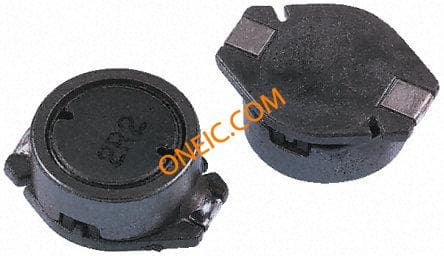

Power Inductor SMD WE-PD3 L 10.0uH 2.00A CHOKE, SMD, 10UH Wurth WE-PD3 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 2A Idc
