LT3509EDE#PBF
| Manufacturer | |
| Description | Conv DC-DC Dual Step Down 3.6V to 36V 14-Pin DFN EP IC REG BUCK ADJ 0.7A DL 14DFN Sw. Regulator Dual 700mA 3.6-36V DFN14EP BUCK, DUAL, 36VIN, 0.7A, 14DFN Linear Technology , 双 降压 开关稳压器, 700mA, 0.8 → 60 V, 2.5 MHz, 14针 DFN封装 |
| Category |
Business
| Other Names | LT3509EDEPBF | Standard Package | 91 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| PWM Type | Current Mode | Output Type | Adjustable |
| Regulator Type | Buck Controller | Voltage Rating | 36 V |
| Line Regulation | 0.01%/V(Typ) | Current - Output | 700mA |
| Number of Outputs | 2 | Regulator Topology | Step Down |
| Switching Regulator | Yes | Frequency - Switching | 260kHz ~ 2.15MHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 0.8 V ~ 35.3 V |
| Voltage - Output (Max) | 60 V | DC Voltage - Input (Min) | 3.6 V |
| Voltage - Output (Min/Fixed) | 0.8 V | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Width | 3mm | Height | 0.7mm |
| Length | 4mm | Weight | 0.002 |
| Packaging | Tube | Lead Style | No Lead |
| Mounting Type | Surface Mount | Number of Pins | :14 |
| Package / Case | 14-WFDFN Exposed Pad | Package Cooled | DFN |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | DFN EP |
| Size / Dimension | 4 x 3 x 0.7mm | Number of Positions | 14 |
| Supplier Device Package | 14-DFN (4x3) | ||
Product Info
| Type | Step Down | Base Unit | :3509 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts

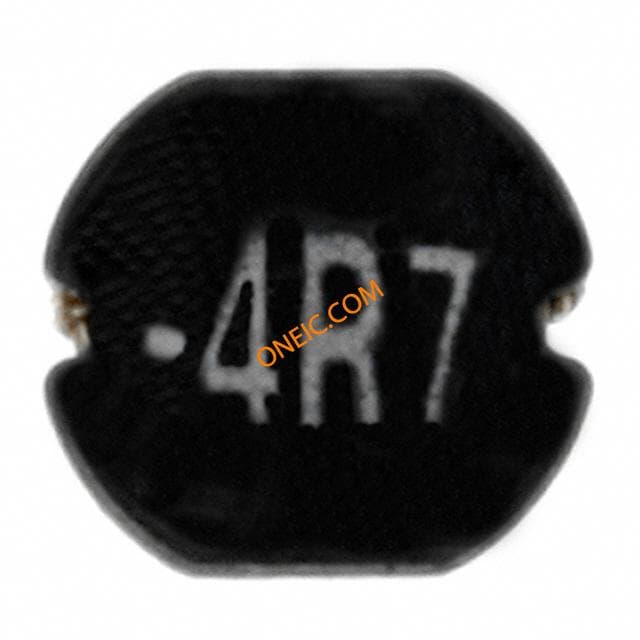

7447745047
Wurth Electronics
固定インダクタ WE-PD2 Inductor 4.7uH 100kHz 2.5A INDUCTOR POWER 4.7UH 2.5A SMD Inductor SMD WE-PD2 5820 4,7uH 2,4A Fixed Inductors WE-PD2 Inductor 4.7uH 100kHz 2.5A CHOKE, SMD, 4.7UH
7447745100
Wurth Electronics
固定インダクタ WE-PD2 Inductor 10uH 100kHz 1.70A INDUCTOR POWER 10UH 1.7A SMD Inductor SMD WE-PD2 5820 10uH 1,6A Fixed Inductors WE-PD2 Inductor 10uH 100kHz 1.70A CHOKE, SMD, 10UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 1.7A Idc

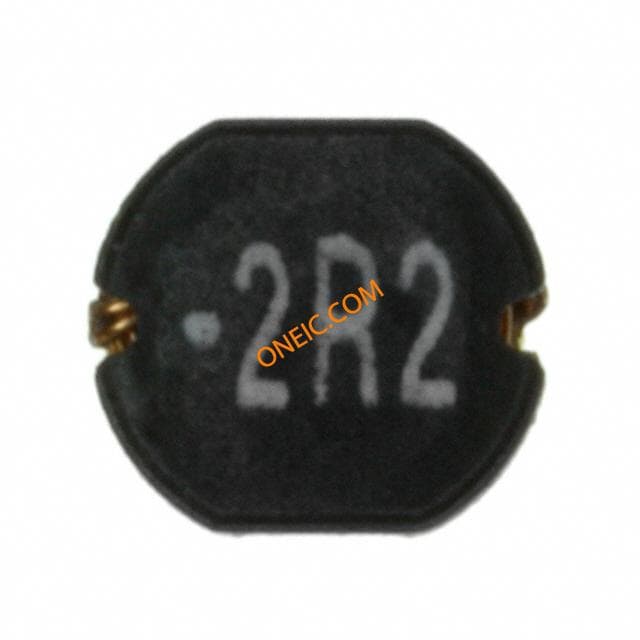

7447745022
