7447709150
| Manufacturer | |
| Description | Fixed Inductors Shielded Pwr Inductr 6.5A 0.11Ohms 15uH INDUCTOR POWER 15UH 6.5A SMD SMD Inductor WE-PD XXL 15uH 8A Fixed Inductors WE-PD Inductor 15uH 1kHz 6.5A CHOKE, SMD, 15UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 8A Idc |
| Category |
Business
| Product | SMD Power Inductors | Other Names | 732-1242-2 |
| Standard Package | 250 | Factory Pack Quantity | 250 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Impedance | :0.02075ohm |
| Tolerance | 20 % | Inductance | 15 uH |
| Range deg/s | :WURTH ELEKTRONIK - WE-PD Series | Test Frequency | 1 kHz |
| Inductance Range | :± 20% | DC Resistance (DCR) | 26 mOhm Max |
| Current Rating (Max) | 6.5 A | DC Resistance (DCR) (Max) | :0.026ohm |
| Frequency - Self Resonant | 17 MHz | Current - Saturation (Isat) | :8A |
| Current Saturation - Series | 8A | Resistance - Initial (Ri) (Min) | 26 mOhms |
| Current - On State (It (RMS)) (Max) | :6.5A | ||
Mechanical
| Depth | 12mm | Width | 12 mm |
| Height | 10mm | Length | 12mm |
| Weight | 0.0048 | Packaging | Reel |
| Shielding | Shielded | Shield Type | Yes |
| Lead Spacing | 7 mm | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 12 mm x 12 mm x 10 mm | Material - Core | Ferrite |
| Primary Material | :Metal | Size / Dimension | 12 mm W x 12 mm L x 10 mm H |
| Termination Style | SMD/SMT | Dimensions - Overall | :12mm x 12mm x 10mm |
| Height - Seated (Max) | 0.394" (10.00mm) | ||
Product Info
| Type | SMD Shielded Power Inductor | Series | WE-PD |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts

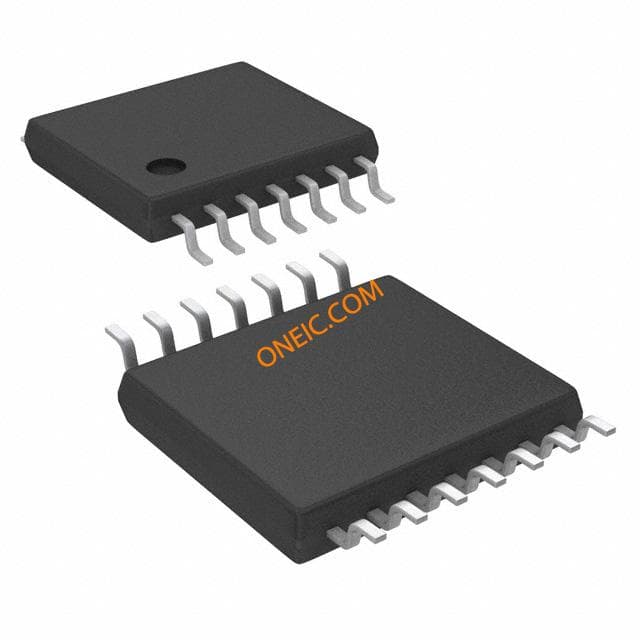

LM3151MHE-3.3/NOPB
texas instruments
DC DC Cntrlr Single-OUT Sync Step Down 6V to 42V Input 14-Pin TSSOP EP T/R DC DC Cntrlr Single-OUT Sync Step Down 6V to 42V Input 14-Pin HTSSOP EP T/R IC REG CTRLR BUCK PWM 14-TSSOP Switching Controllers SIMPLE SWITCHER? CONTROLLER, 42V Synchronous Step-Down 14-HTSSOP -40 to 125 Voltage Regulat SIMPLE SWITCHER® CONTROLLER, 42V Synchronous Step-Down

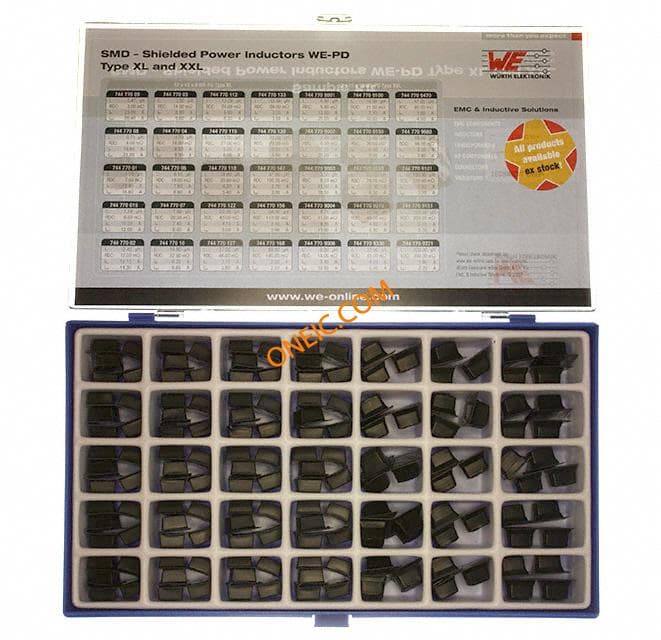

744770
