LM3152MHE-3.3/NOPB
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT Sync Step Down 6V to 33V Input 14-Pin TSSOP EP T/R DC DC Cntrlr Single-OUT Sync Step Down 6V to 33V Input 14-Pin HTSSOP EP T/R IC REG CTRLR BUCK PWM 14-TSSOP Switching Controllers SIMPLE SWITCHER? CONTROLLER, 42V Synchronous Step-Down 14-HTSSOP -40 to 125 Voltage Regulat SIMPLE SWITCHER® CONTROLLER, 42V Synchronous Step-Down |
| Category |
Business
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | PWM Type | Controller |
| Duty Cycle | 81% | Cuk Converter | No |
| Buck Converter | Yes | Isolated Power | No |
| Voltage Rating | 3.3 V | Boost Converter | No |
| Frequency - Max | 500kHz | Current - Output | 12(Max) A |
| Duty Cycle (Max) | 81 % | Voltage - Supply | 6 to 33 V |
| Doubler Converter | No | Flyback Converter | No |
| Number of Outputs | 1 | Divider/Multiplier | No |
| Inverting Converter | No | Current Rating (Max) | Catalog |
| Frequency - Switching | 500 kHz | ||
Mechanical
| Width | 4.5(Max) | Weight | 0 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 14TSSOP EP | Package Cooled | TSSOP EP |
| Length - Overall | 5.1(Max) | Package Quantity | HTSSOP EP |
| Number of Positions | 14 | Shell Size - Insert | 1.05(Max) |
Product Info
| Type | Synchronous Step Down Controller | Series | LM3152 |
| Features | Enable Tracking | Software | SNVS562G |
| Topology | Buck | Application | Industrial |
| Control Method | COT with emulated ripple | Functional Diagram | fbd_snvs562g.gif |
| Utilized IC / Part | View | Printed Circuit Board | 14 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Similar Parts
7447709150
Wurth Electronics
Fixed Inductors Shielded Pwr Inductr 6.5A 0.11Ohms 15uH INDUCTOR POWER 15UH 6.5A SMD SMD Inductor WE-PD XXL 15uH 8A Fixed Inductors WE-PD Inductor 15uH 1kHz 6.5A CHOKE, SMD, 15UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 8A Idc
7447709004
Wurth Electronics
固定インダクタ WE-PD Inductor 4.7uH 1kHz 9.3A INDUCTOR POWER 4.7UH 9.3A SMD SMD Inductor WE-PD XXL 4.7uH 13A Fixed Inductors WE-PD Inductor 4.7uH 1kHz 9.3A CHOKE, SMD, 4.7UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 4.7 μH ±20%, 9.3A Idc
7447709006
Wurth Electronics
Fixed Inductors WE-PD Inductor 6.8uH 1kHz 8.4A INDUCTOR POWER 6.8UH 8.4A SMD WE-PD SMD Shielded Power Inductor CHOKE, SMD, 6.8UH Wurth WE-PD 系列 屏蔽 绕线贴片电感器, 6.8 μH ±20%, 8.4A Idc
7447709100
Wurth Electronics
Fixed Inductors WE-PD Inductor 10uH 1kHz 7.1A INDUCTOR POWER 10UH 7.1A SMD Power inductor SMD WE-PDXXL 10uH 7.1A CHOKE, SMD, 10UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 7.1A Idc

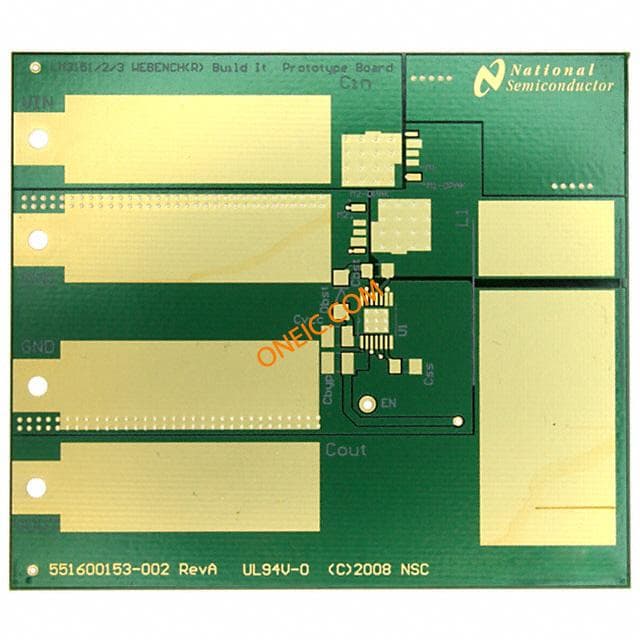

551600153-002/NOPB
