LM3151MHE-3.3
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT Sync Step Down 6V to 42V Input 14-Pin HTSSOP EP T/R SIMPLE SWITCHER, 6~42V, 14TSSOP |
| Category |
Business
| Standard Package Name | TSSOP | ||
Compliance
| SVHC | :No SVHC (20-Jun-2013) | EU RoHS | Supplier Unconfirmed |
| Tariff No | 85423190 | ||
Electrical
| Frequency | :250kHz | Regulator Type | :Step Down (Buck) |
| Voltage Rating | :3.3V | Current - Output | :12A |
| Voltage - Supply | :330mV | Number of Outputs | 1 |
| Frequency - Switching | 250 | Voltage - Input (Min) | :18V |
| Voltage - Continuous Operating (Max) (MCOV) | :42V | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.0001 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :14 | Package / Case | :TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5.1(Max) |
| Package Quantity | HTSSOP EP | Number of Positions | 14 |
| Shell Size - Insert | 1.05(Max) | ||
Product Info
| Type | Synchronous Step Down Controller | Base Unit | :3151 |
| Printed Circuit Board | 14 | ||
Environmental
| Operating Temperature | :-40°C | ||
Similar Parts
7447709150
Wurth Electronics
Fixed Inductors Shielded Pwr Inductr 6.5A 0.11Ohms 15uH INDUCTOR POWER 15UH 6.5A SMD SMD Inductor WE-PD XXL 15uH 8A Fixed Inductors WE-PD Inductor 15uH 1kHz 6.5A CHOKE, SMD, 15UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 8A Idc

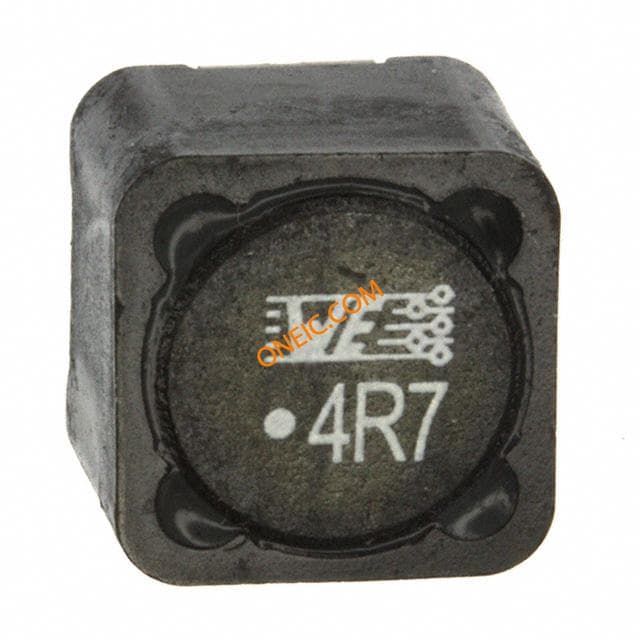

7447709004
Wurth Electronics
固定インダクタ WE-PD Inductor 4.7uH 1kHz 9.3A INDUCTOR POWER 4.7UH 9.3A SMD SMD Inductor WE-PD XXL 4.7uH 13A Fixed Inductors WE-PD Inductor 4.7uH 1kHz 9.3A CHOKE, SMD, 4.7UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 4.7 μH ±20%, 9.3A Idc
7447709006
Wurth Electronics
Fixed Inductors WE-PD Inductor 6.8uH 1kHz 8.4A INDUCTOR POWER 6.8UH 8.4A SMD WE-PD SMD Shielded Power Inductor CHOKE, SMD, 6.8UH Wurth WE-PD 系列 屏蔽 绕线贴片电感器, 6.8 μH ±20%, 8.4A Idc
7447709100
Wurth Electronics
Fixed Inductors WE-PD Inductor 10uH 1kHz 7.1A INDUCTOR POWER 10UH 7.1A SMD Power inductor SMD WE-PDXXL 10uH 7.1A CHOKE, SMD, 10UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 7.1A Idc
744724
Wurth Electronics Inc
KIT DESIGN FOR NATIONAL REF Wurth Elektronik Power Inductor Inductor Design Kit, 180 Pieces DESIGN-KIT SMD CHOKESFOR NAT.SEMI Wurth Elektronik 180件 电感器设计套件, 套件包含功率电感器
