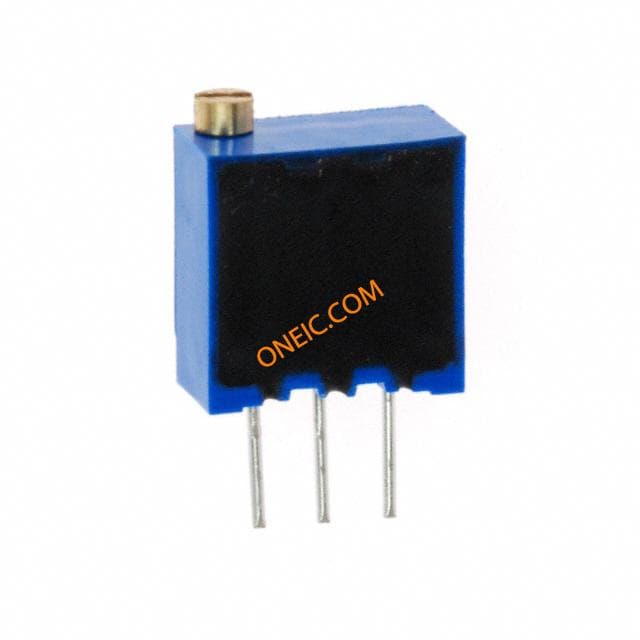

T93YB502KT20
| Manufacturer | |
| Description | Res Cermet Trimmer 5K Ohm 10% 1/2W 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W TH TRIMMER T93YB 5K Trimmer Resistors - Through Hole 3/8 SQ V/ADJ 5K TRIMMER, 22 TURN 5K TRIMMER;CERMET;5.0KOHM;21TURN;1/2W Potentiometer: mounting; multiturn; 5kΩ; 500mW; THT; ±10%; linear Vishay 21（电气）转，23（机械）转 转 通孔 微调电阻器, 带 针接端, 5kΩ ±10%, 0.5W T93YB 5K 10% LIN 0,5W |
| Category |
Business
| MOQ | 500 | Product | Trimmer Resistors - Multi Turn |
| Unit Pack | 50 | Other Names | T93YB-5.0K |
| Product Category | Trimmer Resistors - Through Hole | Standard Package | Rail / Tube |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85334010 | ||
Electrical
| Tolerance | 10 % | Resistance | 5 KOhm |
| Element Type | Cermet | Power (Watts) | 0.5W, 1/2W |
| Power - Rated | 1/2 W | Voltage Rating | 250 V |
| Voltage - Rated | 250V | Resistance (Ohms) | 5k |
| Contact Resistance | :2% | Voltage - Breakdown | :1000V |
| Resistance Tolerance | 5kΩ | Resistor - Base (R1) | :Radial Leaded |
| DC Resistance (DCR) (Max) | :5kohm | ||
Mechanical
| Depth | 5mm | Taper | Linear |
| Height | 11mm | Length | 9.7mm |
| Torque | 1,5Ncm | Weight | 0.0012 |
| Base Type | :Through Hole | Packaging | Tube |
| Size - Body | 9.8 x 9.8 x 5mm | Mounting Type | Through Hole |
| Terminal Type | :PCB Terminals | Mounting Style | PCB |
| Shaft Diameter | 2.2 mm | Length - Overall | 9.7 |
| Material - Blade | Cermet | Package Quantity | 500 |
| Size / Dimension | Square - 0.382" L x 0.197" W x 0.386" H (9.70mm x 5.00mm x 9.80mm) | Pitch - Connector | 2.5x2.5mm |
| Termination Style | Pin | Conductor Material | cermet |
| Resistive Material | Cermet | ||
Product Info
| Spg | 500 | Type | Trimmer |
| Series | T93 | Schematic | see |
| Technology | Cermet | Product Type | Multi-Turn |
| Adjustment Type | Top Adjustment | Characteristics | linear |
| Number of Turns | 21(Elec)|23(Mech) Turns | Number of Units | 1 |
| Type Attributes | 3/8" | ||
Environmental
| NEMA Frame Size | :IP67 | Ingress Protection | IP67 |
| Operating Temperature | -55 to 155 °C | Temperature Coefficient | ±100ppm/°C |
| Temperature Coefficient (Typ) | :100ppm/°C | ||
Documents & Media
Similar Parts
T93YB502KT20
vishay / roederstein
Res Cermet Trimmer 5K Ohm 10% 1/2W 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W TH TRIMMER T93YB 5K Trimmer Resistors - Through Hole 3/8 SQ V/ADJ 5K TRIMMER, 22 TURN 5K TRIMMER;CERMET;5.0KOHM;21TURN;1/2W Potentiometer: mounting; multiturn; 5kΩ; 500mW; THT; ±10%; linear Vishay 21（电气）转，23（机械）转 转 通孔 微调电阻器, 带 针接端, 5kΩ ±10%, 0.5W T93YB 5K 10% LIN 0,5W

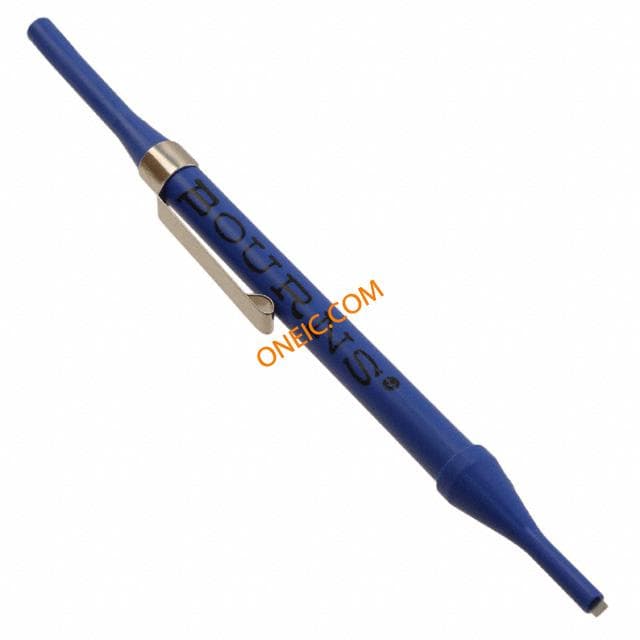

H-90
bourns
ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-90 Potentiometer Tools & Hardware ADJUST. TOOL ADJUSTMENT TOOLS TRIMMING TOOL TrimmerTool,Adjustment;Tweeker;BldThk0.016in;BldW0.08in;L5in Tool: for potentiometers adjustment; Application:3319P-1 Adjusting tool, H-90, Bourns 微调面板安装适配器 127mm

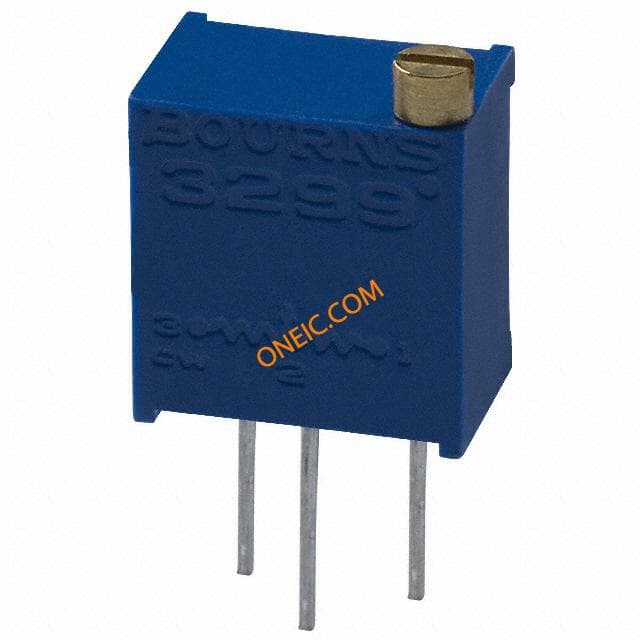

3299Y-1-502LF
bourns
Res Cermet Trimmer 5K Ohm 10% 1/2W 25(Elec)Turn 2.29mm (9.53 X 6.1 X 11.55mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.29mm (9.53 X 6.1 X 11.55mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W PC PIN Trimmer Resistors - Through Hole 5Kohms Standoffs Vertical Adjust 3/8 TRIMMER, POTENTIOMETER, 5KOHM, 25TURN TRIMMER;CERMET;REST5KILOHMS;PCB;25TURNS;PWR-RTG0.5W Trimmer Cermet 5 kOhm linear 500 mW, 3299Y-1-502LF, Bourns

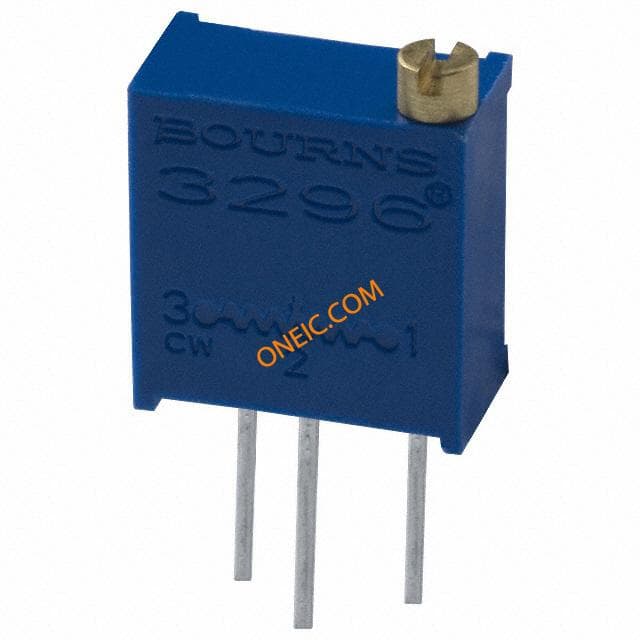

3296Y-1-502LF
