3299Y-1-502LF
| Manufacturer | |
| Description | Res Cermet Trimmer 5K Ohm 10% 1/2W 25(Elec)Turn 2.29mm (9.53 X 6.1 X 11.55mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.29mm (9.53 X 6.1 X 11.55mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W PC PIN Trimmer Resistors - Through Hole 5Kohms Standoffs Vertical Adjust 3/8 TRIMMER, POTENTIOMETER, 5KOHM, 25TURN TRIMMER;CERMET;REST5KILOHMS;PCB;25TURNS;PWR-RTG0.5W Trimmer Cermet 5 kOhm linear 500 mW, 3299Y-1-502LF, Bourns |
| Category |
Business
| Product | Trimmers | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
Electrical
| Tolerance | 10 % | Resistance | 5 KOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.5W, 1/2W | Power - Rated | 1/2 W |
| Voltage Rating | 300 V | Resistance (Ohms) | 5k |
| Dielectric Strength | 900VAC | Resistance Tolerance | :± 10% |
| Insulation Resistance | 1000Megohms | DC Resistance (DCR) (Max) | :5kohm |
Mechanical
| Depth | 6.1 | Taper | Linear |
| Height | 11.55 | Torque | 3Oz./in. |
| Weight | 0.00091 | Packaging | Tube |
| Termination | SolderablePins | Mounting Type | Through Hole |
| Mounting Style | PCB | Shaft Diameter | 2.29 mm |
| Length - Overall | 9.53 | Material - Blade | Cermet |
| Size / Dimension | Square - 0.395" L x 0.240" W x 0.375" H (10.03mm x 6.10mm x 9.53mm) | Termination Style | Pin |
| Resistive Material | Cermet | ||
Product Info
| Type | Trimmer | Series | 3299 |
| Technology | Cermet | Product Type | Multi-Turn |
| Adjustment Type | Top Adjustment | Number of Turns | 25(Elec) Turns |
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100ppm/°C | ||
Documents & Media
Similar Parts

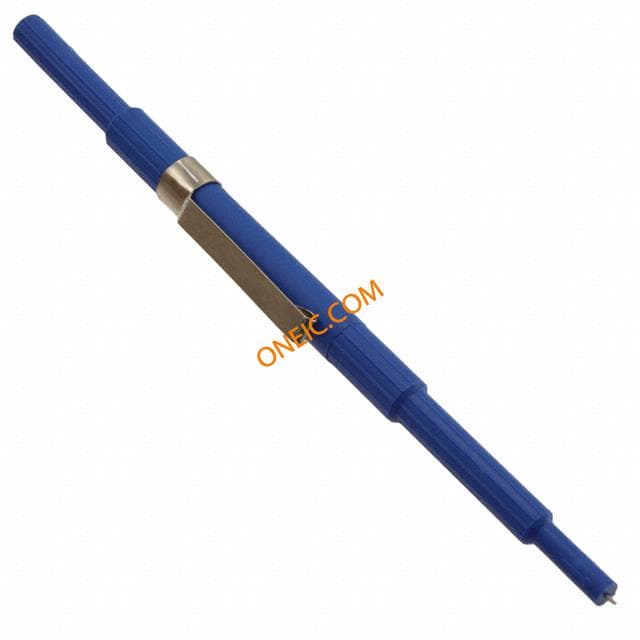

H-91
