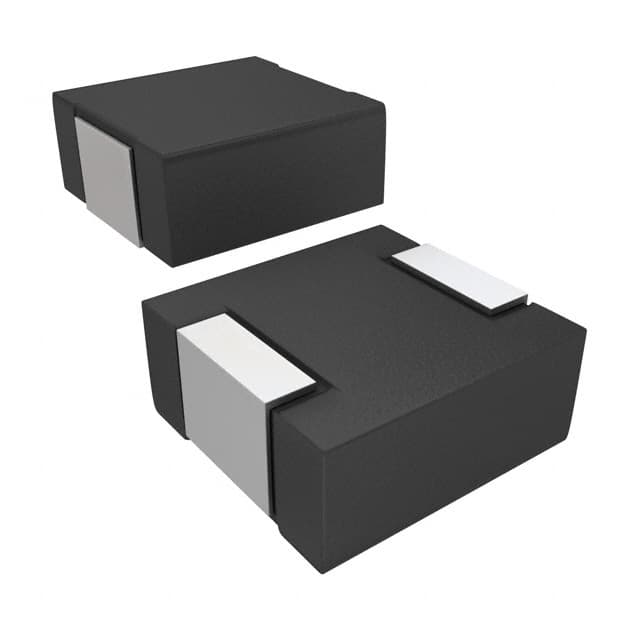

IHLP2525CZER1R0M01
| Manufacturer | |
| Description | Ind High Current Shielded 1uH 20% 100KHz 11A 2525 T/R Inductor High Current Shielded Wirewound 1uH 20% 100KHz 11A 10mOhm DCR 2525 T/R INDUCTOR POWER 1.0UH 11A SMD Inductor IHLP SMD 2525 1.0uH Fixed Inductors 1uH 20% INDUCTOR, SMD, 1UH INDUCTOR, SHIELDED, 1UH, 22A, SMD, FULL REEL Inductor;HighCurrent;Ind1uH;Tol20%;Cur11A;SMT;Case2525;DCR9Ohms Vishay IHLP2525CZ-01 系列 屏蔽 金属复合材料芯材 绕线贴片电感器, 1 μH ±20%, 11A Idc IHLP2525CZ 1,0uH 22A 20% |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Inductors | Other Names | 541-1006-1 |
| Product Category | Fixed Inductors | Standard Package | Cut Tape |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85045020 | Protection Features | Shielded |
Electrical
| Core Type | :Shielded | Tolerance | 20 % |
| Inductance | 1 uH | Range deg/s | :VISHAY - IHLP-2525CZ-01 Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 10 mOhm Max | Current Rating (Max) | 11(Typ) A |
| DC Resistance (DCR) (Max) | :0.01ohm | Frequency - Self Resonant | 5MHz |
| Current - Saturation (Isat) | :22A | Current Saturation - Series | 22A |
| Inductance Frequency - Test | :100kHz | Resistance - Initial (Ri) (Min) | 10 mOhm |
| Current - On State (It (RMS)) (Max) | :11A | ||
Mechanical
| Depth | 6.72 mm | Width | 6.47 mm |
| Height | 3 mm | Length | 6.86mm |
| Weight | 0.08 | Packaging | Tape and Reel |
| Shielding | Shielded | Shield Type | Yes |
| Termination | SMT | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | 2525 |
| Length - Overall | 7.24 | Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :6.86mm x 6.47mm x 3mm |
| Height - Seated (Max) | 0.118" (3.00mm) | ||
Product Info
| Type | High Current | Series | IHLP-2525CZ-01 |
| Technology | Wirewound | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
IHLP2525CZER1R0M01
vishay / dale
Ind High Current Shielded 1uH 20% 100KHz 11A 2525 T/R Inductor High Current Shielded Wirewound 1uH 20% 100KHz 11A 10mOhm DCR 2525 T/R INDUCTOR POWER 1.0UH 11A SMD Inductor IHLP SMD 2525 1.0uH Fixed Inductors 1uH 20% INDUCTOR, SMD, 1UH INDUCTOR, SHIELDED, 1UH, 22A, SMD, FULL REEL Inductor;HighCurrent;Ind1uH;Tol20%;Cur11A;SMT;Case2525;DCR9Ohms Vishay IHLP2525CZ-01 系列 屏蔽 金属复合材料芯材 绕线贴片电感器, 1 μH ±20%, 11A Idc IHLP2525CZ 1,0uH 22A 20%
$1.3464
Details

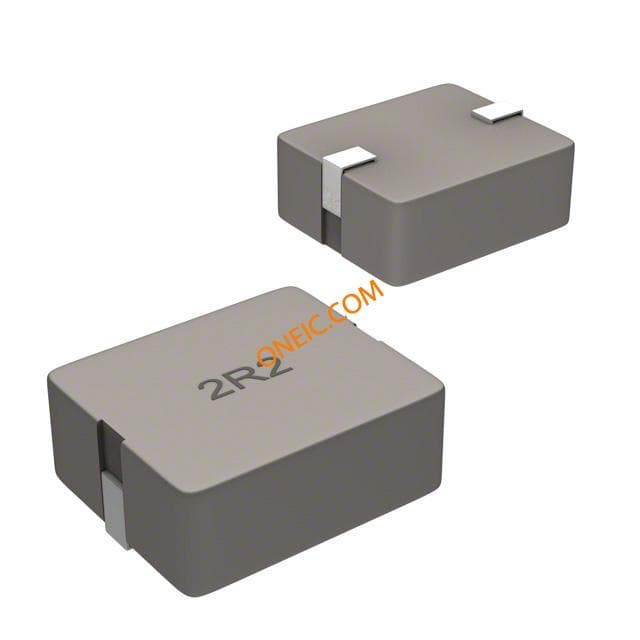

SRP7030-1R0FM
