SRP7030-1R0FM
| Manufacturer | |
| Description | Fixed Inductors 1uH 11amp 7Mohms Inductor Power Shielded Wirewound 1uH 20% 100KHz Iron 11A 7mOhm DCR T/R INDUCTOR POWER 1.0UH SHIELD SMD Power Inductor SMD 1uH 11A Inductor;Power;Shielded;Wirewound;1uH;20%;11A |
| Category |
Business
| Product | Shielded Power Inductors | Other Names | SRP7030-1R0FMCT |
| Product Category | Fixed Inductors | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Military Standard | Not Required |
| Protection Features | Shielded | ||
Electrical
| Impedance | Not Required ohm | Tolerance | 20% |
| Inductance | 1u | Test Frequency | 100kHz |
| DC Resistance (DCR) | 7 mOhm Max | Current Rating (Max) | 11A |
| Current Saturation - Series | 13A | Current - DC Forward (If) (Max) | 11000 mA |
| Resistance - Initial (Ri) (Min) | 7mΩ | ||
Mechanical
| Depth | 6.5mm | Width | 6.5 mm |
| Height | 2.7mm | Length | 7.6mm |
| Diameter | Not Required mm | Packaging | Tape and Reel |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | Iron | Mounting Type | Surface Mount |
| Package / Case | Non Standard | Material - Core | Iron |
| Length - Overall | 7.6 mm | Size / Dimension | 0.299" L x 0.256" W (7.60mm x 6.50mm) |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.118" (3.00mm) |
Product Info
| Type | Power | Technology | Wirewound |
| Failure Rate | Not Required | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
IHLP2525CZER1R0M01
vishay / dale
Ind High Current Shielded 1uH 20% 100KHz 11A 2525 T/R Inductor High Current Shielded Wirewound 1uH 20% 100KHz 11A 10mOhm DCR 2525 T/R INDUCTOR POWER 1.0UH 11A SMD Inductor IHLP SMD 2525 1.0uH Fixed Inductors 1uH 20% INDUCTOR, SMD, 1UH INDUCTOR, SHIELDED, 1UH, 22A, SMD, FULL REEL Inductor;HighCurrent;Ind1uH;Tol20%;Cur11A;SMT;Case2525;DCR9Ohms Vishay IHLP2525CZ-01 系列 屏蔽 金属复合材料芯材 绕线贴片电感器, 1 μH ±20%, 11A Idc IHLP2525CZ 1,0uH 22A 20%

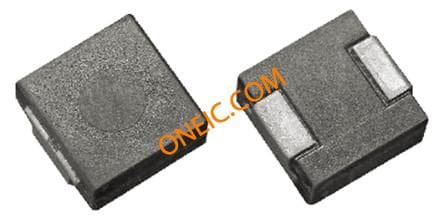

IHLM2525CZERR68M01
vishay / dale
Ind High Current Shielded Wirewound 680nH 20% 100KHz 15.5A 2525 T/R Inductor High Current Shielded Wirewound 680nH 20% 100KHz 15.5A 5.5mOhm DCR 2525 T/R INDUCTOR POWER 0.68UH 15.5A SMD Inductor IHLM SMD 2525 0.68uH INDUCTOR, SHIELDED, 680NH, 25A, SMD Vishay IHLM2525CZ-01 系列 屏蔽 金属复合材料芯材 绕线贴片电感器, 680 nH ±20%, 15.5A Idc
MHBEAD-LAB1
Bourns
EMI Kits MAGNETICS CHIP BEAD KIT MAGNETICS CHIP BEAD KIT KIT FERR CHIP BEAD MH SERIES FERRITE KIT

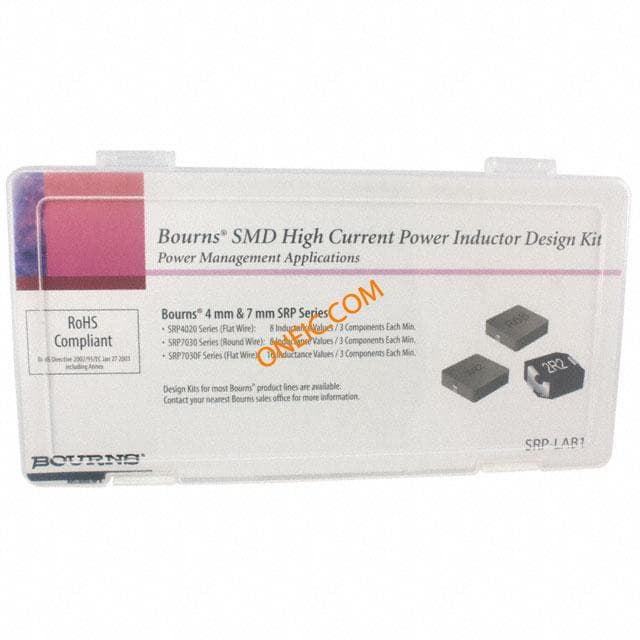

SRP-LAB1
