TUSB2046BIRHBT
| Manufacturer | |
| Description | USB Transceiver 5TR 12Mbps 32-Pin VQFN EP T/R IC 4-PORT HUB FOR USB 32-QFN USB Interface IC 4-Port Full-Spd Univ Serial Bus Hub IC, USB HUB, 4-PORT, 32QFN 4-Port Full-Speed Universal Serial Bus Hub Texas Instruments USB 收发器, 12MBps, 5收发器, 3.3 V, 32针 QFN封装 |
| Category |
Business
| Product | USB 2.0 | Other Names | 296-27130-1 |
| Product Category | USB Interface IC | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | USB 1.0 |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | ESD Protection | Yes |
Electrical
| Data Rate | 12 Mbps | Interface | USB |
| Power - Input | Single | Current - Output | 40mA |
| Current - Supply | 40 mA | Voltage - Supply | 3 V ~ 3.6 V |
| Power Supply Type | Single | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 3 V | Voltage - Supply Span (Typ) | Not Required V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 5.15(Max) | Weight | 0.002533 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :32 |
| Package / Case | 32-VFQFN Exposed Pad | Package Cooled | VQFN EP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 5.15(Max) |
| Package Quantity | VQFN EP | Number of Positions | 32 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 32-VQFN (5x5) |
Product Info
| USB | :Hub | Series | TUSB2046B |
| DELETED | Compliant | Function | Hub Controller |
| Protocol | USB | Software | SLLS413J |
| Base Unit | :2046 | Architecture | N/A |
| Pattern Number | Y | Number of Ports | :4 |
| Functional Diagram | fbd_slls413j.gif | RF Family/Standard | TUSB2046B |
| Utilized IC / Part | View | Printed Circuit Board | 32 |
| Number of Transmitters/Receivers | 5 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
SN75240P
texas instruments
ESD Suppressor TVS 15KV 8-Pin PDIP Rail ESD Suppressors Dual USB Port IC DUAL USB PORT TVS 8-DIP TVS Diode SN75240P, PDIP 8-Pin Dual USB Port Transient Suppressor Texas Instruments TVS 二极管, 8针 PDIP封装 TVS Diode Arrays Dual USB Port
SN75240PWR
texas instruments
ESD Suppressor TVS 15KV 8-Pin TSSOP T/R ESD Suppressors Dual USB Port IC DUAL USB PORT TVS 8-TSSOP USB TRANS SUPPRESSOR, SMD, 75240 Dual USB Port Transient Suppressor Logic IC Quad / Unidirectional / TVS TSSOP-8, SN75240, SN75240PWR, Texas Instruments TVS Diode Arrays Dual USB Port
TPS2071EVM-159
texas instruments

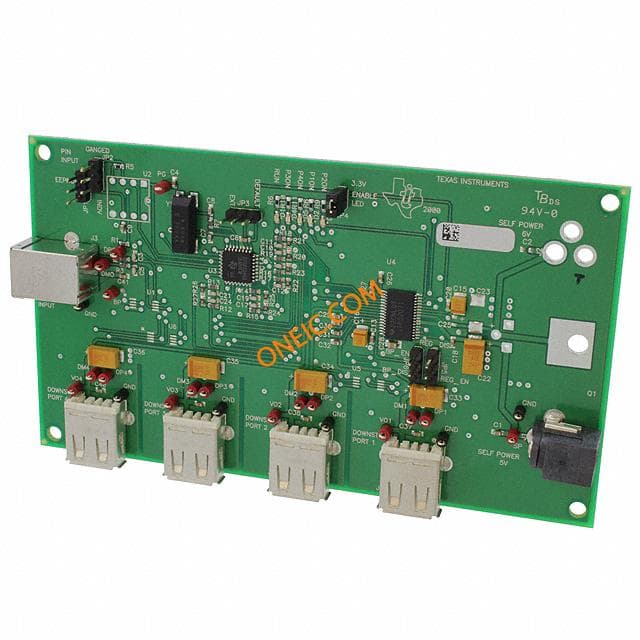

Development Tools, Evaluation Module For Power Controller For Bus/Self Powered Hub W/5V LDO Control, 3.3V LDO, 8 Power Switches ACTHI Power Management IC Development Tools TPS2071-159 Eval Mod EVAL MOD FOR TPS2071 TPS2071, USB HUB CONTROLLER, EVAL MODULE EVAL BOARD, TPS2071 USB HUB POWER CONTROLLER
