TS5A3166DCKR
| Manufacturer | |
| Description | Analog Switch Single SPST 5-Pin SC-70 T/R Analog Switch ICs 1-Ohm SPST 5-V/3.3-V Sng-Ch Analog Switch IC SWITCH SPST SC70-5 ANALOGUE SWITCH, 1 CH, SC-70-5 IC, ANALOG SWITCH, SINGLE, SPST, SC-70-5 1-Ohm SPST Analog Switch 5-V/3.3-V Single-Channel Analog Switch Texas Instruments 模拟单刀单掷开关, 单-单刀单掷, 3 V 5 V电源电压, 5针 SC-70封装 |
| Category |
Business
| Other Names | 296-17741-2 | Product Category | Analog Switch ICs |
| Standard Package | Cut Tape | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-323 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 1 x SPST - NO | Channels | 1 |
| Crosstalk | No | Input Signal | Yes |
| Turn On Time | 19@1.8V ns | Power - Input | Single |
| Current - Output | 0.00001 mA | Current - Supply | 0.0001 mA |
| Delay Time - OFF | 17.5@1.8V ns | Number of Inputs | 1 |
| Voltage - Supply | 1.65 V | Number of Outputs | 1 |
| Power Supply Type | Single | Number of Channels | 1 |
| Current Rating (Max) | Catalog | Voltage Supply Source | Single Supply |
| Switch Function/Rating | SPST | On-State Resistance (Max) | 3.4@1.65V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 11.5 ns |
| Multiplexer/Demultiplexer Circuit | Single SPST | ||
Mechanical
| Width | 1.4(Max) | Weight | 0.000088 oz |
| Bandwidth | 200 | Packaging | Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 5SC-70 | Package Cooled | SC-70 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 2.15(Max) |
| Package Quantity | SC-70 | Number of Positions | 5 |
| Shell Size - Insert | 1(Max) | Supplier Device Package | SC-70-5 |
Product Info
| Type | Analog Switch | Series | TS5A3166 |
| DELETED | Compliant | Features | Low Harmonic Distortion Low Power |
| Function | Switch | Polarity | Non-Inverting |
| Software | SCDS186C | Switch Type | :SPST |
| Configuration | Single SPST | Functional Diagram | fbd_scds186c.gif |
| Number of Switches | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 5 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
Documents & Media
Similar Parts
TS5A3166DCKR
texas instruments
Analog Switch Single SPST 5-Pin SC-70 T/R Analog Switch ICs 1-Ohm SPST 5-V/3.3-V Sng-Ch Analog Switch IC SWITCH SPST SC70-5 ANALOGUE SWITCH, 1 CH, SC-70-5 IC, ANALOG SWITCH, SINGLE, SPST, SC-70-5 1-Ohm SPST Analog Switch 5-V/3.3-V Single-Channel Analog Switch Texas Instruments 模拟单刀单掷开关, 单-单刀单掷, 3 V 5 V电源电压, 5针 SC-70封装
TPS60403DBVT
texas instruments

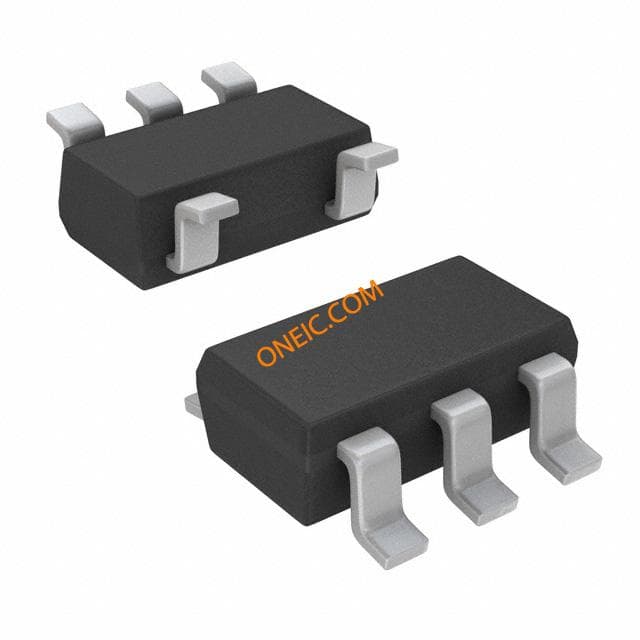

Charge Pump INV/STPUP/STPDN -1.6V to -5.25V 60mA 5-Pin SOT-23 T/R IC REG SWITCHED CAP INV SOT23-5 TPS60403DBVT, Charge Pump Inverting, Step Down, Step Up, -5.25 to -1.6V, 5-Pin, SOT-23 Voltage Regulators - Switching Regulators Unreg 60mA Chrg PmpV CHARGE PUMP INVERTER, SMD, 60403 DC-DC converter; Uin:1.6÷5.5V; Uout: -1.6÷-5.25V; 60mA; SOT23-5 60mA Charge Pump Voltage Inverter with Fixed 250kHz Operation DC/DC Converter IC -1.6...-5.25 VDC SOT-23-5, TPS60403, TPS60403DBVT, Texas Instruments Texas Instruments 反相，降压，升压 电荷泵, -5.25 → -1.6 V, 5针 SOT-23封装 Switching Voltage Regulators Unreg 60mA Chrg PmpV
TPS73230DBVT
texas instruments
LDO Regulator Pos 3V 0.25A 5-Pin SOT-23 T/R IC REG LDO 3V 0.25A SOT23-5 TPS73230DBVT, Low Dropout Voltage Regulator, 0.25A, 3V ±0.5%, 1.7 to 5.5Vin, 5-Pin SOT-23 LDO Voltage Regulators Cap-Free NMOS 250mA REGULATOR, LDO, FIXED, 3V, SOT-23-5 Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection Texas Instruments , LDO 调节器, 250mA, 3 V输出 ±0.5%, 1.7 → 5.5 V输入, 5针 SOT-23封装
OPA820ID
texas instruments

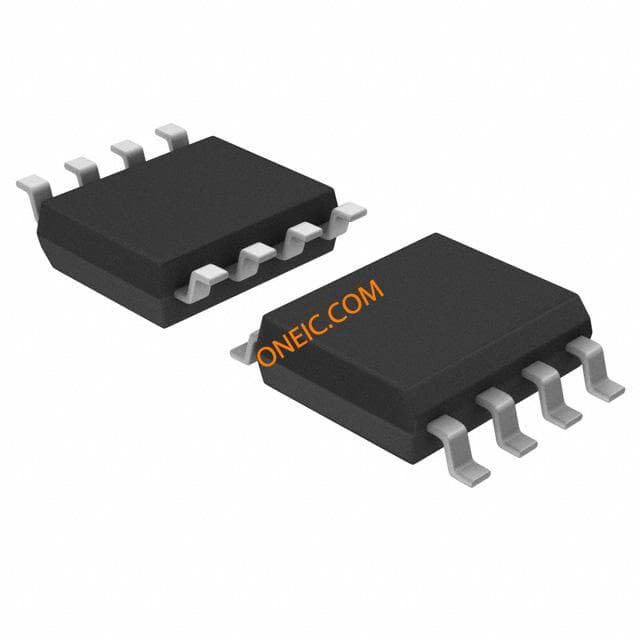

OP Amp Single Volt Fdbk ±6V/12V 8-Pin SOIC Tube IC OPAMP VFB 280MHZ 8SOIC High Speed Operational Amplifiers Unity Gain Stable Lo Noise Vltg Feedback OP Amp Single Volt Fdbk �6V/12V 8-Pin SOIC Tube IC OP AMP, SINGL, UNITY GAIN STABLE Unity Gain Stable,Low Noise,Voltage Feedback Operational Amplifier Texas Instruments 运算放大器, 260MHz, 5 V, 8针 SOIC
MSP430G2553IN20
texas instruments

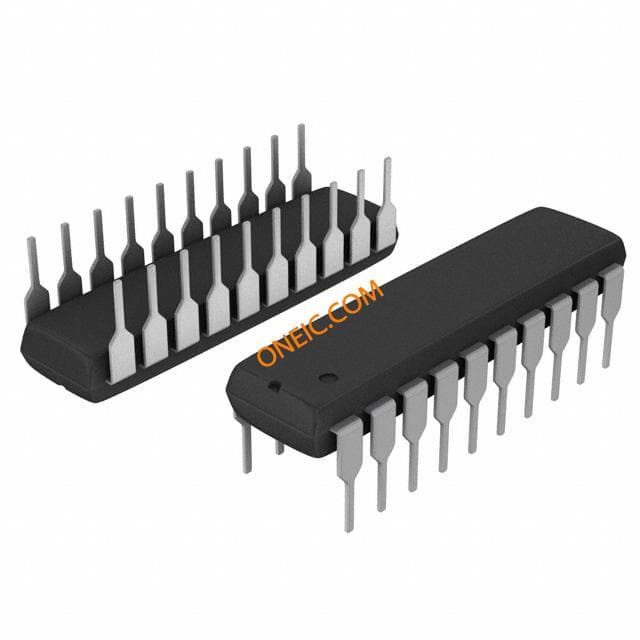

MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 20-Pin PDIP IC MCU 16BIT 16KB FLASH 20PDIP 16-bit Microcontrollers - MCU Mixed Signal MCU MCU 16-bit MSP430 MSP430 RISC 16KB Flash 2.5V/3.3V 20-Pin PDIP MCU, 16BIT, 16KB FLASH, 20PDIP MSP430G2x53, MSP430G2x13 Mixed Signal Microcontroller Texas Instruments MSP430 系列 16 bit MSP430 MCU, 16MHz, 16 kB ROM 闪存, 512 B RAM, 20针 PDIP封装
MSP430G2121IN14
texas instruments

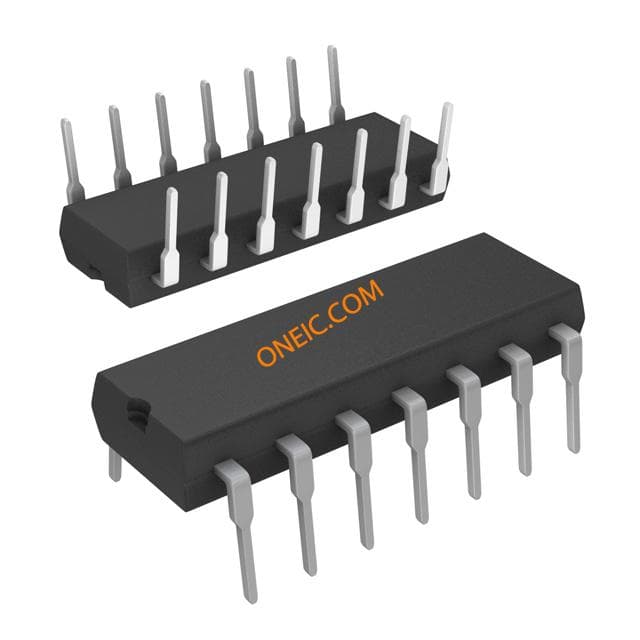

MCU 16-bit MSP430 RISC 1KB Flash 2.5V/3.3V 14-Pin PDIP IC MCU 16BIT 1KB FLASH 14DIP MSP430G2121IN14, 16 bit Microcontroller 16MHz 1kb Flash, 128kb RAM, I2C SPI 14-Pin PDIP 16-bit Microcontrollers - MCU Ultra Low Pwr Micro controller MCU, 16BIT, 1K FLASH, 14PDIP MSP430G2x21, MSP430G2x31 Mixed Signal Microcontroller Texas Instruments MSP430 系列 16 bit MCU, 16MHz, 1 kB ROM 闪存, 128 kB RAM, 14针 PDIP封装
