TPS60403DBVT
| Manufacturer | |
| Description | Charge Pump INV/STPUP/STPDN -1.6V to -5.25V 60mA 5-Pin SOT-23 T/R IC REG SWITCHED CAP INV SOT23-5 TPS60403DBVT, Charge Pump Inverting, Step Down, Step Up, -5.25 to -1.6V, 5-Pin, SOT-23 Voltage Regulators - Switching Regulators Unreg 60mA Chrg PmpV CHARGE PUMP INVERTER, SMD, 60403 DC-DC converter; Uin:1.6÷5.5V; Uout: -1.6÷-5.25V; 60mA; SOT23-5 60mA Charge Pump Voltage Inverter with Fixed 250kHz Operation DC/DC Converter IC -1.6...-5.25 VDC SOT-23-5, TPS60403, TPS60403DBVT, Texas Instruments Texas Instruments 反相，降压，升压 电荷泵, -5.25 → -1.6 V, 5针 SOT-23封装 Switching Voltage Regulators Unreg 60mA Chrg PmpV |
| Category |
Business
| Other Names | 296-13418-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 250 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Part Status | :60403 |
| Rad Hardened | No | ||
Electrical
| Frequency | :250kHz | Efficiency | 99 |
| Output Type | Adjustable | Power - Rated | 435mW |
| Converter Type | Inverting, Step Down, Step Up | Regulator Type | :Inverting |
| Voltage Rating | -1.6 to -5.25 V | Current - Output | 60(Max) mA |
| Voltage - Supply | :1.8V | Number of Outputs | 1 |
| Current Rating (Max) | Catalog | Frequency - Switching | 250kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | -1.6 V ~ -5.25 V |
| Voltage - Output (Max) | -1.6 V | Voltage - Supply (Min) | 5.25 V |
| Current - Quiescent (Iq) | 0.4 | Voltage - Output (Min/Fixed) | -5.25 V |
| Voltage - Output Difference (Typ) @ Distance | :-1.8V | ||
Mechanical
| Width | 1.6mm | Height | 1.15mm |
| Length | 2.9mm | Weight | 0.000459 oz |
| Packaging | Tape & Reel (TR) | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :5 | Package / Case | 5SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | 250 | Size / Dimension | 2.9 x 1.6 x 1.15mm |
| Number of Positions | 5 | Supplier Device Package | SOT-23-5 |
Product Info
| Spg | 250 | Type | Switched Capacitor (Charge Pump), Inverting |
| Series | TPS60403 | Function | Inverting/Step Up/Step Down |
| Software | SLVS324B | Topology | Inverting Buck-Boost |
| Base Unit | :60403 | Pattern Number | Y |
| Number of Units | 1 | Functional Diagram | fbd_slvs324b.gif |
| Utilized IC / Part | View | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
TPS73230DBVT
texas instruments
LDO Regulator Pos 3V 0.25A 5-Pin SOT-23 T/R IC REG LDO 3V 0.25A SOT23-5 TPS73230DBVT, Low Dropout Voltage Regulator, 0.25A, 3V ±0.5%, 1.7 to 5.5Vin, 5-Pin SOT-23 LDO Voltage Regulators Cap-Free NMOS 250mA REGULATOR, LDO, FIXED, 3V, SOT-23-5 Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection Texas Instruments , LDO 调节器, 250mA, 3 V输出 ±0.5%, 1.7 → 5.5 V输入, 5针 SOT-23封装
744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器
TS5A3166DBVR
texas instruments
Analog Switch Single SPST 5-Pin SOT-23 T/R Analog Switch ICs 1-Ohm SPST 5-V/3.3-V Sng-Ch Analog Switch IC SWITCH SPST SOT23-5 IC, SWITCH, SPST, SOT23-5 1-Ohm SPST Analog Switch 5-V/3.3-V Single-Channel Analog Switch Texas Instruments 模拟单刀单掷开关, 单-单刀单掷, 3 V 5 V电源电压, 5针 SOT-23封装

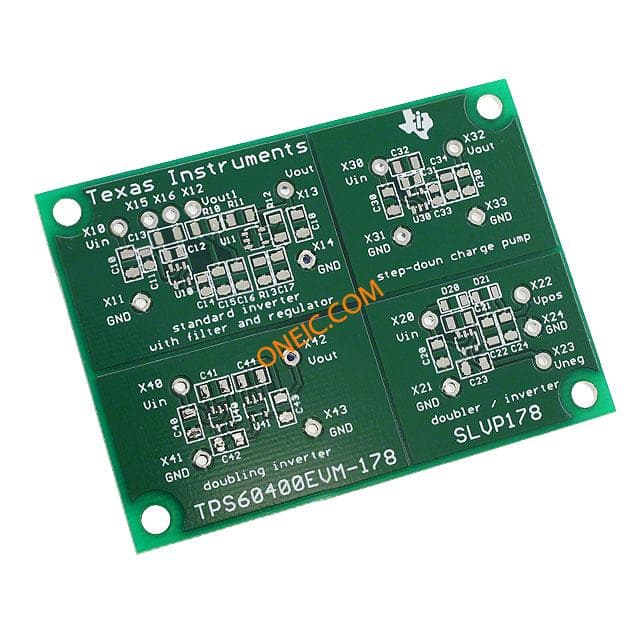

TPS60400EVM-178
