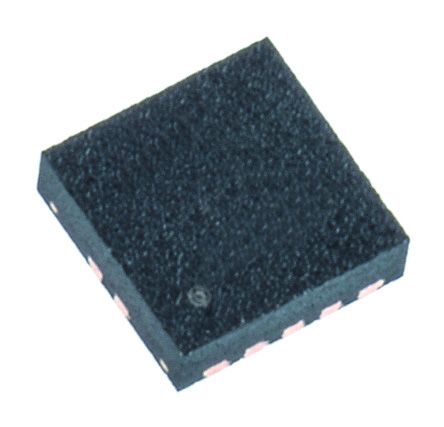

TPS63700DRCT
| Manufacturer | |
| Description | Conv DC-DC Single Inv 2.7V to 5.5V 10-Pin VSON EP T/R IC REG BUCK BOOST INV ADJ 10SON Voltage Regulators - Switching Regulators Adj -15V Out Inv DC/DC Converter IC, INVERTING DC/DC CONVERTER, SON-10 IC, DC/DC INV -15V 10-SON Adjustable, -15V Output Inverting DC/DC Converter in 3x3 QFN Texas Instruments 直流-直流转换器, 反相, 360mA, 2.7 → 5.5 V输入, -15 → -2 V输出, 1.38 MHz, 10针 SON封装 Switching Voltage Regulators Adj -15V Out Inv DC/DC Converter |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-18729-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Cut Tape | Factory Pack Quantity | 250 |
| Standard Package Name | SON | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | :3% | Frequency | :1380kHz |
| Duty Cycle | 87.5 | Efficiency | 84 % |
| Output Type | Adjustable | Regulator Type | :Inverting |
| Voltage Rating | -15 to -2 V | Current - Output | 0.36 A |
| Voltage - Supply | 2.7 to 5.5 V | Number of Outputs | 1 |
| Regulator Topology | Inverting | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Frequency - Switching | 1380(Typ) kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | -2 V ~ -15 V |
| Voltage - Output (Max) | :-15V | Current - Quiescent (Iq) | 0.97 |
| DC Voltage - Input (Min) | 2.7 V | Current - Off State (Max) | 1.5 |
| Voltage - Output 1 (Adj Range) | :-15V | ||
Mechanical
| Width | 3.1(Max) | Weight | 0.000921 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :10 |
| Package / Case | 10VSON EP | Package Cooled | VSON EP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 3.1(Max) |
| Package Quantity | VSON EP | Number of Positions | 10 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 10-SON (3x3) |
Product Info
| Type | Inverting | Series | TPS63700 |
| Features | Enable Light Load Efficiency Load Disconnect | Software | SLVS530C |
| Topology | Inverting Buck-Boost | Base Unit | :63700 |
| Control Method | Constant on-time (COT) | Utilized IC / Part | View |
| Printed Circuit Board | 10 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Online Document
PDF Document
PDF Document
PDF Document
