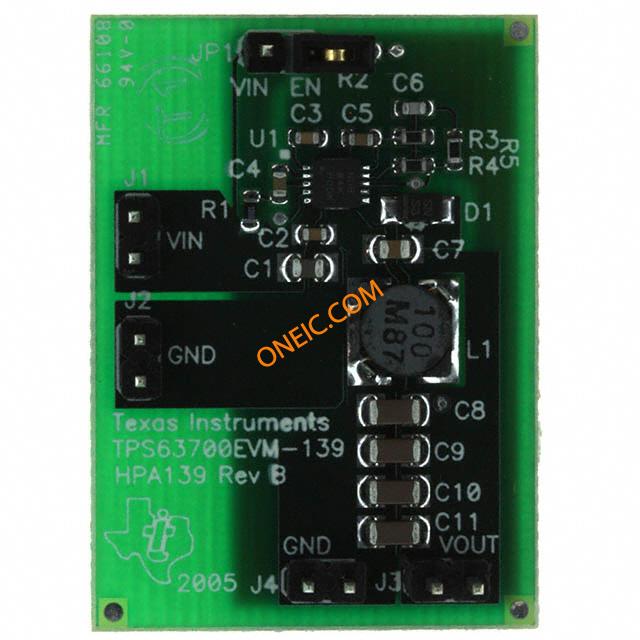

TPS63700EVM-139
| Manufacturer | |
| Description | Evaluation Module For TPS63700139 Power Management IC Development Tools TPS63700-139 Eval Mod EVALUATION MODULE FOR TPS63700 TPS63700EVM-139 EVALUATION MODULE |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 84733020 | ||
Electrical
| Voltage Rating | 3.3 V | Current - Output | 200mA |
| Number of Elements | :TPS63700 | Regulator Topology | Inverting |
| Frequency - Switching | 1.4MHz | Voltage - Input (Min) | -12V |
Mechanical
| Weight | 1 | Packaging | Reel |
| Board Thickness | Fully Populated | Size / Dimension | 38.5 mm x 27.9 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Features | :Device Can be Connected Either to Li-Ion Battery, 3-Cell NiMH/NiCd | Kit Type | :Power Management - Voltage Regulator |
| Kit Contents | :Board | Main Purpose | DC/DC, Negative Inverter |
| Outputs and Type | 1, Non-Isolated | Tool Type Feature | TPS63700 |
| RF Family/Standard | TPS63700 | Utilized IC / Part | TPS63700 |
| Chipset Manufacturer | :Texas Instruments | Application Specifics | :Inverting DC/DC Converter |
