TPS65131RGET
| Manufacturer | |
| Description | Conv DC-DC Dual Inv/Step Up 2.7V to 5.5V 24-Pin VQFN EP T/R IC REG BOOST INV ADJ 2A DL 24QFN Voltage Regulators - Switching Regulators Adj Dl Otp Switch Boost DC/DC IC, CONV DC/DC POS/NEG 24-QFN IC, DC/DC CONVERTER, VQFN-24 Split-Rail Converter with Dual Positive and Negative Outputs (300mA typ) Texas Instruments , 双 直流-直流转换器, 反相，升压, 1.95A, 2.7 → 5.5 V输入, -15 → -2 V，3.2 → 15 V输出 Switching Voltage Regulators Adj Dl Otp Switch Boost DC/DC |
| Category |
Business
| Other Names | 296-17349-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | :3% | Frequency | :1.25MHz |
| Efficiency | 85 % | Output Type | Adjustable |
| Regulator Type | :Boost/Inverting | Voltage Rating | -15 to -2|3.2 to 15 V |
| Current - Output | 1.95(Typ) A | Voltage - Supply | 2.7 to 5.5 V |
| Number of Outputs | 2 | Regulator Topology | Inverting/Step Up |
| Switching Regulator | Yes | Current Rating (Max) | Catalog |
| Frequency - Switching | 1380(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | -15 V ~ 15 V | DC Voltage - Input (Min) | 2.7 V |
| Voltage - Output Difference (Typ) @ Distance | :-15V | ||
Mechanical
| Width | 4.15(Max) | Weight | 0.001524 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :24 |
| Package / Case | 24VQFN EP | Package Cooled | VQFN EP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 4.15(Max) |
| Package Quantity | VQFN EP | Number of Positions | 24 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 24-VQFN (4x4) |
Product Info
| Type | Inverting|Step Up | Series | TPS65131 |
| Software | SLVS493C | Base Unit | :65131 |
| Pattern Number | Y | Functional Diagram | fbd_slvs493c.gif |
| Utilized IC / Part | View | Printed Circuit Board | 24 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts

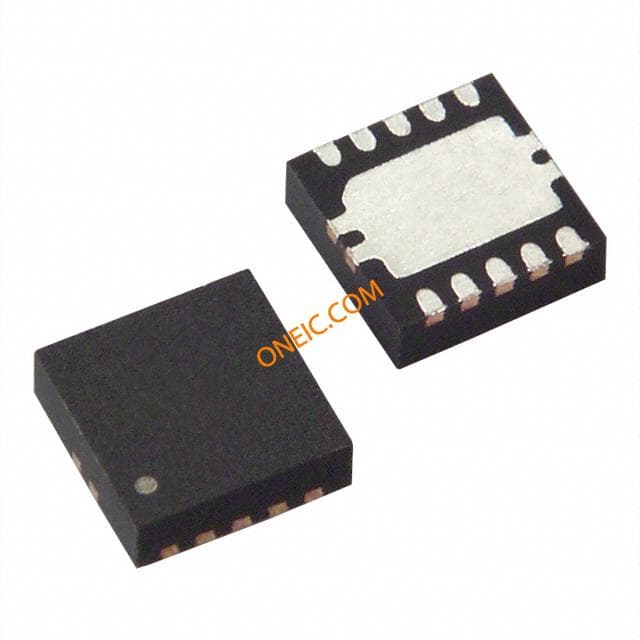

TPS63700DRCT
