TPS2045AD
| Manufacturer | |
| Description | USB Power SW Hi Side/DIST Single 5.5V 0.5A 8-Pin SOIC Tube Power Switch ICs - USB .345A 2.7-5.5V Hi IC 500MA PWR DIST SW 8-SOIC POWER LOAD SWITCH, HIGH SIDE, , SOIC-8 0.345A, 2.7-5.5V Single Hi-Side MOSFET, Fault Report, Act-Low Enable , 四 USB 电源开关, 高侧, 80mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution .345A 2.7-5.5V Hi |
| Category |
Business
| Other Names | 296-3400-5 | Product Category | Power Switch ICs - USB |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Current - Test | 0.25 | Voltage Rating | :5.5V |
| Voltage - Supply | 2.7 V | Number of Outputs | 1 |
| Regulator Topology | Constant-Current | Current Rating (Max) | Catalog |
| Voltage - Input (Min) | 2.7 to 5.5 V | Rds On (Max) @ Id, Vgs | 100 mOhm |
| Power Dissipation (Max) | :725mW | Input Logic Level - High | :Active Low |
| On-State Resistance (Max) | :0.08ohm | Current - Short Circuit (Isc) | 0.5 A |
| Drive Voltage (Max Rds On, Min Rds On) | 80 | ||
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | High Side Switch|USB Power Distribution Switch | Series | TPS2045A |
| DELETED | Compliant | Software | SLVS251C |
| Switch Type | :High Side | Programmable | Active Low |
| Internal Switch(s) | Yes | Number of Switches | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | 0 to 85 | Thermal Resistance | :Yes |
| Operating Temperature | 0 to 85 °C | ||
Documents & Media
Similar Parts
TPS2021D
texas instruments
USB Power SW Hi Side/DIST Single 5.5V 0.9A 8-Pin SOIC Tube Power Switch ICs - USB 0.66A 2.7-5.5V Sngl Hi-Side MOSFET IC 0.9A PWR DIST SWITCH 8-SOIC IC, 0.9A PWR DIST SWITCH 8-SOIC PWR DISTRIBUTION SWITCH, 0.66A, SMD 0.66A, 2.7-5.5V Single Power Distribution Switch IC Hi-Side MOSFET, Fault Report, Act-Low Enable , 四 USB 电源开关, 高侧, 33mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution 0.66A 2.7-5.5V Sngl Hi-Side MOSFET
TPS2023D
texas instruments
USB Power SW Hi Side/DIST Single 5.5V 2.2A 8-Pin SOIC Tube Power Switch ICs - USB 1.65A 2.7-5.5V Sngl Hi-Side MOSFET IC 2.2A POWER DIST SWITCH 8-SOIC IC, 2.2A POWER DIST SWITCH 8-SOIC 1.65A, 2.7-5.5V Single Power Distribution Switch IC Hi-Side MOSFET, Fault Report, Act-Low Enable Power Switch ICs - Power Distribution 1.65A 2.7-5.5V Sngl Hi-Side MOSFET
TPS2041BDBVR
texas instruments
USB Power SW Hi Side/DIST Single 5.5V 0.75A to 1.25A 5-Pin SOT-23 T/R Power Switch ICs - USB Sgl Ch Crnt-Ltd Pwr Dist Sw IC PWR DIST SWITCH SNGL SOT23-5 IC, POWER DISTRIBUTION SWITCH Single-Channel Current-Limited Power Distribution Switch Power Switch ICs - Power Distribution Sgl Ch Crnt-Ltd Pwr Dist Sw
TPS2032D
texas instruments
USB Power SW Hi Side/DIST Single 5.5V 1.5A 8-Pin SOIC Tube Power Switch ICs - USB 1.1A 2.7-5.5V Sngl Hi-Side MOSFET IC 1.5A POWER DIST SWITCH 8-SOIC IC, 1.5A POWER DIST SWITCH 8-SOIC PWR DISTRIBUTION SWITCH, 1.11A, SMD 1.1A, 2.7-5.5V Single Hot-Swap IC High-Side MOSFET, Fault Report, Act-High Enable Power Switch ICs - Power Distribution 1.1A 2.7-5.5V Sngl Hi-Side MOSFET
TPS2020D
texas instruments
USB Power SW Hi Side/DIST Single 5.5V 0.3A 8-Pin SOIC Tube Power Switch ICs - USB 0.22A 2.7-5.5V Sngl Hi-Side MOSFET IC .3A PWR DIST SWITCH 8-SOIC TPS2020D, Quad Power Distribution Switch, High Side 33mΩ 2.7V min., 8-Pin SOIC IC, 0.3A PWR DIST SWITCH 8-SOIC 0.22A, 2.7-5.5V Single Power Distribution Switch IC Hi-Side MOSFET, Fault Report, Act-Low Enable , 四 配电开关, 高侧, 33mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution 0.22A 2.7-5.5V Sngl Hi-Side MOSFET
TPS2031D
texas instruments
USB Power SW Hi Side/DIST Single 5.5V 0.9A 8-Pin SOIC Tube Power Switch ICs - USB 0.66A 2.7-5.5V Sngl Hi-Side MOSFET IC 900MA POWER DIST SW 8-SOIC IC, 900MA POWER DIST SW 8-SOIC 0.66A, 2.7-5.5V Single Hot-Swap IC Hi-Side MOSFET, Fault Report, Act-High Enable , 四 USB 电源开关, 高侧, 33mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution 0.66A 2.7-5.5V Sngl Hi-Side MOSFET

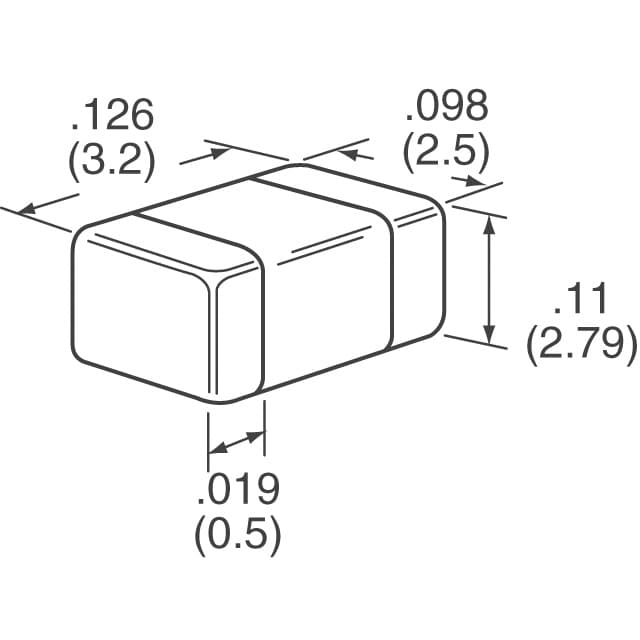

12103D226KAT2A
