TIBPAL22V10ACNT
| Manufacturer | |
| Description | SPLD IMPACT-X Family 800 Gates 10 Macro Cells 28.5MHz 5V 24-Pin PDIP Tube SPLD - Simple Programmable Logic Devices High-Performance Impact Circuit IC PLD 10MC 10NS 24DIP TIBPAL22V10ACNT, Programmeable Array Logic Circuit 800 28.5MHz 30ns 5V 24-Pin PDIP |
| Category |
Business
| Product Category | SPLD - Simple Programmable Logic Devices | Standard Package | Rail / Tube |
| Factory Pack Quantity | 15 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Speed | 10ns | Frequency | 10ns |
| Delay Time | 25 ns | Logic Type | TIBPAL22V10 |
| Number of I/O | 10 | Voltage Rating | 5 V |
| FPGA Core Cells | 10 | Frequency - Max | 28.5 MHz |
| Current - Output | 180 mA | Voltage - Supply | 4.75 V to 5.25 V |
| Program Memory Type | PAL | Voltage - Input (Min) | 5V |
| Voltage - Supply (Min) | 5.25 V | Delay Time - Propagation | 30 ns |
| Propagation Delay tpLH / tpHL (Max) | 25 ns | ||
Mechanical
| Width | 6.73mm | Height | 4.57mm |
| Length | 31.64mm | Weight | 0.061853 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 24PDIP | Package Cooled | PDIP |
| Length - Overall | 32.04(Max) | Package Quantity | PDIP |
| Size / Dimension | 31.64 x 6.73 x 4.57mm | Number of Positions | 24 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 24-PDIP |
Product Info
| Series | TIBPAL22V10AC | Programmable | Yes |
| Number of Gates | 800 | Programmable Type | PAL |
| RF Family/Standard | IMPACT-X | DigiKey Programmable | Yes |
| Number of Macrocells | 10 | Output Configuration | Through Hole |
| Printed Circuit Board | 24 | Programmable Features | PAL |
Environmental
| Operating Temperature | 0 to 75 °C | Operating Temperature - Junction | 75C |
Documents & Media
Similar Parts
TIBPAL22V10ACNT
texas instruments
SPLD IMPACT-X Family 800 Gates 10 Macro Cells 28.5MHz 5V 24-Pin PDIP Tube SPLD - Simple Programmable Logic Devices High-Performance Impact Circuit IC PLD 10MC 10NS 24DIP TIBPAL22V10ACNT, Programmeable Array Logic Circuit 800 28.5MHz 30ns 5V 24-Pin PDIP

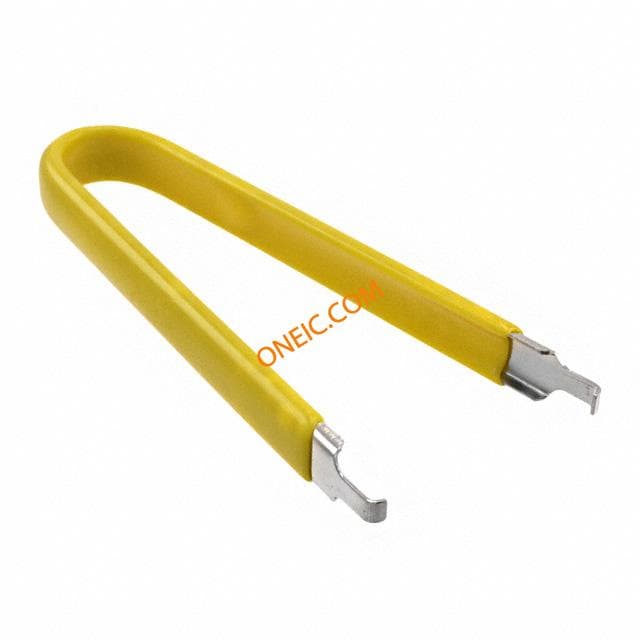

S-340
OK Industries
Pliers & Tweezers DIP/IC EXTRACT TOOL 8 TO 24 PINS Hand Tools DIP/IC EXTRACT TOOL 8 TO 24 PINS IC EXTRACTION TOOL
EX-1
OK Industries
Pliers & Tweezers Extract TL 8-24 Pin IC Extraction Tool for chips w/8-24 pins; 4 in long ICExtractionToolforchipsw/8-24pins;4inlong
1-390262-1
te connectivity / amp
Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube DIP Sockets CONN SOCKET DIP 24POS STRGHT TIN 24 way Augat tin plate DIL socket,0.6in IC & Component Sockets 24P ECONOMY TIN Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:DIP SocketNumber of Positions = 24Row-to-Row Spacing = 15.24 mmThrough Hole Contact Termination TypeMount Style = VerticalSearch Keywords:IC sockets, solderless, NIC, Network Interface Cards, PC Cards, EIA RS-415, MIL-S-83734, dual in-line IC package, DIP SOCKET, 24POS, THROUGH HOLE Socket,DIP,.600CenterLine,24Position,Ldder,DualLeaf TE Connectivity 垂直 2.54mm 节距 24 路, 通孔 模压引脚 封闭式框架 DIL 插座, 1A

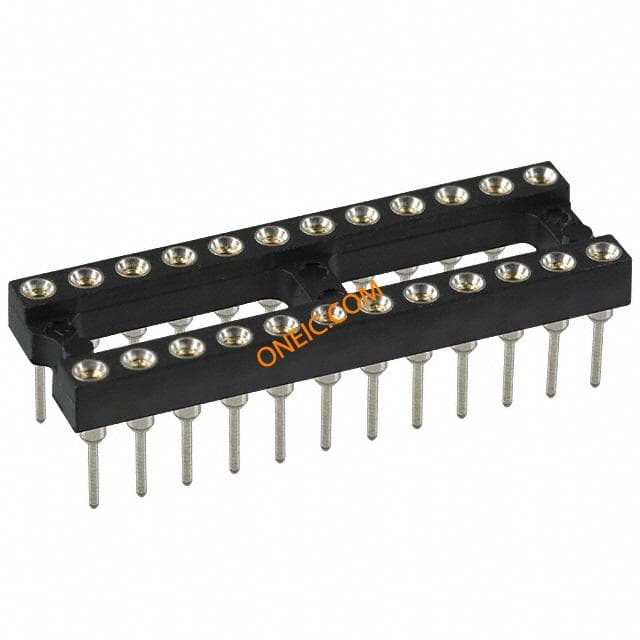

111-43-324-41-001000
