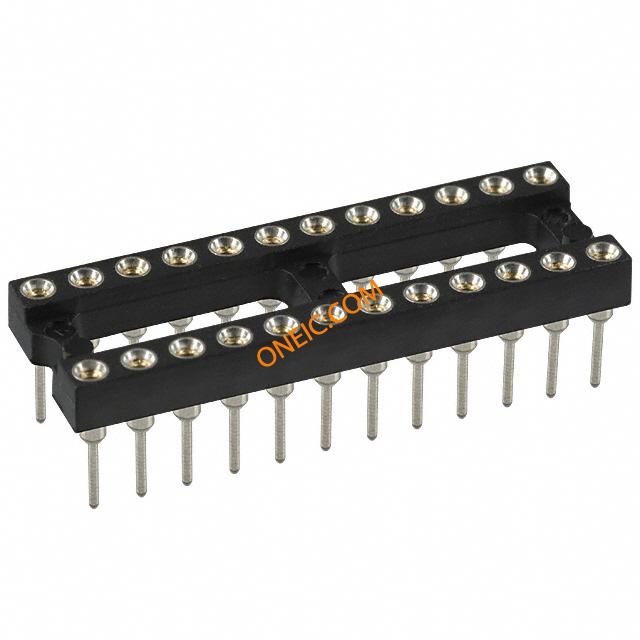

111-43-324-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 24PIN .300 SOLDER TAIL IC & Component Sockets 24P LONG SOLDER TAIL |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 16 | Factory Pack Quantity | 16 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 3 |
| Insulation Resistance | 10000 | Voltage - Input (Min) | 150VDC|100VAC |
Mechanical
| Depth | 10.16 | Pitch | 0.100" (2.54mm) |
| Height | 4.19 | Packaging | Tube |
| Row Spacing | 7.62 | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 30.48 |
| Termination Style | Solder Tail | Length - Lead Wire | 4.3 mm |
| Number of Contacts | 24 | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 24 (2 x 12) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | Open Frame | ||
