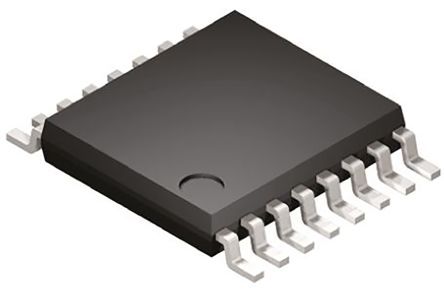

SN74CBTLV3257PW
| Manufacturer | |
| Description | Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin TSSOP Tube Multiplexer Switch ICs Low-Voltage 4-Bit Mltplxr/Demltplxr IC MUX/DEMUX FET 4B 1OF2 16TSSOP IC, FET MUX/DEMUX, SMD Low-Voltage 4-Bit 1-Of-2 FET Multiplexer/Demultiplexer Logic IC TSSOP-16, SN74CBTLV3257, SN74CBTLV3257PW, Texas Instruments Texas Instruments 多路复用器/多路分离器, 四 2:1, 16针 TSSOP封装 |
| Category |
Business
| Product Category | Multiplexer Switch ICs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 90 | Standard Package Name | TSSOP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :74CBTLV3257 | Rad Hardened | No |
Electrical
| Circuit | 4 x 2:1 | Voltage | 2.5 3.3 |
| Input Type | TTL/CMOS | Logic Type | CBTLV |
| Output Type | CMOS | Number of Bits | 8 |
| Voltage Rating | 2.5|3.3 V | Current - Output | :64mA |
| Current - Supply | 10 uA | Number of Inputs | 8 |
| Voltage - Supply | 2.3 V to 3.6 V | Number of Outputs | 4 |
| Number of Channels | 1 | Number of Elements | 1 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 150 |
| Schmitt Trigger Input | No | Voltage Supply Source | Single Supply |
| Switch Function/Rating | SPDT | Voltage - Supply (Min) | 3.6 V |
| Propagation Delay (Max) | 6.1 | Current - Quiescent (Iq) | 10 uA |
| Delay Time - Propagation | 0.25 ns | Current - Quiescent (Max) | 0.01 |
| On-State Resistance (Max) | 27(Typ) Ohm | Current - Output High, Low | 128 mA |
| Max Propagation Delay @ V, Max CL | 0.25@3.3V ns | Propagation Delay tpLH / tpHL (Max) | 0.25 |
Mechanical
| Width | 4.5(Max) | Weight | 0.002183 oz |
| Bandwidth | 200 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5.1(Max) |
| Package Quantity | TSSOP | Number of Positions | 16 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 16-TSSOP |
Product Info
| Type | FET Multiplexer/Demux | Series | SN74CBTLV3257 |
| Process | CMOS | Features | IOFF |
| Function | Multiplexer/Demultiplexer Bus Switch | Software | SCDS040K |
| Base Unit | :74 | Technology | CMOS |
| Configuration | 4 x 2:1 | Pattern Number | Y |
| Functional Diagram | fbd_scds040k.gif | Number of Switches | Single |
| RF Family/Standard | CBTLV | Utilized IC / Part | View |
| Independent Circuits | 1 | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
| Operating Temperature - Junction | 85C | ||
