MAX3232CDR
| Manufacturer | |
| Description | Dual Transmitter/Receiver RS-232 16-Pin SOIC T/R RS-232 Interface IC 3-5.5V Mult-Ch RS232 IC DRVR/RCVR MULTCH RS232 16SOIC IC, DRIVER/ RECEIVER, RS232, 3~5.5V 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver Texas Instruments 250kbps 双线收发器, RS-232接口, 2-TX 2-RX, 3.3 V、5 V, 16针 SOIC封装 |
| Category |
Business
| Other Names | 296-13094-2 | Product Category | RS-232 Interface IC |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
| ESD Protection | 15 | ||
Electrical
| Data Rate | 250 Kbps | Interface | EIA/TIA-232-F|RS-232|V.28 |
| Input Signal | Single-Ended | Signal Types | Single-Ended |
| Power - Input | Single | Data Rate (Max) | Point-to-Point |
| Current - Output | +/- 60 mA | Current - Supply | 1 |
| Driver Circuitry | :Transceiver | Voltage - Supply | 3.3|5 V |
| Power Supply Type | Single | Propagation Delay | :300ns |
| Receiver Hysteresis | 300mV | Current - Input Bias | 1 |
| Current Rating (Max) | Catalog | Logic Voltage - VIL, VIH | 3.3 |
| Voltage - Supply Span (Typ) | Not Required V | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 4(Max) | Weight | 0.004998 oz |
| Packaging | Reel | Case Color | :SOIC |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 10(Max) | Package Quantity | SOIC |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SOIC N | ||
Product Info
| Type | Transceiver | Duplex | Full |
| Series | MAX3232 | DELETED | Compliant |
| Function | Line Transmitter/Receiver | Protocol | RS232 |
| Software | SLLS410K | Base Unit | :3232 |
| Communications | RS-232 | Pattern Number | Y |
| Number of Drivers | :2 | Functional Diagram | alt_slls410k.gif |
| Utilized IC / Part | View | Number of Receivers | 2 |
| Printed Circuit Board | 16 | Number of Transmitters | 2 |
| Number of Drivers/Receivers | 2/2 | Number of Transmitters/Receivers | 1 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | + 70 C |
Documents & Media
Similar Parts

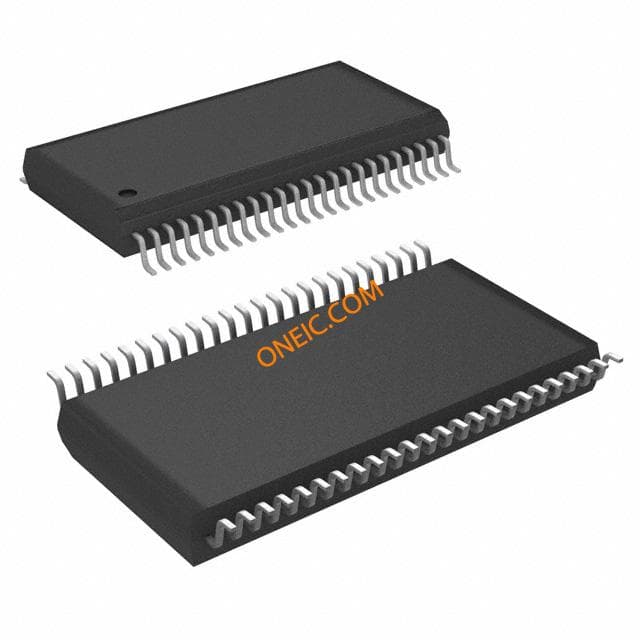

SN74LVTH16245ADGGR
