SN74LVTH16245ADGGR
| Manufacturer | |
| Description | Bus XCVR Dual 16-CH 3-ST 48-Pin TSSOP T/R IC BUS TRANSCVR 16BIT 48TSSOP SN74LVTH16245ADGGR, Dual Bus Transceiver LVT, 16-Bit Non-Inverting 2.7 to 3.6V 48-Pin TSSOP IC, TRANCEIVER, BUS, SMD 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs Logic IC TSSOP-48, SN74LVTH16245, SN74LVTH16245ADGGR, Texas Instruments , 双 16位 非反相 总线收发器, 48针 TSSOP封装 Bus Transceivers Tri-State ABT 16-Bit |
| Category |
Business
| Other Names | 296-1262-2 | Standard Package | Cut Tape, Tape & Reel |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 3.3 | Data Rate | Bi-Directional |
| Input Type | TTL/CMOS | Logic Type | LVT |
| Output Type | 3-State | Number of I/O | 5 V |
| Output Signal | LVTTL | Number of Bits | 16 |
| Voltage Rating | 3.3 V | Current - Output | :64mA |
| Voltage - Output | LVTTL | Voltage - Supply | 2.7 V ~ 3.6 V |
| Propagation Delay | 50pF | Number of Channels | 16 |
| Number of Elements | 2 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 160 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 3.6 V | Input Logic Level - Low | LVTTL |
| Propagation Delay (Max) | 5.5 | Delay Time - Propagation | 5.5 ns |
| Input Logic Level - High | LVTTL | Current - Quiescent (Max) | 5 |
| Current - Output High, Low | 32mA, 64mA | Number of Bits per Element | 8 |
| Current - Output Source/Sink | -32/64 | Max Propagation Delay @ V, Max CL | 2.3 ns @ 3.3 V |
| Propagation Delay tpLH / tpHL (Max) | 3.3 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 6.1mm | Height | 1.15mm |
| Length | 12.5mm | Weight | 0.0001 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :48 | Package / Case | 48TSSOP |
| Package Cooled | TSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 12.6(Max) | Package Quantity | TSSOP |
| Size / Dimension | 12.5 x 6.1 x 1.15mm | Number of Positions | 48 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 48-TSSOP |
Product Info
| Series | :LVTH | Process | BiCMOS |
| Function | Bus Transceiver | Polarity | Non-Inverting |
| Software | SCBS143R | Base Unit | :7416245 |
| Technology | BiCMOS | RF Family/Standard | LVT |
| Utilized IC / Part | View | Printed Circuit Board | 48 |
| Number of Inputs and Type | 1 Low/High | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
MAX3232CDR
texas instruments
Dual Transmitter/Receiver RS-232 16-Pin SOIC T/R RS-232 Interface IC 3-5.5V Mult-Ch RS232 IC DRVR/RCVR MULTCH RS232 16SOIC IC, DRIVER/ RECEIVER, RS232, 3~5.5V 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver Texas Instruments 250kbps 双线收发器, RS-232接口, 2-TX 2-RX, 3.3 V、5 V, 16针 SOIC封装
SN74LVC2G17DBVR
texas instruments
Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SOT-23 T/R IC BUFF DL SCHMIT TRIG SOT23-6 Buffers & Line Drivers Dual Schmitt-Trgr IC, SCHMITT TRIGGER BUFF, 2BIT, 6SOT-23 IC, SCHMITT TRIGGER BUFFER, SOT-23-6, FULL REEL Dual Schmitt-Trigger Buffer Logic IC SOT-23-6, SN74LVC2G17, SN74LVC2G17DBVR, Texas Instruments
SN74LVC2G17DCKR
texas instruments
Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-70 T/R IC BUFF DL SCHMIT TRIG SC70-6 Buffers & Line Drivers Dual Schmitt-Trgr BUFFER, DUAL SCHMITT TRIGGER, SMD IC: digital; Schmitt trigger, buffer; Channels:2; SO70-6 Dual Schmitt-Trigger Buffer Logic IC SC-70-6, SN74LVC2G17, SN74LVC2G17DCKR, Texas Instruments Texas Instruments LVC 系列 双 非反相 施密特触发缓冲器 , 6针 SC-70封装
SN74LVTH16245ADL
texas instruments

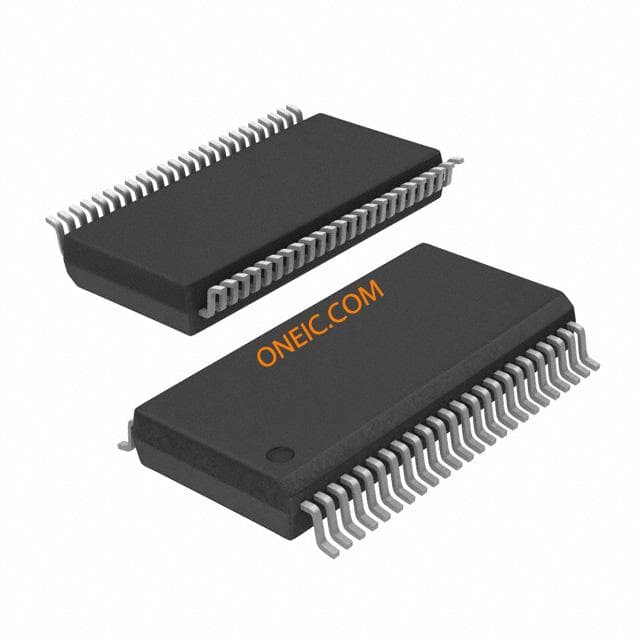

Bus XCVR Dual 16-CH 3-ST 48-Pin SSOP Tube IC BUS TRANSCVR 16BIT 48SSOP SN74LVTH16245ADL, Dual Bus Transceiver LVT, 16-Bit Non-Inverting 2.7 to 3.6V 48-Pin SSOP Bus Transceivers Tri-State ABT 16-Bit 16BIT BUS TRANSCEIVER, 74LVTH16245 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs Logic IC SSOP-48, SN74LVTH16245, SN74LVTH16245ADL, Texas Instruments , 双 16位 非反相 总线收发器, 48针 SSOP封装
