PTH08T231WAS
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.69V to 5.5V 6A 10-Pin DIP Module DC/DC Converters 6A 4.5V-14Vin Cer Cap Adj Pwr Module MODULE PIP 6A ADJ-OUT 10DIP IC, MODULE 6A, ADJ O/P, 10-SMD 6-A, 4.5V to 14V Input, Ceramic Cap Version, Non-Iso, Wide Output, Adjust Power Module w/ TurboTrans |
| Category |
Business
| Product | Non-Isolated / POL | Other Names | 296-21588 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
| Factory Pack Quantity | 36 | Standard Package Name | DIP Module |
Compliance
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Output | 1 | Accuracy | :1.5% |
| Frequency | :300kHz | Isolation | Non-Isolated |
| Efficiency | 95% | Power - Max | 33W |
| Converter Type | :Non Isolated POL | Regulator Type | :Adjustable Positive |
| Voltage Rating | 0.69 to 5.5 V | Current - Output | 6 A |
| Voltage - Supply | :14V | Number of Outputs | 1 |
| Power Supply Type | :Power Module | Power (Watts) - Max | 33W |
| Voltage - Input (Min) | 4.5 V to 14 V | Voltage - Output (Max) | :5.5V |
| DC Voltage - Input (Max) | :14V | Current - Output / Channel | 6 A |
| Voltage - Output 1 (Adj Range) | :5.5V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :14V | Voltage - Output Difference (Typ) @ Distance | :0.69V |
Mechanical
| Depth | 15.75 mm | Width | :15.75mm |
| Height | 7.5 mm | Weight | 0.5 |
| Packaging | Tray | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :10 |
| Package / Case | 10DIP Module | Length - Overall | 18.92 mm |
| Package Quantity | DIP Module | Size / Dimension | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) |
| Number of Positions | 10 | Shell Size - Insert | 7.5 |
Product Info
| Type | Step Down | Series | PTH08T231W |
| Features | Remote On/Off, OCP, OTP, UVLO | Software | SLTS265L |
| Base Unit | :8 | Printed Circuit Board | 10 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | - 40 C to + 85 C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
PTH08T230WAZ
texas instruments

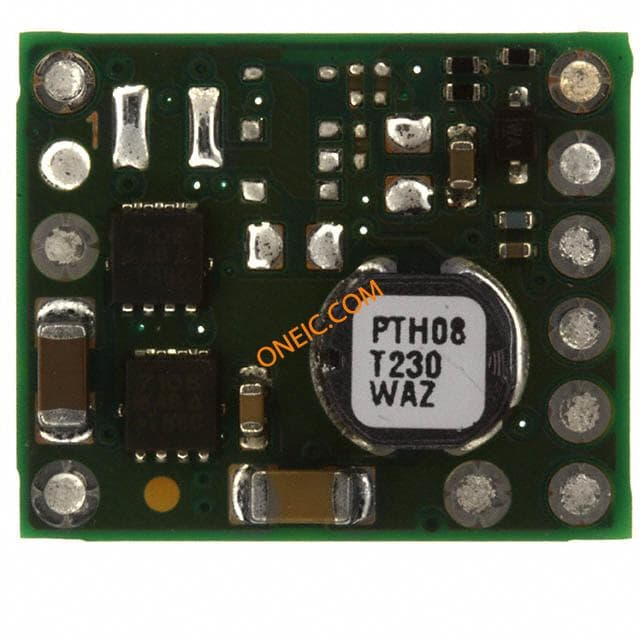

Module DC-DC 1-OUT 0.69V to 5.5V 6A 10-Pin DIP Module MODULE PIP 6A ADJ 10-DIP PTH08T230WAZ, DC-DC Power Supply Module 14V Input,, 10-Pin, DIP Module DC/DC Converters 6A 2.2-5.5V Input Non Isolated POL IC, POWER MODULE, SMD MODULE-10 6-A, 4.5V to 14V Input, Non-Isolated, Wide Output Adjustable Power Module with TurboTrans 直流-直流电源模块, 10针 DIP 模块封装
