PTH08080WAH
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.9V to 5.5V 2.25A 10W 5-Pin DIP Module Tray MODULE PIP .9-5.5V 2.25A HORZ TH PTH08080WAH, DC-DC Power Supply Module 4.5V Input,, 5-Pin, DIP Module DC/DC Converters 2.25A Wide Input/ Out Adj Mini Pwr Mdl POWER MODULE, MINI, 18V WIDE ADJ 2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module 直流-直流电源模块, 2.25A, 300 kHz, 5针 DIP 模块封装 |
| Category |
Business
| Product | Non-Isolated / POL | Product Category | DC/DC Converters |
| Standard Package | Trays, Rail / Tube | Factory Pack Quantity | 90 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | Approval Agency | :- |
Electrical
| Output | 1 | Frequency | :300kHz |
| Isolation | Non-Isolated | Efficiency | 93.5% |
| Power - Max | 12W | Output Power | 10 W |
| Converter Type | :Non Isolated POL | Voltage Rating | 0.9 to 5.5 V |
| Delay Time - ON | Fixed | Current - Output | 2.25 A |
| Voltage - Supply | :12V | Number of Outputs | 1 |
| Power (Watts) - Max | 12.4W | Switching Regulator | Yes |
| Voltage - Input (Min) | 0.9 ~ 5.5 V | Voltage - Output (Max) | :5.5V |
| DC Voltage - Input (Max) | :18V | Current - Output / Channel | 2.25 A |
| Voltage - Output (Min/Fixed) | :0.9V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :18V | ||
Mechanical
| Depth | 12.7 mm | Width | 12.7mm |
| Height | 7.93mm | Length | 15.24mm |
| Weight | 0.0001 | Packaging | Tray |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :5 | Package / Case | 5DIP Module |
| Package Cooled | DIP Module | Length - Overall | 15.24 mm |
| Package Quantity | 90 | TIW TRAY | Size / Dimension | 0.60" L x 0.50" W x 0.32" H (15.2mm x 12.7mm x 8.1mm) |
| Number of Positions | 5 | ||
Product Info
| Type | Step Down | Series | PTH08080W |
| Features | Enable Tracking | Software | SLTS235D |
| Base Unit | :08080 | Pattern Number | Y |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
REG104FA-3.3KTTT
texas instruments
LDO Regulator Pos 3.3V 1A 6-Pin(5+Tab) TO-263 T/R IC REG LDO 3.3V 1A DDPAK REG104FA-3.3KTTT, Low Dropout Voltage Regulator, 1A, 3.3V ±2%, 2.1 to 15Vin, 6-Pin TO-263 LDO Voltage Regulators DMOS 1A LDO Reg IC, VOLTAGE REGULATOR Single Output LDO, 1.0A, Fixed(3.3V), Low Noise, Fast Transient Response Texas Instruments , LDO 调节器, 1A, 3.3 V输出 ±2%, 2.1 → 15 V输入, 5针 TO-263封装
SN65HVD08D
texas instruments
Single Transmitter/Receiver RS-485 8-Pin SOIC Tube IC TXRX RS485 3/5V 8-SOIC RS-485 Interface IC RS485 Wide Band TRANSCEIVER RS-485, 65HVD08, SOIC8 3.3/5-V RS-485 Transceiver Logic IC SOIC-8, SN65HVD08, SN65HVD08D, Texas Instruments Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V、5 V, 8针 SOIC封装
ADS5474IPFP
texas instruments
ADC Single Pipelined 400Msps 14-bit Parallel 80-Pin HTQFP EP Tray Analog to Digital Converters - ADC 14B 400 MSPS Single ADC Pipelined 400Msps 14-bit Parallel/LVDS 80-Pin HTQFP EP Tray IC ADC 14BIT 400MSPS 80-HTQFP ADC, 14BIT, 3.3/5V, 400MSPS, 80HTQFP 14-bit, 400 MSPS Analog-to-Digital Converter with Buffered Input
LP2980IM5-ADJ/NOPB
texas instruments
LDO Regulator Pos 1.23V to 15V 0.05A 5-Pin SOT-23 T/R IC REG LDO ADJ 50MA SOT23-5 LP2980IM5-ADJ/NOPB, Low Dropout Voltage Regulator, Adjustable 0.05A, 1.23 to 15V ±1%, 5-Pin SOT-23 LDO Voltage Regulators MICROPOWER 50 MA ULTRA LDO REGULATOR IC, V REG, LINEAR, ADJ, SMD Voltage stabiliser; LDO, adjustable; 1.2÷15V; SMD; SOT23-5 Micropower 50 mA Ultra Low-Dropout Adjustable Voltage Regulator in SOT-23 LDO voltage regulator 1.23...15 V SOT-23-5, LP2980, LP2980IM5-ADJ/NOPB, Texas Instruments Texas Instruments , LDO 调节器, 可调整的输出, 50mA, 1.23 → 15 V输出 ±1%, 5针 SOT-23封装
TLV2371IDBVT
texas instruments
OP Amp Single GP R-R I/O ±8V/16V 5-Pin SOT-23 T/R IC OPAMP GP 3MHZ RRO SOT23-5 TLV2371IDBVT, Operational Amplifier 3MHz R-R 3 to 15V, 5-Pin SOT-23 Operational Amplifiers - Op Amps 550-uA/Channel 3-MHz RRIO Op Amp OP Amp Single GP R-R I/O ?8V/16V 5-Pin SOT-23 T/R 550-uA/Channel 3-MHz RRIO Op Amp Operational Amplifier Single 3 MHz SOT-23-5, TLV2371, TLV2371IDBVT, Texas Instruments Texas Instruments 运算放大器, 3MHz 轨至轨, 3 → 15 V, 5针 SOT-23

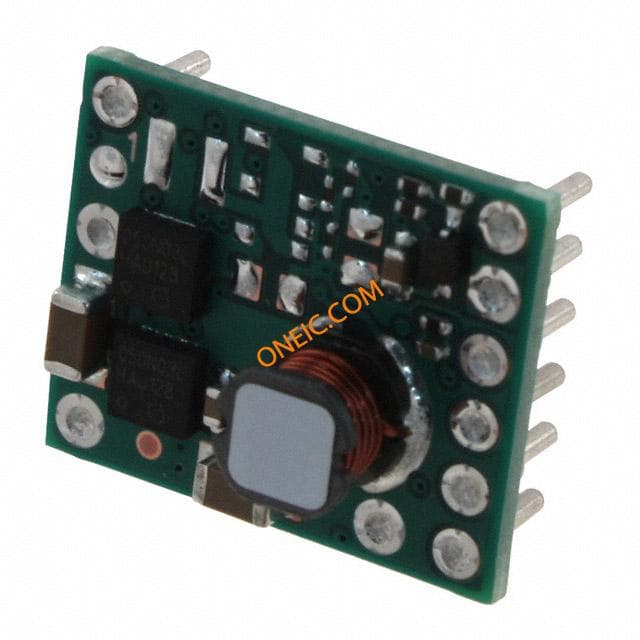

PTH08T230WAD
