PTH08T230WAZ
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.69V to 5.5V 6A 10-Pin DIP Module MODULE PIP 6A ADJ 10-DIP PTH08T230WAZ, DC-DC Power Supply Module 14V Input,, 10-Pin, DIP Module DC/DC Converters 6A 2.2-5.5V Input Non Isolated POL IC, POWER MODULE, SMD MODULE-10 6-A, 4.5V to 14V Input, Non-Isolated, Wide Output Adjustable Power Module with TurboTrans 直流-直流电源模块, 10针 DIP 模块封装 |
| Category |
Business
| Product | Non-Isolated / POL | Other Names | 296-20649 |
| Product Category | DC/DC Converters | Standard Package | Trays, Rail / Tube |
| Factory Pack Quantity | 36 | Standard Package Name | DIP Module |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
| Approval Agency | :- | ||
Electrical
| Output | 1 | Frequency | :300kHz |
| Isolation | Non-Isolated | Efficiency | 95% |
| Power - Max | 33W | Converter Type | :Non Isolated POL |
| Regulator Type | :Adjustable | Voltage Rating | 0.69 to 5.5 V |
| Current - Output | 6 A | Voltage - Supply | :5V |
| Number of Outputs | 1 | Power Supply Type | :Power Module |
| Power (Watts) - Max | 33W | Voltage - Input (Min) | 0.69 ~ 5.5 V |
| Voltage - Output (Max) | :5.5V | DC Voltage - Input (Max) | :14V |
| Current - Output / Channel | 6 A | Voltage - Output (Min/Fixed) | :0.69V |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Continuous Operating (Max) (MCOV) | :14V |
Mechanical
| Depth | 15.75 mm | Width | 15.75mm |
| Height | 7.5mm | Length | 18.92mm |
| Weight | 0.000175 | Packaging | Tray |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10DIP Module |
| Package Cooled | DIP Module | Length - Overall | 18.92 mm |
| Package Quantity | DIP Module | Size / Dimension | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) |
| Number of Positions | 10 | ||
Product Info
| Type | Step Down | Series | PTH08T230W |
| Features | Remote On/Off, OCP, OTP, UVLO | Software | SLTS265L |
| Base Unit | :8 | Printed Circuit Board | 10 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
ADS5474IPFP
texas instruments
ADC Single Pipelined 400Msps 14-bit Parallel 80-Pin HTQFP EP Tray Analog to Digital Converters - ADC 14B 400 MSPS Single ADC Pipelined 400Msps 14-bit Parallel/LVDS 80-Pin HTQFP EP Tray IC ADC 14BIT 400MSPS 80-HTQFP ADC, 14BIT, 3.3/5V, 400MSPS, 80HTQFP 14-bit, 400 MSPS Analog-to-Digital Converter with Buffered Input

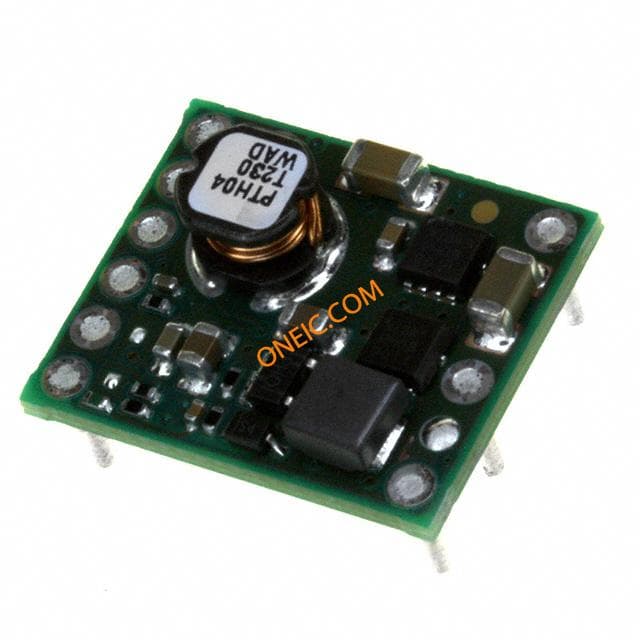

PTH04T230WAD
