MSP430F5529IPNR
| Manufacturer | |
| Description | MCU 16-bit MSP430 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP T/R IC MCU 16BIT 128KB FLASH 80LQFP 16-bit Microcontrollers - MCU 16B Ultra-Low-Pwr MCU,128KB Flash MCU 16-bit MSP430 MSP430 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP T/R IC, 16BIT MCU, MSP430F5, 25MHZ, 80-LQFP MCU, 16BIT, MSP430, 25MHZ, LQFP-80 16-Bit Ultra-Low-Power Microcontroller, 128KB Flash, 8KB RAM, USB, 12Bit ADC, 2 USCIs, 32Bit HW MPY |
| Category |
Business
| Tradename | MSP430 | Other Names | 296-27306-2 |
| Product Category | 16-bit Microcontrollers - MCU | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
| Approval Agency | No | Security Features | N/A |
Electrical
| GPIO | 63 | Speed | 25 MHz |
| Memory | 3 | RAM Size | 10 KB |
| Core Size | 16-Bit | Core Type | MSP430 |
| Frequency | 25 MHz | Interface | I2C/SPI/UART |
| Clock Rate | 25 MHz | Comparator | 12 |
| Delay Time | 3.5 | Memory Size | 8 KB |
| Number of I/O | 63 | Counter/Timers | 4 |
| Number of Bits | 12 | Voltage Rating | 1.8 |
| Watchdog Timer | 1 | Clock Frequency | :25MHz |
| Data Converters | A/D 16x12b | Frequency - Max | 25 MHz |
| Oscillator Type | Internal | Serial Protocol | 2 |
| Voltage - Supply | 2.5|3.3 V | Analog Input:Output | ADC12 - 14ch |
| Non-Volatile Memory | 128 | Program Memory Size | 128 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 16 |
| Voltage - Input (Min) | 3.6 | Voltage - Supply (Min) | 1.8 V |
| Power - Average Forward | 2.5 | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Mechanical
| Width | 12.2(Max) | Weight | 0 |
| Packaging | Tape & Reel (TR) | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :80 | Package / Case | 80LQFP |
| Package Cooled | LQFP | Material Finish | :- |
| Length - Overall | 12.2(Max) | Package Quantity | LQFP |
| Number of Positions | 80 | Shell Size - Insert | 1.45(Max) |
| Number of Cores/Bus Width | 16 Bit | ||
Product Info
| SPI | 4 | Series | MSP430F5529 |
| Features | USB Real-Time Clock Watchdog Temp Sensor Brown Out Reset IrDA | Protocol | 2 |
| Software | SLAS590L | Bootloader | USB |
| Multiplier | 32x32 | On-Chip RAM | 16-chx12-bit |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Special I/O | N/A |
| Architecture | RISC | Connectivity | I²C, IrDA, LIN, SCI, SPI, UART/USART, USB |
| Programmable | Yes | Pattern Number | Y |
| Number of Timers | 4 | Controller Series | :MSP430F5xx |
| Functional Diagram | fbd_slas590l.gif | RF Family/Standard | MSP430 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Printed Circuit Board | 80 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts

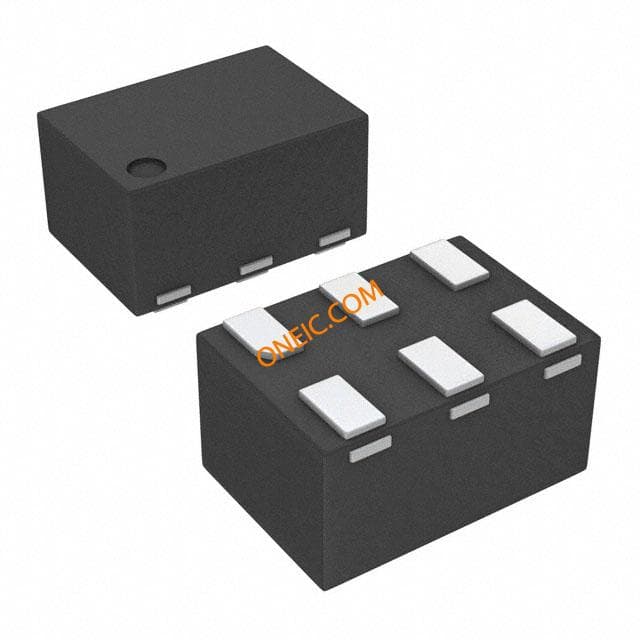

TPD4E004DRYR
