MSP430F1612IPM
| Manufacturer | |
| Description | MCU 16-Bit MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 55KB FLASH 64LQFP MSP430F1612IPM, 16 bit Microcontroller MSP430 8MHz 55, 256kB, B Flash, 5kb RAM, I2C SPI 64-Pin LQFP MSP430 FLASH MCU, SMD, LQFP64, 430 Microcontroller; Flash:55kB; RAM:5kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 55kB Flash, 5120B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，55 kB ROM 闪存, 5 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr |
| Category |
Business
| Other Names | 296-17885 | Standard Package | Trays |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Part Status | ACTIVE |
| Rad Hardened | No | Approval Agency | No |
| Security Features | N/A | ||
Electrical
| GPIO | 48 | Speed | 8 MHz |
| Timer | 2 x 16 bit | Memory | 3 |
| RAM Size | 5 KB | Core Size | 16-Bit |
| Core Type | MSP430 | Frequency | 8 MHz |
| Interface | I2C/JTAG/SPI/UART/USART | Clock Rate | 8 |
| Comparator | Yes | Delay Time | 6 |
| Resolution | 16bit | Memory Size | :5KB |
| Memory Type | :Flash | Number of I/O | 48 |
| Counter/Timers | 2 | Number of Bits | 12 |
| Voltage Rating | 1.8 → 3.6 V | Watchdog Timer | 1 |
| Clock Frequency | :8MHz | Data Converters | A/D 8x12b, D/A 2x12b |
| Frequency - Max | 8MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Serial Protocol | 2 |
| Voltage - Supply | 3.3 V | Resolution (Bits) | 12bit |
| Serial Interfaces | 2 | Number of Channels | 0 |
| Analog Input:Output | ADC12 - 8ch | Non-Volatile Memory | 55 |
| Program Memory Size | 55 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 8 | Voltage - Input (Min) | 1.8 |
| Voltage - Supply (Min) | 3 V | Frequency (Center/Band) | 16bit |
| Power - Average Forward | 1.1 | Number of Bits per Element | 12 |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
Mechanical
| Width | 10.2mm | Height | 1.45mm |
| Length | 10.2mm | Weight | 0.00027 |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :64 |
| Package / Case | 64LQFP | Package Cooled | LQFP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 10.2(Max) |
| Package Quantity | LQFP | Size / Dimension | 10.2 x 10.2 x 1.45mm |
| Number of Positions | 64 | Shell Size - Insert | 1.45(Max) |
| Number of Cores/Bus Width | 16 Bit | Pulse Width Distortion (Max) | 3 x 16 bit, 3/7 x 16 bit |
Product Info
| SPI | 2 | USB | 0 |
| Type | microcontroller | Features | Watchdog Temp Sensor Brown Out Reset |
| Protocol | 1 | Software | SLAS368G |
| Bootloader | UART | Flash Size | :55KB |
| Multiplier | 16x16 | On-Chip RAM | 8-chx12-bit |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Special I/O | N/A |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART |
| Programmable | Yes | Pattern Number | Y |
| Number of Units | 1 | Number of Timers | 2 |
| Controller Series | :MSP430F1xx | Functional Diagram | fbd_slas368g.gif |
| RF Family/Standard | MSP430 | Utilized IC / Part | View |
| DigiKey Programmable | Yes | Printed Circuit Board | 64 |
| Microcontroller Features | :Five Power-Saving Modes, Wake-Up From Standby Mode in less than 6 µs, Three-Channel Internal DMA, 16-Bit RISC Architecture, 12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature, Dual 12-Bit D/A Converters With Synchronization , Serial Communication Interface (USART0), Functions as Asynchronous UART or Synchronous SPI or I2C? Interface, Serial Communication Interface (USART1), Functions as Asynchronous UART or Synchronous SPI Interface, Brownout Detector, Bootstrap Loader | Number of A/D Converters | :8 |
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40 to 85 |
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
TMS320F28335PGFA
texas instruments
MCU 32-Bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin LQFP MCU 32-bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin LQFP Tray IC MCU 32BIT 512KB FLASH 176LQFP TMS320F28335PGFA, 32 bit Microcontroller C28x 150MHz 512kb Flash, 68kb RAM, I2C SPI 176-Pin LQFP IC, 32BIT MCU, C2000 DELFINO, 150MHZ 1.995V LQFP176 MCU,32BIT,512K FLASH,DELFINO,176LQFP Digital Signal Processor; Flash:256kB; 150MHz; Mounting: SMD Delfino Microcontroller Microcontroller 16/32 Bit LQFP-176, TMS320 F28335, TMS320F28335PGFA, Texas Instruments Texas Instruments Delfino 系列 32 bit C28x MCU, 150MHz, 512 kB ROM 闪存, 68 kB RAM, 176针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC Digital Signal Controller

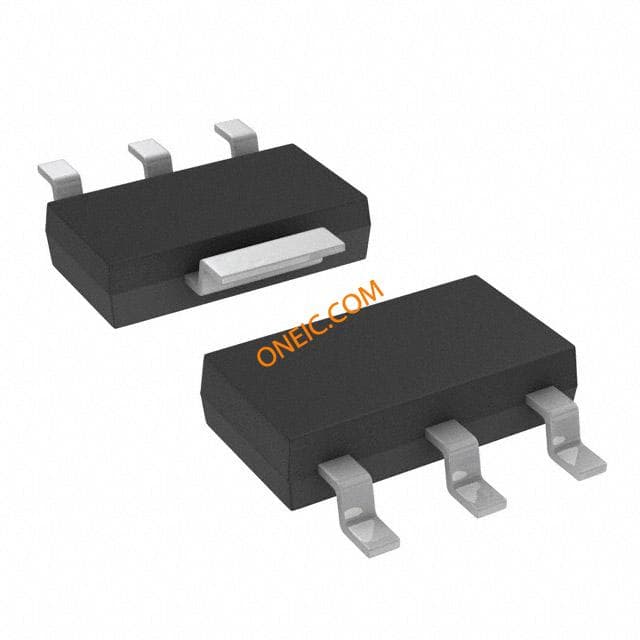

TLV1117-50CDCYR
texas instruments
LDO Regulator Pos 5V 0.8A 4-Pin(3+Tab) SOT-223 T/R IC REG LDO 5V 0.8A SOT223 LDO Voltage Regulators Fixed LDO Volt Reg IC, LDO VOLT REG, 5V, 0.8A, SOT-223-4 Single Output LDO, 800mA, Fixed (5.0V), Internal Current limit, Thermal Overload Protection
MSP430F1612IPM
texas instruments
MCU 16-Bit MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 55KB FLASH 64LQFP MSP430F1612IPM, 16 bit Microcontroller MSP430 8MHz 55, 256kB, B Flash, 5kb RAM, I2C SPI 64-Pin LQFP MSP430 FLASH MCU, SMD, LQFP64, 430 Microcontroller; Flash:55kB; RAM:5kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 55kB Flash, 5120B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，55 kB ROM 闪存, 5 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
SN75240PWR
texas instruments
ESD Suppressor TVS 15KV 8-Pin TSSOP T/R ESD Suppressors Dual USB Port IC DUAL USB PORT TVS 8-TSSOP USB TRANS SUPPRESSOR, SMD, 75240 Dual USB Port Transient Suppressor Logic IC Quad / Unidirectional / TVS TSSOP-8, SN75240, SN75240PWR, Texas Instruments TVS Diode Arrays Dual USB Port
NE556D
texas instruments
Standard Timer Dual 14-Pin SOIC Tube IC OSC TIMER DUAL 14-SOIC NE556D, Timer Dual, 4.5 to 16V, 14-Pin SOIC-14 Timers & Support Products Dual Precision TIMER DUAL PRECISION, SOIC14, 556 Dual Precision Timer IC OSC TIMER DUAL 100KHZ 14-SOIC Timer IC SO-14, NE556, NE556D, Texas Instruments 双 计时器电路, 4.5 → 16 V, 14针 SOIC封装
INA163UA
texas instruments
SP Amp INSTR Amp Single ±18V 14-Pin SOIC Tube IC OPAMP INSTR 800KHZ 14SOIC SP Amp INSTR Amp Single ?18V 14-Pin SOIC Tube Operational amplifier; SO14 Low-Noise Low-Distortion Instrumentation Amplifier Texas Instruments 仪表放大器, 250μV偏置, 800kHz, 100dB CMRR 14针 SOIC封装 Instrumentation Amplifiers Low-Noise Low-Distortion
TUSB3410IVF
texas instruments
USB To Serial Port Controller 32-Pin LQFP Tray USB Interface IC RS232/IrDA Ser-to-USB Converter USB TO SERIAL PORT CONTROLLER IC CTRLR SERIAL-TO-USB 32-LQFP TUSB3410IVF, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP IC, USB TO SERIAL PORT CONTROLLER LQFP32 CONTROLLER, SERIAL-TO-USB, 32LQFP Interface; USB-UART; 3÷3.6VDC; LQFP32 RS232/IrDA Serial-to-USB Converter Texas Instruments 12MBps USB 控制器, 支持USB 2.0, 3.3 V, 32针 LQFP封装

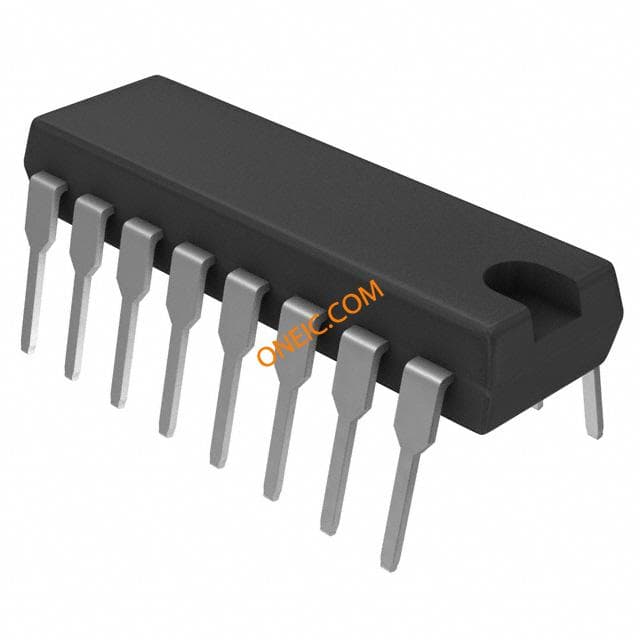

MAX232EIN
