LMZ13608TZ/NOPB
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.8V to 6V 8A 40W 11-Pin TO-PMOD EP Rail IC BUCK SYNC ADJ 8A TO-PMOD-11 Voltage Regulators - Switching Regulators 8A Pwr Mod 8A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage Texas Instruments 降压 直流-直流转换器, 8A, 可调输出, 0.8 至 6 V, 350 kHz, 11针 TO-PMOD封装 Switching Voltage Regulators 8A Pwr Mod |
| Category |
Business
| Tradename | SIMPLE SWITCHER | Other Names | LMZ13608TZNOPB |
| Standard Package | Rail / Tube | Factory Pack Quantity | 32 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | Duty Cycle | 85 |
| Efficiency | 93% | Output Type | 可调整的 |
| Power - Max | 40W | Output Power | 40 W |
| Regulator Type | 是 | Voltage Rating | 0.8 to 6 V |
| Delay Time - ON | Adjustable | Load Regulation | 1 mV/A |
| Current - Output | 8 A | Voltage - Supply | 6 V |
| Number of Outputs | 1 | Power (Watts) - Max | 40W |
| Current Rating (Max) | 8A | Frequency - Switching | 350 kHz |
| Voltage - Input (Min) | 0.8 ~ 6 V | Voltage - Output (Max) | 6 V |
| Voltage Regulation - Load | ±0.2 % | Voltage - Output (Min/Fixed) | 0.8 V |
| Common Mode Transient Immunity (Min) | Automotive | ||
Mechanical
| Depth | 15 mm | Width | 15mm |
| Height | 5.9 mm | Length | 15mm |
| Packaging | Rail | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 11 |
| Package / Case | 11TO-PMOD EP | Length - Overall | 15 mm |
| Package Quantity | TO-PMOD EP | Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) |
| Number of Positions | 11 | Shell Size - Insert | 5.9 |
Product Info
| Type | Step Down | Series | LMZ13608 |
| Features | EMI Tested Enable Tracking | Software | SNVS710G |
| Manufacturer | SIMPLE SWITCHER | Pattern Number | Y |
| Development Kit | LMZ13608EVAL/NOPB | Utilized IC / Part | View |
| Function - Lighting | 降压控制器 | Printed Circuit Board | 11 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 125°C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Similar Parts
PTN04050CAD
texas instruments
Module DC-DC 1-OUT 5V to 15V 2.4A 12W 4-Pin DIP Module REG SW 5-15V 2.4A HORZ T/H PTN04050CAD, DC-DC Power Supply Module 5.5V Input,, 4-Pin, DIP Module DC/DC Converters 12W 3.3/5V In Wide Adj Out Boost Cnvtr IC, ISR 12W, 4050, DIL MODULE-4 12-W, 3.3/5-V Input, Wide Adjust Output Boost Converter 直流-直流电源模块, 2.4A, 600 kHz, 4针 DIP 模块封装
LMZ13608TZ/NOPB
texas instruments
Module DC-DC 1-OUT 0.8V to 6V 8A 40W 11-Pin TO-PMOD EP Rail IC BUCK SYNC ADJ 8A TO-PMOD-11 Voltage Regulators - Switching Regulators 8A Pwr Mod 8A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage Texas Instruments 降压 直流-直流转换器, 8A, 可调输出, 0.8 至 6 V, 350 kHz, 11针 TO-PMOD封装 Switching Voltage Regulators 8A Pwr Mod
LMZ13608EVAL/NOPB
Texas Instruments
Power Management IC Development Tools LMZ13608 EVAL BOARD BOARD EVAL LMZ13608 LMZ13608EVAL/NOPB EVALUATION MODULE EVAL BOARD, LMZ13608, ADJ, 8A, STEP-DOWN REGULATOR Texas Instruments SIMPLE SWITCHER 套件 LMZ13608 电源模块 评估测试板

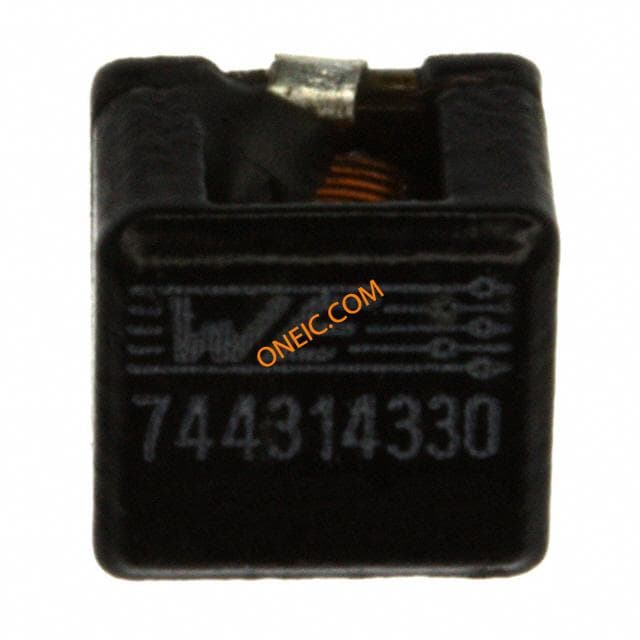

744314330
