744314330
| Manufacturer | |
| Description | 固定インダクタ WE-HCI Inductor 3.3uH 100kHz 9A Power Choke Shielded Wirewound 3.3uH 20% 100KHz 9A 9mOhm DCR T/R INDUCTOR POWER 3.3UH 9.0A SMD Inductor SMD high current WE-HCI 3.3uH Fixed Inductors WE-HCI Inductor 3.3uH 100kHz 9A INDUCTOR, SMD, HIGH CURRENT 3.3UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 3.3 μH ±20%, 9A Idc |
| Category |
Business
| Product | High Current Inductors | Other Names | 732-1160-2 |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Protection Features | Shielded | ||
Electrical
| Core Type | :Shielded | Tolerance | 20% |
| Inductance | 3.3u | Range deg/s | :WURTH ELEKTRONIK - WE-HCI Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 9 mOhm | Current Rating (Max) | 9A |
| DC Resistance (DCR) (Max) | :9000µohm | Frequency - Self Resonant | 65MHz |
| Current - Saturation (Isat) | :8A | Current Saturation - Series | 8A |
| Resistance - Initial (Ri) (Min) | 9mΩ | Current - On State (It (RMS)) (Max) | :9A |
Mechanical
| Depth | 6.9mm | Width | 6.9 mm |
| Height | 4.8mm | Length | 7mm |
| Weight | 0.0016 | Packaging | Tape and Reel |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | WE-Superflux | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | Non Standard |
| Length - Overall | 7.2 | Size / Dimension | 0.272" L x 0.272" W (6.90mm x 6.90mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :7mm x 6.9mm x 4.8mm |
| Height - Seated (Max) | 0.197" (5.00mm) | ||
Product Info
| Type | Power Choke | Series | WE-HCI |
| Technology | Wirewound | ||
Environmental
| Operating Temperature | -40°C ~ 150°C | ||
Documents & Media
Similar Parts
XRP7714EVB
Exar
Power Management IC Development Tools Eval Board for XRP7714 Series Evaluation Board For Quad Channel Digital PWM Step Down Controller BOARD EVAL FOR XRP7714 Development Kit, Power Management With Evaluation Board for XRP7714 XRP7714, PWM CONTROLLER, EVAL BOARD EXAR
XRP7708EVB
Exar
Power Management IC Development Tools Evaluation Board for XRP7708 Series Evaluation Board For Quad-Output Digital PWM Buck Controller Supporting High Current Loads EVAL BOARD FOR XRP7708 Development Kit, Power Management With Evaluation Board for XRP7708 EXAR
XRP7714ILB-F
Exar
Voltage Mode PWM Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru PC DC DC Cntrlr Quad-OUT DPWM DC to DC Controller/Step Down 4.75V to 25V Input 40-Pin TQFN EP Bulk IC REG 5OUT BCK/LINEAR 40TQFN XRP7714ILB-F, PWM Soft Switching Controller, Quad DC/DC Converter, Switching Regulator, 1.5MHz, 40-Pin TQFN Switching Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru PC DIGITAL POWER, CNTRL, 4CH, 40QFN Digital Power Controller TQFN-40, XRP7714ILB-F, Exar , 4输出 PWM 软切换控制器, 直流至直流转换器和开关稳压器, 1500 kHz, 40针 TQFN封装
XRP7708ILB-F
Exar
DC DC Cntrlr Quad-OUT DPWM DC to DC Controller/Step Down 6.5V to 20V Input 40-Pin TQFN EP Bulk IC REG 5OUT BCK/LINEAR 40TQFN XRP7708ILB-F, PWM Soft Switching Controller, Quad DC/DC Converter, Switching Regulator, 8A 1.5MHz, 40-Pin TQFN Switching Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru I2C DIGITAL POWER, CNTRL, 4CH, 40QFN
XRP7713ILB-F
Exar
DC DC Cntrlr Triple-OUT DPWM DC to DC Controller/Synchronous Buck Controller 4.75V to 25V Input 32-Pin TQFN EP Bulk IC REG CTRLR BUCK PWM 32-TQFN XRP7713ILB-F, PWM Soft Switching Controller, Triple DC/DC Converter, Switching Regulator, 1.5MHz, 32-Pin TQFN Switching Controllers 3Ch Dgtl Pwr Cntrllr w/LDO prog thru PC DC DC Cntrlr Triple-OUT PWM DC to DC Controller/Synchronous Buck Controller 4.75V to 25V Input Bulk Digital Power Controller TQFN-40, XRP7713ILB-F, Exar
XRP7713EVB-DEMO-1-KIT
Exar
Evaluation Board For Three Channel Digital PWM Step Down Controller Power Management IC Development Tools XRP7713EVB-DEMO-1-KI
XRP7704ILB-F
Exar
DC DC Cntrlr Quad-OUT DPWM DC to DC Controller/Step Down 6.5V to 20V Input 40-Pin TQFN EP IC REG CTRLR BUCK PWM 40-TQFN XRP7704ILB-F, PWM Soft Switching Controller, Quad DC/DC Converter, Switching Regulator, 1.5MHz, 40-Pin TQFN Switching Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru I2C IC, BUCK, CNTRL, 4CH, DPWM, 40QFN Digital Power Controller TQFN-40, XRP7704ILB-F, Exar

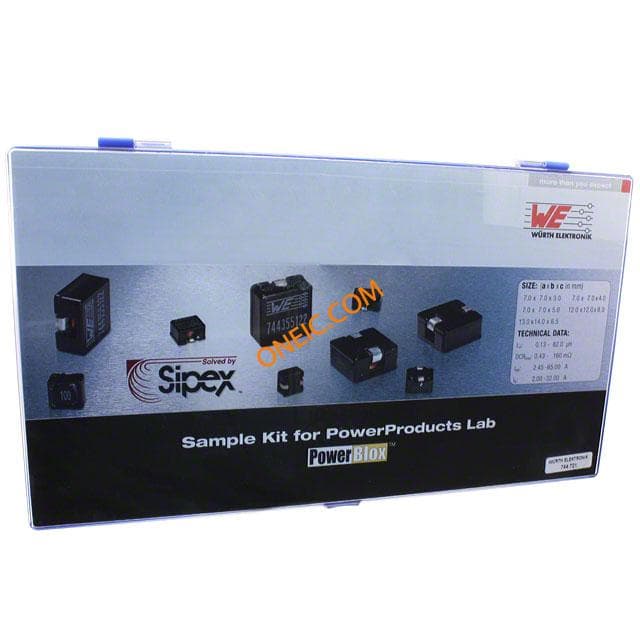

744721
Wurth Electronics Inc
KIT CHOKES FOR EXAR
XRP7704ILB-F
MAXLINEAR
XRP7704 Series 20 V 1.5 MHz Quad-Output Digital PWM Buck Controller - TQFN-40
XRP7708EVB
MAXLINEAR
Evaluation Board for XRP7708 Series
XRP7713EVB-DEMO-1-KIT
MAXLINEAR
Evaluation Kit for the XRP7713 Three Channel Digital PWM Step Down Controller

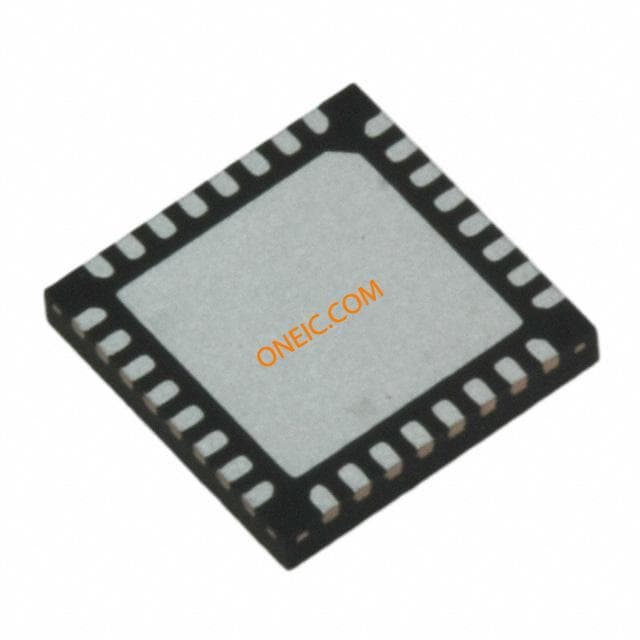

XRP7713ILB-F
