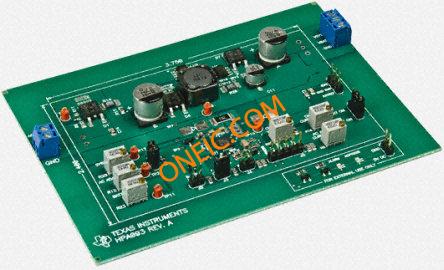

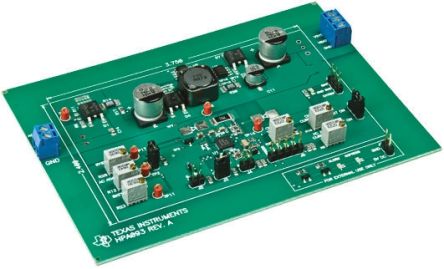

BQ24703EVM
| Manufacturer | |
| Description | Evaluation Module For BQ24703 Power Management IC Development Tools BQ24703 Eval Mod EVALUATION MODULE FOR BQ24703 BQ24703 Evaluation Module BQ24703EVM EVALUATION MODULE BQ24703, BATTERY CHARGER, EVAL MODULE Texas Instruments BQ24703 电池充电器 评估测试板 |
| Category |
Business
| Product | Power Management Modules | Other Names | 296-18396 |
| Product Category | Power Management IC Development Tools | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 84733020 | ||
Electrical
| Voltage Rating | 7.5 V to 28 V | Number of Elements | :BQ24703 |
Mechanical
| Weight | 1 | Size / Dimension | 120.7 mm x 86.4 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | No | Features | :Support for Single-chemistry and Multi-chemistry Applications |
| Kit Type | :Power Management - Battery | Kit Contents | :Board |
| Main Purpose | Power Management, Battery Charger | Tool Type Feature | BQ24703 |
| Primary Attributes | 3 or 4 Cells- Li-Ion, 5~10 Cells NiMH, Up to 3A, 7.5 ~ 28 V In | RF Family/Standard | BQ24703 |
| Utilized IC / Part | BQ24703 | Chipset Manufacturer | :Texas Instruments |
| Secondary Attributes | Status LEDs | Application Specifics | :Battery Charger |
Documents & Media
Similar Parts

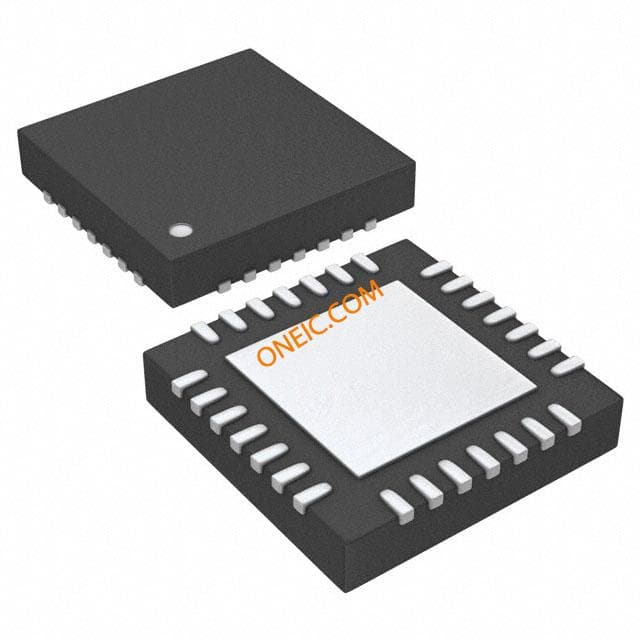

BQ24703RHDR
