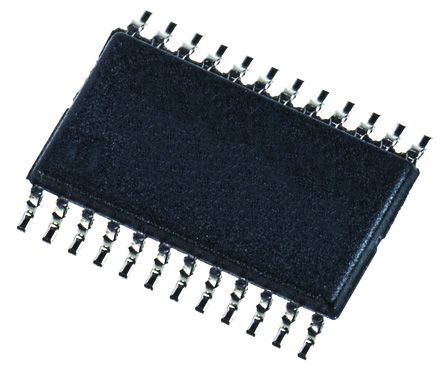

BQ24703PW
| Manufacturer | |
| Description | Charge Controller Li-Ion 7.1mA 2.5V 24-Pin TSSOP Tube IC BATTERY CHARGER CTLR 24-TSSOP BQ24703PW, Battery Charge Controller, Lithium-Ion, 9.4mA, 24-Pin TSSOP Battery Management Multi-Chemistry Charge Controller BATT CHARGE CONTROLLER, SMD, 24703 Multi-Chemistry Battery Charge Controller and System Power Selector Texas Instruments 锂离子 电池充电控制器, 9.4mA最大输出, 24针 TSSOP封装 |
| Category |
Business
| Other Names | 296-15113-5 | Product Category | Battery Management |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :24703 | Rad Hardened | No |
Electrical
| Voltage Rating | 2.5(Max) V | Number of Cells | :1 |
| Current - Output | 7.1 mA | Voltage - Supply | 4.5 to 28 V |
| Power Supply Type | :Battery monitor | Regulator Topology | Switchmode Buck |
| Charge Current - Max | :2A | Current - Output (Typ) | 5mA |
| Voltage - Output (Max) | 5.013 V | Voltage - Supply (Min) | 4.5 V |
| Current - Supply (Main IC) | >2 | Voltage - Output (Min/Fixed) | 4.985 V |
Mechanical
| Width | 4.5mm | Height | 1.2mm |
| Length | 7.9mm | Weight | 0.003157 oz |
| Packaging | Tube | Case Color | :TSSOP |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24TSSOP |
| Package Cooled | TSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 7.9(Max) | Package Quantity | TSSOP |
| Size / Dimension | 7.9 x 4.5 x 1.2mm | Number of Positions | 24 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 24-TSSOP |
Product Info
| Type | Charge Controller | Series | BQ24703 |
| Features | Power Path | Function | Charge Management |
| Software | SLUS553E | Base Unit | :24703 |
| Product Type | Charge Management | Battery Series | :Charge Controller |
| Battery Chemistry | Li-Ion | Control Interface | Standalone |
| Utilized IC / Part | View | Printed Circuit Board | 24 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 85 °C |
Documents & Media
