C0805C181J5GACTU
| Manufacturer | |
| Description | Cap Ceramic 180pF 50V C0G 5% SMD 0805 125°C Paper T/R Multilayer Ceramic Capacitors MLCC - SMD/SMT 50volts 180pF C0G 5% CAP CER 180PF 50V 5% NP0 0805 Cap Ceramic 180pF 50V C0G 5% SMD 0805 125C Paper T/R CAPACITOR, 0805, 180PF, 50V, NP0 CAPACITOR CERAMIC 180PF 50V, C0G, 5%, 0805 Capacitor;Ceramic;Cap;180.pF;Tol5%;SMT;Vol-Rtg50V;C0G;CutTape Capacitor;Ceramic;Cap;180.pF;Tol+5%;SMT;Vol-Rtg50V;C0G;TR Capacitor 180 pF 50 VDC 0805, C0805C181J5GAC7025, KEMET |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Low ESR MLCCs | Other Names | 399-1126-1 |
| Part # Aliases | C0805C181J5GAC7800 | Product Category | Multilayer Ceramic Capacitors MLCC - SMD/SMT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 4000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85322100 |
| Rad Hardened | No | ||
Electrical
| Voltage | 50 Vdc | Tolerance | 5 % |
| Capacitance | 180 pF | Range deg/s | :KEMET - C Series |
| Voltage Rating | 50 V | Capacitance - Input | :0805 [2012 Metric] |
| Capacitance @ Vr, F | :C0G / NP0 | Dissipation Factor (DF) | 0.5 |

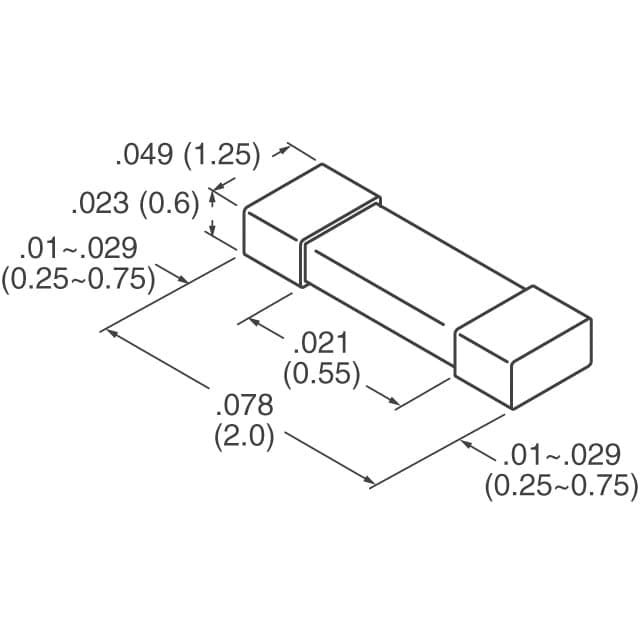

Mechanical
| Depth | 1.25 mm | Width | 1.2 mm |
| Height | 0.78 mm | Length | :2.0mm |
| Weight | 0.000012 | Diameter | Not Required mm |
| Packaging | Reel | Termination | SMT |
| Construction | Flat | Lead Spacing | 0.75 mm |
| Mounting Type | Surface Mount | Terminal Type | :Surface Mount (SMD, SMT) |
| Mounting Style | Surface Mount | Number of Pins | :2 |
| Package / Case | 0805 | Material Finish | :MSL 1 - Unlimited |
| Thickness (Max) | 0.035" (0.88mm) | Length - Overall | 2 mm |
| Material - Blade | Ceramic | Size / Dimension | 1.2 mm W x 2 mm L x 0.78 mm H |
| Termination Style | SMD/SMT | Dielectric Material | C0G |
| Shell Size - Insert | 0805(2012mm) | Mounting Hole Diameter | 0805 |
| Wire Gauge or Range - AWG | Not Required | ||
Product Info
| Type | C0G Dielectric, Commercial | Class | 1 |
| Series | C0805C | DELETED | Compliant |
| Technology | Standard | Applications | General Purpose |
| Failure Rate | Not Required | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | C0G (NP0) |
| Temperature Coefficient (Typ) | :30ppm/°C | ||
