点击放大查看
1950217P002
| Manufacturer | |
| Description | CONN 2MM HM RCPT 110POS R/A GOLD |
| Category |
Business
| Standard Package | 12 | ||
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 0.079" (2.00mm) | Packaging | Bulk |
| Termination | Press-Fit | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Number of Rows | 5 | Connector Style | B 22 |
| Connector Usage | CompactPCI J2/J5 | Number of Positions | 110 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Features | Upper Shield | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
338108-2
te connectivity / amp
Connector Accessories Ground Return Receptacle Shield Hard Metric Connectors Z-PACK SHLD.LOWER A 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) CONN HARDWARE LOWERSHIELD 110POS Connector Accessories Ground Return Receptacle Shield Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD Z-PACK SHLD.LOWER A

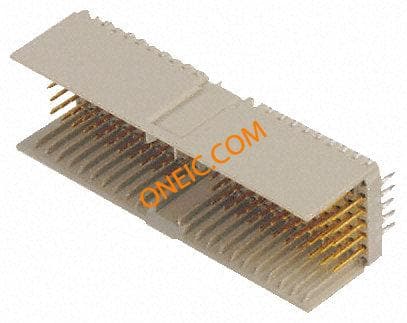

188835-1
