352131-1
| Manufacturer | |
| Description | Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 110POS R/A GOLD Z-PACK Hard B Plug Right Angle 110P Hard Metric Connectors 2MM 110P CARD EXT Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/BRAMH.110P. Z-PACK/B RAMH.110P. |
| Category |
Business
| Product Category | Hard Metric Connectors | Standard Package | Trays |
| Factory Pack Quantity | 12 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Data Rate (Max) | ≤1 | ||
Mechanical
| Depth | 26.8 mm | Pitch | 2 mm |
| Height | 15.4 mm | Length | 44 |
| Packaging | Tray | Shielding | 否 |
| Shield Type | No | Termination | Solder |
| Contact Type | Without | Housing Color | Gray |
| Mounting Type | Through Hole | Connector Type | Type B, 22 Column |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 5 | Connector Style | B 22 |
| Connector Usage | Backplane | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Front Connection | Level 1 |
| Housing Material | Polyester GF | Length - Overall | 44.00 [1.732] |
| Package Quantity | 12 | Panel Mount Type | 直角 |
| Make Before Break | No | Termination Style | Press Fit |
| Mating Orientation | Without | Number of Contacts | 110 |
| Termination Finish | Tin-Lead over Nickel | Number of Positions | 110 |
| Length - Post (Mating) | 3.30 [0.130] | Contact Finish - Mating | 第 1 级 |
| Contact Layout, Typical | ACTION PIN, Signal | Contact Length - Mating | 3.3 |
| Termination Post Length | 3.3 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | Warning: Card extender male connectors should not be used with cable connectors | Type | Hard Metric |
| Gender | Plug | Series | Z-PACK |
| Card Type | 无 | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | No |
| Number of Columns | 22 | Number of Positions Loaded | All |
Documents & Media
Similar Parts
352268-1
te connectivity / amp
Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS STR GOLD Hard Metric Connectors 110P VPACK HEADER 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal,
5352152-4
te connectivity / amp
Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 110POS TYPE B R/A Hard Metric Connectors REC B/110P R/A B-PLANE HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B22 RAF 110P

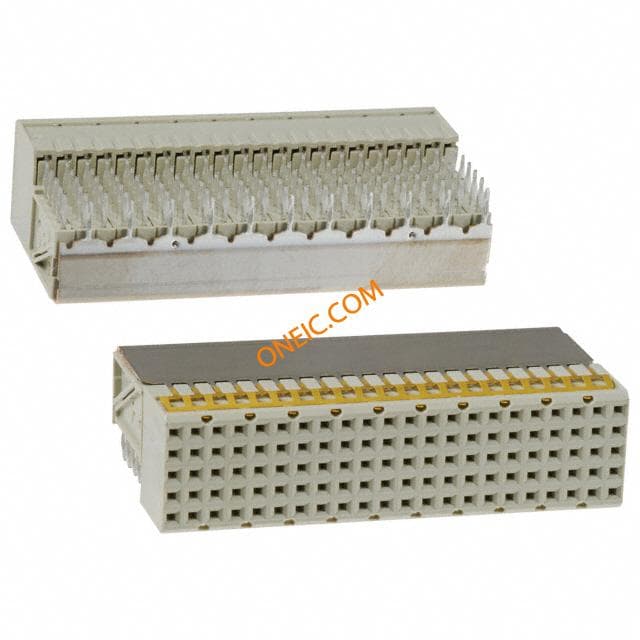

1950217P002
