352712-1
| Manufacturer | |
| Description | Hard Metric Connectors PLUG 154 POS VERT TYPE B 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| Category |
Business
| Standard Pack | 11 | Product Category | Hard Metric Connectors |
| Standard Package | 11 | Factory Pack Quantity | 11 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Shield Type | Yes | Termination | Press-Fit |
| Contact Type | Feed through | Housing Color | Gray |
| Mounting Type | Vertical | Connector Type | Type B, 22 Column |
| Contact Finish | Gold (30) over Nickel (50) | Mounting Style | Through Hole |
| Number of Rows | 5+2 | Connector Style | B 22 |
| Connector Usage | CompactPCI P2/P5 | Contact Material | Phosphor Bronze |
| Front Connection | Level 1 | Housing Material | Polyester GF |
| Length - Overall | 44.00 [1.732] | Termination Style | Press Fit |
| Mating Orientation | Without | Number of Contacts | 110 |
| Termination Finish | Tin-Lead over Nickel | Number of Positions | 154 |
| Length - Post (Mating) | 14.50 [0.571] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | Used with type AB shroud. | Gender | Plug |
| Series | Z-Pack | Features | Alignment Strip |
| Composition | P2/P5 | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | Yes |
| Selectively Loaded | Yes | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
352129-7
te connectivity / amp
Connector Accessories 154 POS 2mm Hard Metric Spacer Polyester Gray 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK/B SPACER 1,9 Hard Metric Connectors Z-PACK/B SPACER 1,9 Z-PACK/B SPACER 1,9 Search Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine,

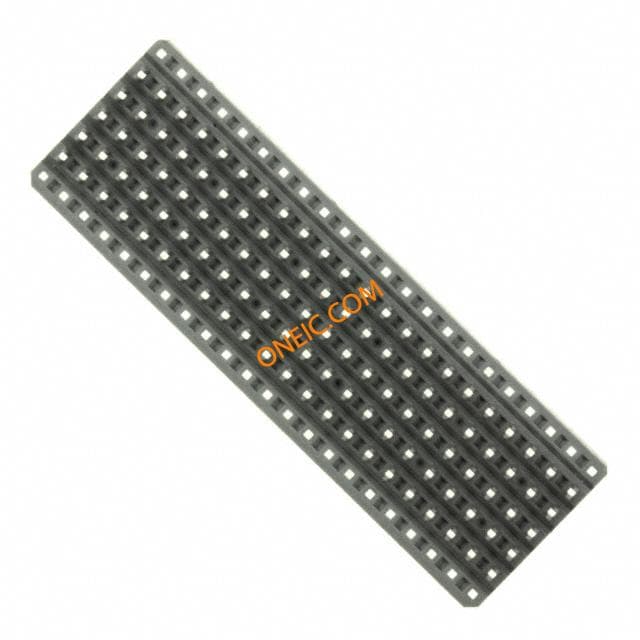

352129-5
