104353-4
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 8POS R/A DUAL Headers & Wire Housings 08 MODII HDR DRRA B/ 500 08 MODII HDR DRRA B/A W/HLDWN 08 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors, |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 25 |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Approved Countries | CSA LR7189, UL E28476 |
| Protection Features | Without | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Rated AC | 30 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| 2nd Connector | Without | Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Gold Over Nickel | Mounting Style | 标准 |
| Number of Rows | 2 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Mounting Feature | 固定焊尾 | Package Quantity | 25 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 8 | Termination Finish | Matte Tin-Lead |
| Number of Positions | 8 | Length - Post (Mating) | 5.84 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 3.05 mm | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Note | 参考客户图纸以确定板保持尾部的数量和位置。其他尾部长度也可用，请咨询 AMP Incorporated。 | Type | Unshrouded Header |
| Gender | HDR | Series | AMPMODU MOD II |
| Key Type | 否 | Product Type | Headers |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
146762-1
te connectivity / amp
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 8POS DL VERT .100 T/H Headers & Wire Housings 08MODII RCPT VERT DR 08 MODII RCPT VERT DR 08 MODII RCPT VERT DR Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
87133-9
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 8POS DL .100 Headers & Wire Housings CONN HOUSING 8 POS DUAL ROW Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 LOCKING CLIP HSG DR .100CL
5-102694-2
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 8P 26-22AWG Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 ampmodu mt assy dr sn
534998-4
te connectivity / amp
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 VERT DUAL Headers & Wire Housings 8P MOD 1V VRT 3360 Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 8Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, ReceptacleAssembly;GlassFilledPolyester;PhosphorBronze;Vertical;8;2A 08 MODIV VRT DR CE 100/125
6-5535512-3
te connectivity / amp

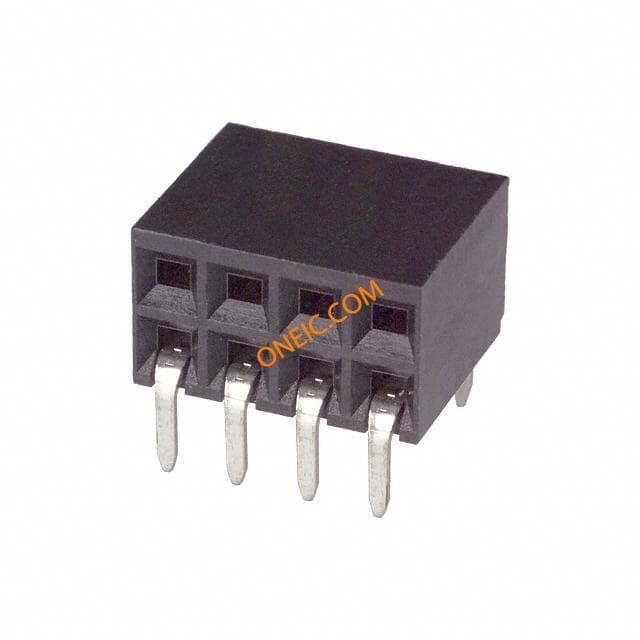

Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 RT/A DUAL Headers & Wire Housings RECEPT 8POS .100 R/A DUAL Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod II8 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 08 MODII HORZ DR CE EESS .100
