104345-2
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS VERT 15AU Headers & Wire Housings 04 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A W/HD |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Approved Countries | CSA LR7189, UL E28476 |
| Protection Features | Without | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Rated AC | 30 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Row Spacing | 2.54 mm |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| 2nd Connector | Without | Contact Shape | Square |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Gold Over Nickel | Mounting Style | 标准 |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Mounting Feature | 固定焊尾 | Package Quantity | 500 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 4 | Termination Finish | Matte Tin-Lead |
| Number of Positions | 4 | Length - Post (Mating) | 5.84 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 3.05 mm | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Note | 参考客户图纸以确定板保持尾部的数量和位置。其他尾部长度也可用，请咨询 AMP Incorporated。 | Type | Unshrouded Header |
| Gender | HDR | Series | AMPMODU MOD II |
| Key Type | 否 | Product Type | Headers |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
87499-7
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 SINGLE 2.54mm,housing,4W,Mod IV,SR,snap in Headers & Wire Housings NON-PLRZD HSG 4 SNGL .405 width Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 4WAY Housing,Connector;Crimp-Snap;Single;4;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 4 Contact DesignStamped Single row / straight / without polarization AMPMODU MOD IV, 87499-7, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 4 路 直 母 PCB 壳体 04 MODIV HSG SR MRKD .100CL
103975-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 4POS .100 15AU Headers & Wire Housings 5X4 RCPT SR PLAIN .100CL 5X4 MTE RCPT SR PLAIN .100CL 5X4 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
534237-2
te connectivity / amp
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT AU Headers & Wire Housings 04 MODII VRT SR CE 4480 Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 4Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODII VRT SR CE 100/115
103978-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 4POS .100 GOLD Headers & Wire Housings 5X4 MTE RCPT SR PLAIN .100CL Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X4 MTE RCPT SR PLAIN .100CL
103957-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 4P Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,5X4MTERCPTSRLATCH.100CL 5X4 MTE RCPT SR LATCH .100CL
103974-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 4POS .100 TIN Headers & Wire Housings 5X4 RCPT SR PLAIN .100CL 5X4 MTE RCPT SR PLAIN .100CL 5X4 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
147738-3
te connectivity / amp
Conn Socket Strip SKT 4 POS 2.54mm Solder ST SMD Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 4POS VERT SMD GOLD
535541-2
te connectivity / amp

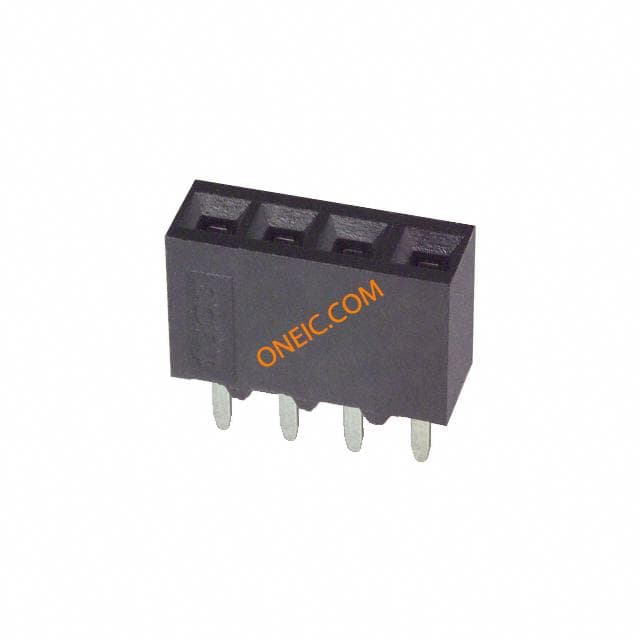

Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT AU Headers & Wire Housings 04 MODIV VRT SR CE 100/115 .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IVNumber of Positions = 4Number of Rows = SingleLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODIV VRT SR CE 100/115
