828-AG11D-LF
| Manufacturer | |
| Description | IC & Component Sockets DIP .6CL 28P S/M OFRM AU/SN Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:Socket Style = StandardThrough Hole Contact Termination Type2.54 mm CenterlineRow-to-Row Spacing = 15.24 mm28 Positions SOCKET IC, DIL, 0.6", 28WAY |
| Category |
Business
| Product | DIP / SIP Sockets | Part # Aliases | 2-1571586-9 |
| Product Category | IC & Component Sockets | Factory Pack Quantity | 17 |
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Capacitance | :1pF | Contact Resistance | :10mohm |
| Dielectric Strength | :1kV | Current Rating (Max) | :3A |
| Insulation Resistance | :5000Mohm | Connector - Voltage Input | :DIP |
Mechanical
| Pitch | 2.54 mm | Width | :17.78mm |
| Length | :35.36mm | Weight | 0.001 |
| Material | :beryllium copper contacts | Base Type | DIP |
| Lead Spacing | :2.54mm | Pitch - Post | :15.24mm |
| Release Force | :63gf | Shell Plating | :Tin / Lead |
| Connector Type | :DIP | Contact Finish | Gold |
| Mounting Style | Through Hole | Insertion Force | :134gf |
| Contact Material | :Beryllium Copper | Number of Contacts | 28 |
| Contact Termination | :Through Hole Vertical | Mounting Hole Diameter | :0.89mm |
| 1st Connector Mounting Type | :PC Board | ||
Product Info
| Series | :800 | ||
Environmental
| Operating Temperature | :125°C | ||
Similar Parts
828-AG11D-LF
TE Connectivity / AMP
IC & Component Sockets DIP .6CL 28P S/M OFRM AU/SN Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:Socket Style = StandardThrough Hole Contact Termination Type2.54 mm CenterlineRow-to-Row Spacing = 15.24 mm28 Positions SOCKET IC, DIL, 0.6", 28WAY
110-99-628-41-001000
Mill-Max
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 Socket; DIP;28Pins;Low Profile;Open;Solder Tail;0.6In.;Beryllium Copper;Tin/Lead IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE Socket,DIP;28Pins;LowProfile;Open;SolderTail;0.6In.;BerylliumCopper;Tin/Lead

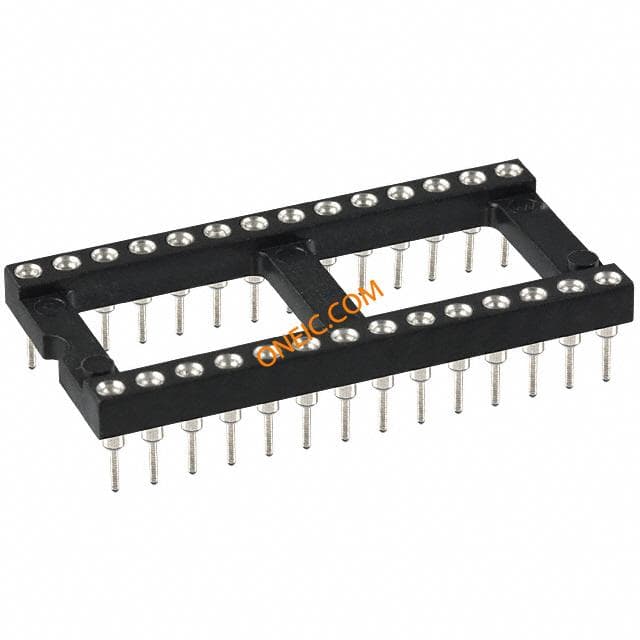

110-44-628-41-001000
Mill-Max
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE DIPSOCKETSOLDERTAIL

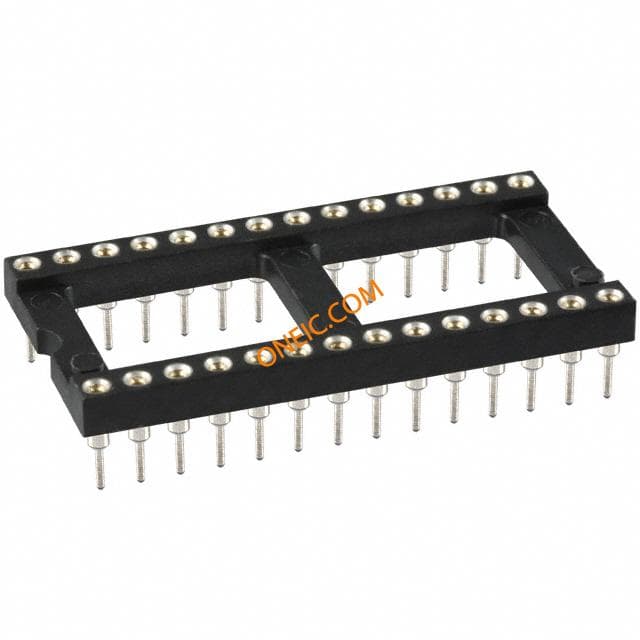

110-43-628-41-001000
