110-44-628-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE DIPSOCKETSOLDERTAIL |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 14 | Factory Pack Quantity | 14 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 17.7 | Pitch | 0.100" (2.54mm) |
| Height | 4.19 | Weight | 0.002 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 15.24 mm | Termination | Solder |
| Pitch - Post | :15.24mm | Mounting Type | Through Hole |
| Connector Type | :DIP Socket | Contact Finish | Tin Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | DIP | Contact Material | Beryllium Copper Alloy |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 35.5 |
| Termination Style | Solder Tail | Number of Contacts | 28 |
| Contact Termination | :Solder | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 200µin (5.08µm) | Number of Positions or Pins (Grid) | 28 (2 x 14) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Series | :110 | Features | Open Frame |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Similar Parts
142-90-628-00-594000
Mill-Max
Headers & Wire Housings 28P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS
142-90-628-00-593000
Mill-Max
Headers & Wire Housings 28P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS
142-90-628-00-592000
Mill-Max
Headers & Wire Housings 28P DIP HDR OPEN FRAME .335L Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS
151-10-628-00-009000
Mill-Max
Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS Headers & Wire Housings 28P DIP HDR OPEN FRAME .252L
151-10-628-00-010000
Mill-Max
Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS Headers & Wire Housings 28P DIP HDR OPEN FRAME .331L
110-99-628-41-001000
Mill-Max
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 Socket; DIP;28Pins;Low Profile;Open;Solder Tail;0.6In.;Beryllium Copper;Tin/Lead IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE Socket,DIP;28Pins;LowProfile;Open;SolderTail;0.6In.;BerylliumCopper;Tin/Lead

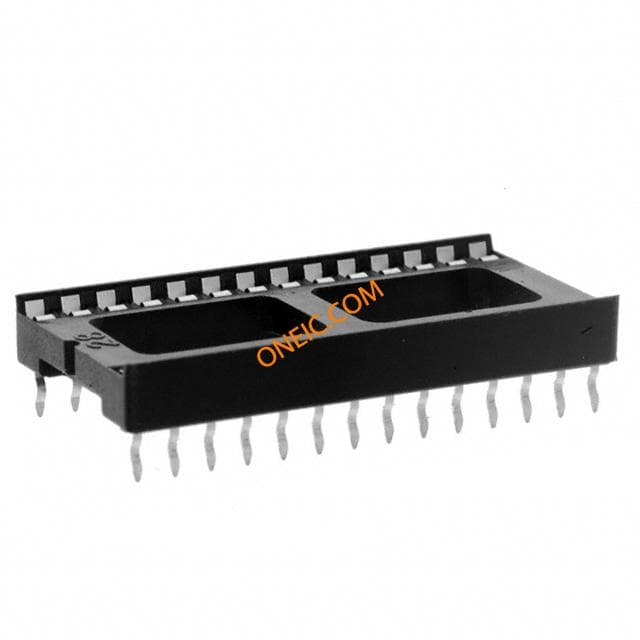

4828-6004-CP
