796636-8
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Pluggable Terminal Blocks 5.08MM VERT HDR 8P TERM BLOCK HDR 8POS VERT 5.08MM Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Conn;TermBlk;PCB;Header;SnglLvl;ClosedEnd;Sldr;8Pole;5.08mmPitch;Buchanan Header Shrouded 8 Position 5.08 mm Pitch Euro Style Terminal Block 8POS 5.08MM CE VRT HDR,TRM BLK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant By Exemption | Approval Agency | UL,ELV,RoHS |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Number of Poles | 8Poles |
| Voltage - Supply | 300V | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Green | Depth | 8.35 mm |
| Pitch | 5.08 mm | Height | 12 mm |
| End Style | 带有 | Packaging | Bulk |
| Body Color | 绿色 | Lead Style | Right Angle |
| Termination | Solder | Length - Pin | 3.5 mm [ .138 in ] |
| 2nd Connector | 否 | Housing Color | Green |
| Mounting Type | Vertical | Connector Type | 头 |
| Contact Finish | Tin | Flange Feature | 是 |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | Length - Overall | 42.46 mm |
| Package Quantity | 100 | Primary Material | PCB |
| Pin Hole Diameter | 5.08mm | Header Orientation | Vertical |
| Number of Contacts | 8 | Number of Positions | 8 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Thread/Screw/Hole Size | 不带 |
| Number of Poles per Deck | 8 | 2nd Connector Mounting Feature | Vertical |
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Features | ClosedEnd |
| Manufacturer | Buchanan | Number of Levels | 1 |
| Interconnect System | 不带 | Positions Per Level | 8 |
| Side-by-Side Stacking | 否 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
284041-8
te connectivity / amp
Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 8P VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 8POS 5.08MM Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOK VERTICAL PLUG ST

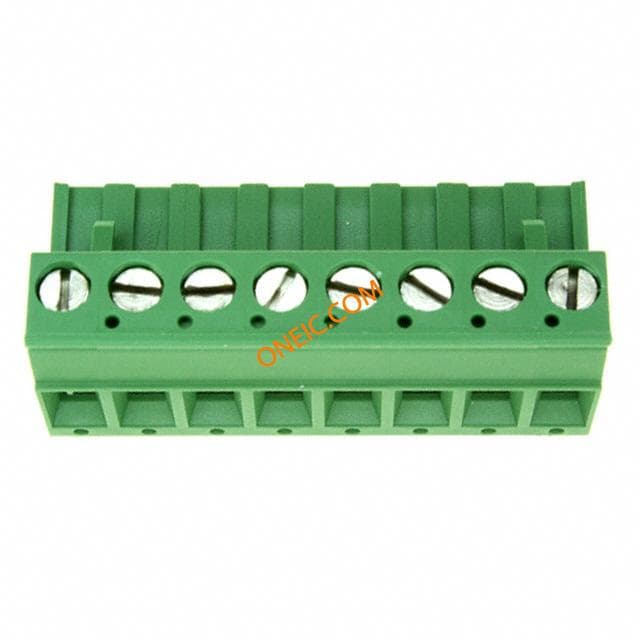

796634-8
