796634-8
| Manufacturer | |
| Description | Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 8P Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PLUG, TERMINAL BLOCK, 5.08MM, 8WAY Conn;TermBlk;Plug;Screw;8;5.08mm;RightAngle;30-12AWG;Green;15A;300V;M3 Pluggable terminal block; plug; female; 5.08mm; ways:8; 15A; green TE Connectivity 8 路 印刷电路板接线端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 8 POS 5.08MM R/A PLUG,TRM BLK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Rad Hardened | No | Approval Agency | ULRecognized |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V ac | Number of Poles | 8Poles |
| Current Rating (Max) | 15A | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Green | Depth | 18.4 mm |
| Pitch | 5.08 mm | Height | 15.5 mm |
| Length | 40.64mm | Weight | 0.02 |
| Material | Nylon | Packaging | Bulk |
| Shrouding | No | Lead Style | Side |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Pitch - Post | 5.08mm | Body Material | polyamide |
| Housing Color | Green | Mounting Type | Cable Mount |
| Connector Type | :Eurostyle Terminal Block | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | 1 |
| Plug Wire Entry | 180° | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | Length - Overall | 40.64 mm |
| Primary Material | PCB | Size / Dimension | see |
| Connector - Cable | plug | Pin Hole Diameter | 0.2(5.08)In.(mm) |
| Color - Connectors | green | Number of Contacts | 8 |
| Number of Positions | 8 | Terminal Block Type | Plug, Female Sockets |
| Wire Entry Location | Front | Wire Gauge or Range - AWG | 30-12 |
| Wire Gauge or Range - mm2 | 12 | 1st Connector Mounting Type | :Cable |
| Number of Positions/Bay/Row | 8 | ||
Product Info
| Type | Terminal Block | Level | SingleLevel |
| Gender | F | Series | :- |
| Features | Retention Latches (Non-Wire Side) | Manufacturer | Buchanan |
| Number of Units | 1 | Number of Levels | 1 |
| Positions Per Level | 8 | ||
Environmental
| Operating Temperature | -40...105°C | ||
Documents & Media
Similar Parts
282825-8
te connectivity / amp

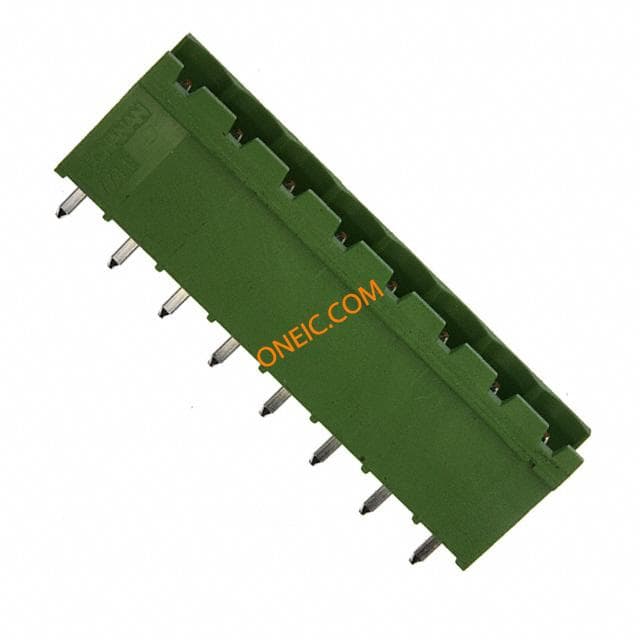

Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 8POS VERT 5.08MM TE Connectivity 282825 Series 5.08mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 15A Pluggable Terminal Blocks 8 POS SHROUDED HDR Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 8WVERTICALHEADER TE Connectivity Buchanan 系列 5.08mm节距 8路 (1排) 直 印刷电路板接线端子块, 焊接端接, 15A , 通孔 TERMI-BLOK HEADER,ASSY90 8P.5,
282815-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks TERMI-BLOK HEADER ASSM90 8P.5 Terminal Block Connectors TERM BLOCK HDR 8POS R/A 5.08MM TERMI-BLOK HEADER,ASSY90 8P.5 TERMI-BLOK HEADER,ASSY90 8P.5 Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end
1776167-8
te connectivity / amp
Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks 8P TERMI-BLOK HDR HIGH TEMP Terminal Block Connectors TERM BLOCK HDR 16POS R/A 5.08MM 8P TERMI-BLOK HDR,HIGH TEMP
796638-8
te connectivity / amp

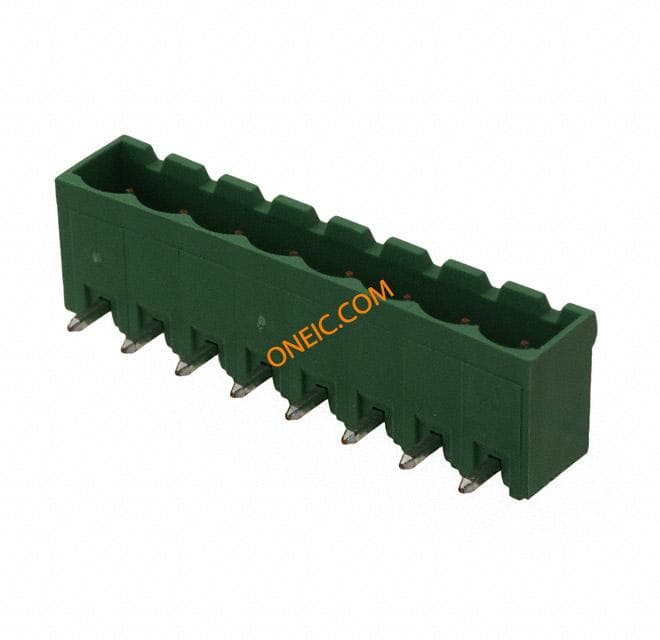

Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Termi-Block Header 8 way pcb r/a Pluggable Terminal Blocks 5.08MM RA HDR 8P Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end HEADER, 5.08MM, 8WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;Buchanan Pluggable terminal block; socket; male; angled 90°; 5.08mm; 15A TE Connectivity Buchanan 系列 5.08mm节距 8路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 8POS 5.08MM CE R/A HDR,TRM BLK
