770602-5
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS CST-100 5 way socket housing,2.54mm pitch Headers & Wire Housings 05P CST 100 HSG Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 5WAY Connector;Nylon;Receptacle;5;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:5; polarized, w/o terminals; 2.54mm TE Connectivity CST-100 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 壳体 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - CST-100 Series | Voltage Rating | 250V AC |
| Switch Function | Unlatched | Current Rating (Max) | 5/Contact A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 12.95mm |
| Pitch | 2.54 mm | Width | 6.6mm |
| Height | 6.6 mm | Length | 13.21mm |
| Weight | 0.0004 | Material | :Natural, Nylon UL94V-0 |
| Packaging | Bulk | Shrouding | No |
| Cable Exit | 180° | Termination | :Crimp |
| Contact Type | Female Socket | Pitch - Post | 2.54mm |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight° |
| Connector Type | Crimp | Contact Finish | 2.54 [0.100] |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 13.21 mm | Mounting Feature | Without |
| Package Quantity | 500 | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Wire Termination | Crimp |
| Connector - Cable | plug | Pin Hole Diameter | 0.1" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| Center Contact Finish | 0.1 | 1st Connector Mounting Type | :PCB |
| 1st Connector Mounting Feature | 1x5 | ||
Product Info
| Spg | 1 | Note | Accepts Contact Part No. 770601-1. |
| Type | Housing | Gender | RCP |
| Series | CST-100 | Manufacturer | AMP |
| Product Type | CST-100 Housings | Adapter Series | CST-100 |
| Number of Units | 1 | Application Specifics | Wire-to-Board |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
58517-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PCRMPR III W/DIES TOOL CRIMP W/DIE CST-100 Crimping tool for CST 100 connector Procrimp Tool & Die CRIMP TOOL, CST100 Crimper;Ratchet;26-22AWG;CST100Contact;58517-2Die;PRO-CRIMPERIII Crimping tool, 58517-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 CST 100 Contacts 压接工具 , 适用于26 → 22 AWG 线规格
770602-5
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS CST-100 5 way socket housing,2.54mm pitch Headers & Wire Housings 05P CST 100 HSG Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 5WAY Connector;Nylon;Receptacle;5;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:5; polarized, w/o terminals; 2.54mm TE Connectivity CST-100 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 壳体
770601-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100
640453-5
te connectivity / amp

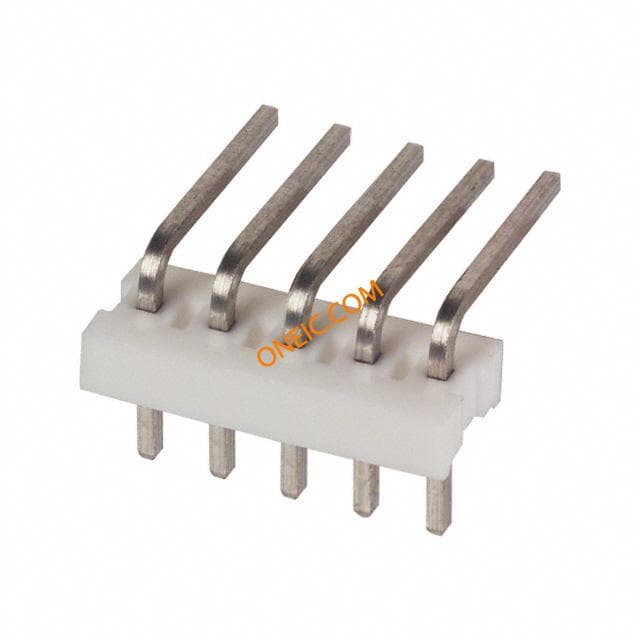

Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings FLAT HEADER 5P Right Angle Post tin Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.1", 5WAY Header;MTA-100;5;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 05P MTA100 HDR ASSY SQ R/A
