7-103168-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Headers & Wire Housings SHROUDED VER DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM 50 MODII HDR DRST SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 32 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
| Leadfree Defin | Wave solder capable to 240°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Switch Function | Detent Windows | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0 | Packaging | Tray |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | No |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Vertical |
| Connector Type | Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Number of Rows | 2 |
| Package / Case | 4-Sided | Locking Feature | Detent Windows |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 1.68 [0.066] |
| Mounting Feature | Without | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 50 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 50 |
| Length - Post (Mating) | 8.08 mm | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Length - Mating | 8.08 [0.318] | Surface Mount Land Size | No |
| Termination Post Length | 3.18 [0.125] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Manufacturer | AMP |
| Product Type | Header | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Temperature | No | Operating Temperature | -55 â +105 |
Documents & Media
Similar Parts
2-534206-5
te connectivity / amp
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings REC 2X25P VRT T/H 540 .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 50Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,50MODIIVRTDRCE100/115 50 MODII VRT DR CE 100/115
2-146762-6
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 50POS DL VERT .100 T/H 50 MODII RCPT VERT DR
2-534998-5
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Headers & Wire Housings 50P RECEPTACLE Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 50Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 50 MODIV VRT DR CE 100/125
7-102398-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD AMPMODUMTReceptacleAssembly,50Pos. AMPMODU MT Receptacle Assembly; 50 Pos.; Dual Row; IDC; 26-22AWG; .100 CL Headers & Wire Housings HSG DUAL 50P 26-22 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONN RECEPTACLE 50POS, 2.54MM AMPMODUMTReceptacleAssembly,50Pos.,DualRow,IDC,26-22AWG,.100CL 50 AMPMODU MT ASSY DR.100CL SN
2-102398-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 26-22 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 50Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 AMPMODU MT ASSY DR .100CL
2-86177-1
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 50POS DL CRIMP Headers & Wire Housings 50 MODIV HSG COMP DR .100CL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 MODIV HSG COMP DR .100CL
4-87631-1
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings 50 HSG COMP DR .1POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM 50 MODIV HSG COMP DR .100 POL
7-102393-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 30-26 .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 AMPMODU MT ASSY DR.100CL SN
2-147424-5
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 50POS VERT .100 T/H Headers & Wire Housings 50 MODII VRT DR CE .100 X .100 Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 50Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 50 MODII VRT DR CE .100 X .100
7-102448-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 22-20 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2 Receptacle;MT(IDC);26to22AWG;InsulationDisplacementCrimp(IDC);50Pos. 50 AMPMODU MT ASSY DR.100CL SN
4-87456-0
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings HSG 2X25C F/H Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;50;250VAC;3A;750V 50 MODIV HSG DR MRKD .100CL
2-535598-1
te connectivity / amp
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 50POS .100 DUAL T/H AU Headers & Wire Housings 50 MODIV VRT DR CE RCPT ASSY 50 MODIV VRT DR CE RCPT ASSY 50 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
2-102448-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 22-20 50 AMPMODU MT ASSY DR .100CL
7-534998-5
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Headers & Wire Housings REC 2X25P VRT T/H Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 50Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 50WAY, 2ROW 50 MODIV VRT DR CE 100/125
3-87456-9
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 DUAL ROW Headers & Wire Housings 50 MODIV HSG COMP DR Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM 50 MODIV HSG COMP DR .100CL

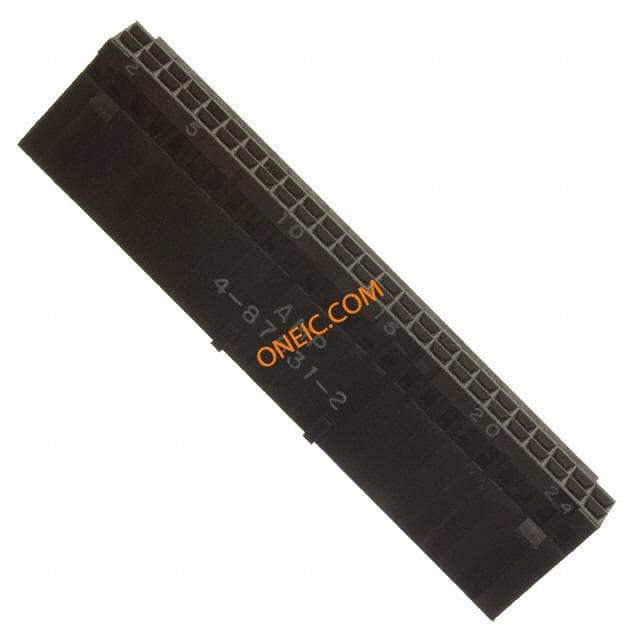

4-87631-2
