7-102448-3
| Manufacturer | |
| Description | Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 22-20 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2 Receptacle;MT(IDC);26to22AWG;InsulationDisplacementCrimp(IDC);50Pos. 50 AMPMODU MT ASSY DR.100CL SN |
| Category |
Business
| Tradename | AMPMODU | Other Names | A33419 |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
Electrical
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0 | Packaging | Tray |
| Wire Type | Discrete or Ribbon Cable | Wire Gauge | 20-22 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | Wire | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Primary Material | InterconnectSystem | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 50 | Number of Positions | 50 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMPMODU MT | Features | Closed End |
| Manufacturer | MTSeries | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
7-103168-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Headers & Wire Housings SHROUDED VER DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM 50 MODII HDR DRST SHRD .100CL
2-102699-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 50POS DUAL VERT GOLD Headers & Wire Housings 50 MODII HDR DRST SH 320 .100 inch AMPMODU Headers Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD A/PIN

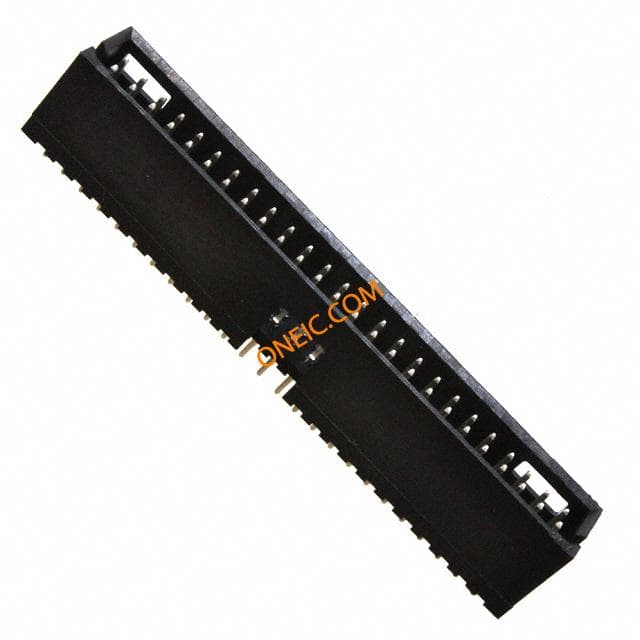

7-87589-1
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 50POS PCB TIN Headers & Wire Housings 50P HDR DRST SHRD Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL
7-102617-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 50P HDR DRRA SHRD .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 15AU Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD LF
2-87589-1
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 50POS PCB TIN Headers & Wire Housings SHROUDED VER DUAL 50 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL
7-102618-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 15AU Headers & Wire Housings HDR VERT 50P 15AU Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL
2-103166-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 30AU Headers & Wire Housings SHROUDED RA DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD .100CL

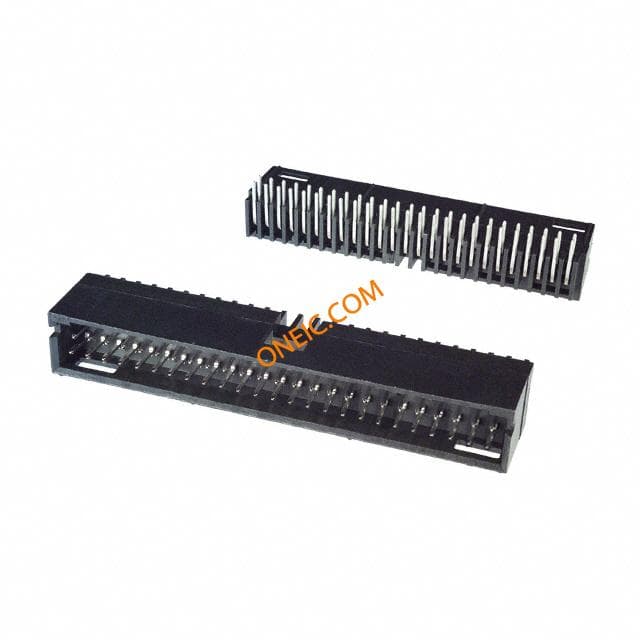

7-87579-2
